MAF/USA Flare x Female Pipe in brass. 16 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: Adapter
Temperature Rating: -65 to 250 deg F
Configuration: MAF/USA Flare x Female Pipe
Product line: MAF/USA FLARE
Stocked part numbers: 16
Part numbers & options
Part #
Size
Pack quantities

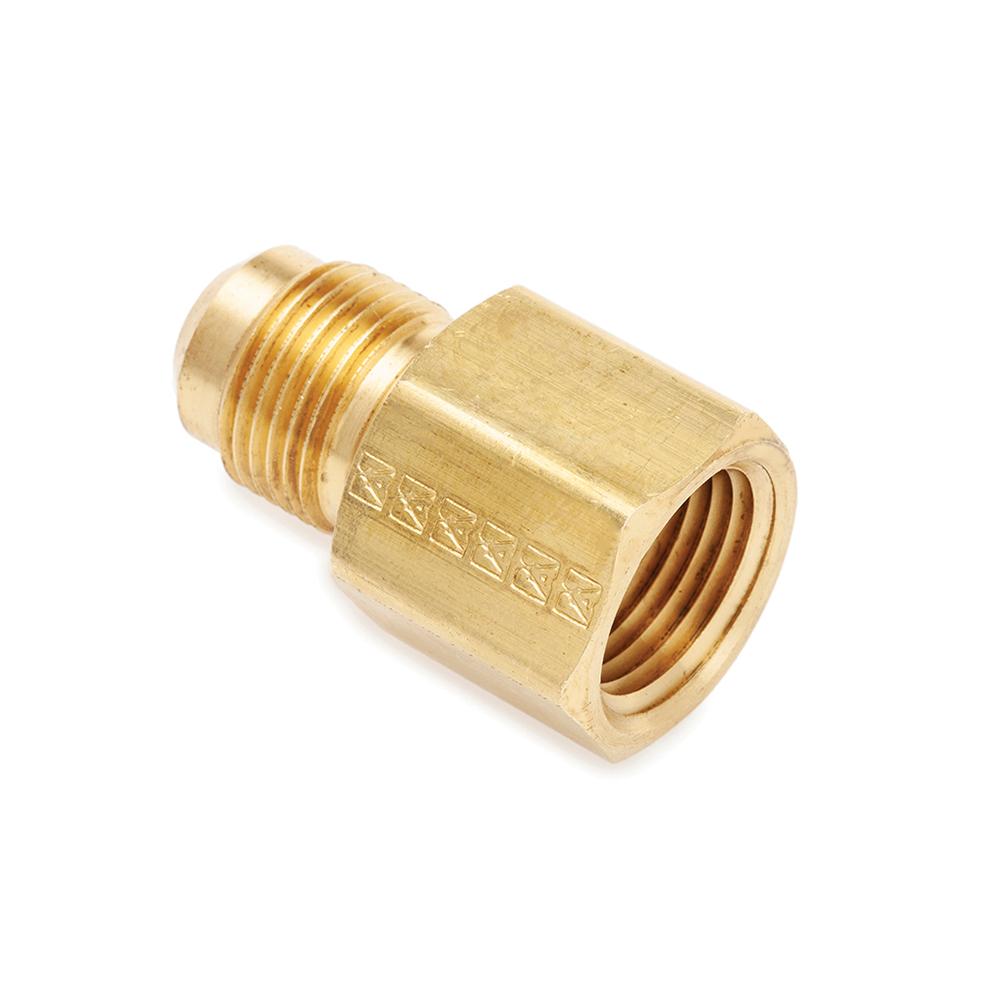

246X3
3/16" SAE 45 deg Male Flared × 1/8" Female NPT
Box 1000
246X4
1/4" SAE 45 deg Male Flared × 1/8" Female NPT
Box 1000
246X5
5/16" SAE 45 deg Male Flared × 1/8" Female NPT
—
246X6
3/8" SAE 45 deg Male Flared × 1/4" Female NPT
Box 450
246X6X2
3/8" SAE 45 deg Male Flared × 1/8" Female NPT
—
246X6X6
3/8" SAE 45 deg Male Flared × 3/8" Female NPT
—
246X6X8
3/8" SAE 45 deg Male Flared × 1/2" Female NPT
—
246X8
1/2" SAE 45 deg Male Flared × 3/8" Female NPT
—
246X8X8
1/2" SAE 45 deg Male Flared × 1/2" Female NPT
Box 150
46-108
5/8" SAE 45 deg Male Flared × 1/2" FPT
Box 175
46-44
1/4" SAE 45 deg Male Flared × 1/4" FPT
—
46-54
5/16" SAE 45 deg Male Flared × 1/4" FPT
—
46-64
3/8" SAE 45 deg Male Flared × 1/4" FPT
Box 575
46-66
3/8" SAE 45 deg Male Flared × 3/8" FPT
—
46-86
1/2" SAE 45 deg Male Flared × 3/8" FPT
Box 300

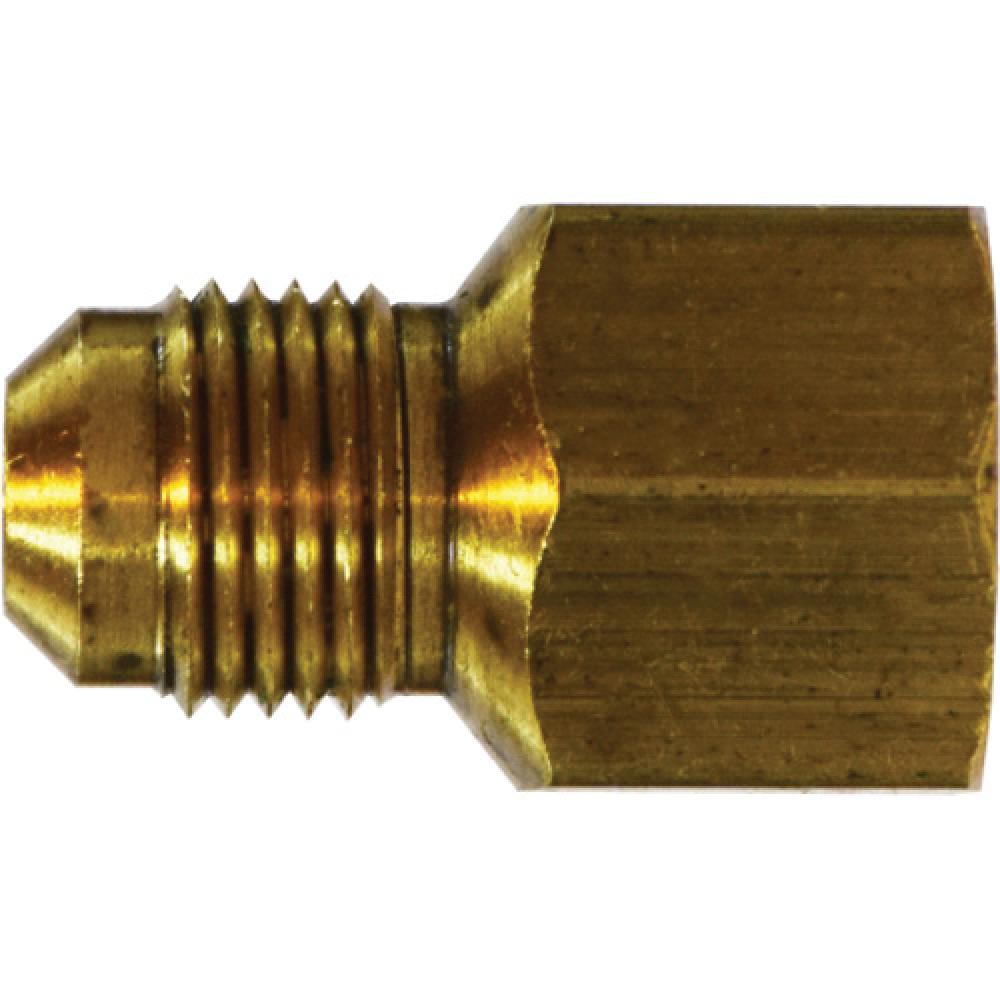

46-88
1/2" SAE 45 deg Male Flared × 1/2" FPT
Box 225
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
