NAB Male Elbows in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Connection Type: Tube|MNPT
Pressure Rating: 150 psi
Temperature Rating: -40 to 200 deg F
Configuration: NAB Male Elbows
Product line: MAF AIR BRAKE
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities

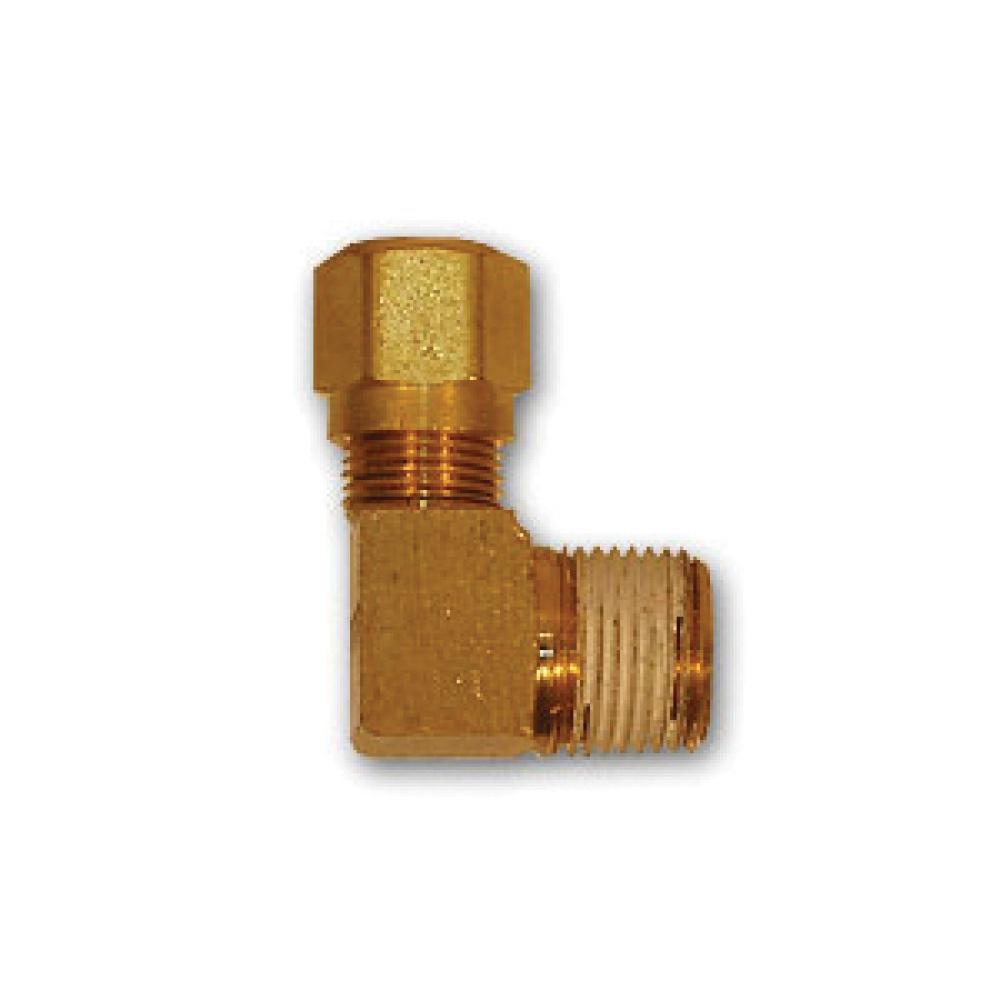

NT69-106VS
5/8" Tube OD × 3/8" Male NPT
—
NT69-1212VS
3/4" Tube OD × 3/4" Male NPT
—
NT69-32VS
3/16" Tube OD × 1/8" Male NPT
—
NT69-62VS
3/8" Tube OD × 1/8" Male NPT
Box 350
NT69-66VS
3/8" Tube OD × 3/8" Male NPT
Box 225
NT69-68VS
3/8" Tube OD × 1/2" Male NPT
—
NT69-88VS
1/2" Tube OD × 1/2" Male NPT
—

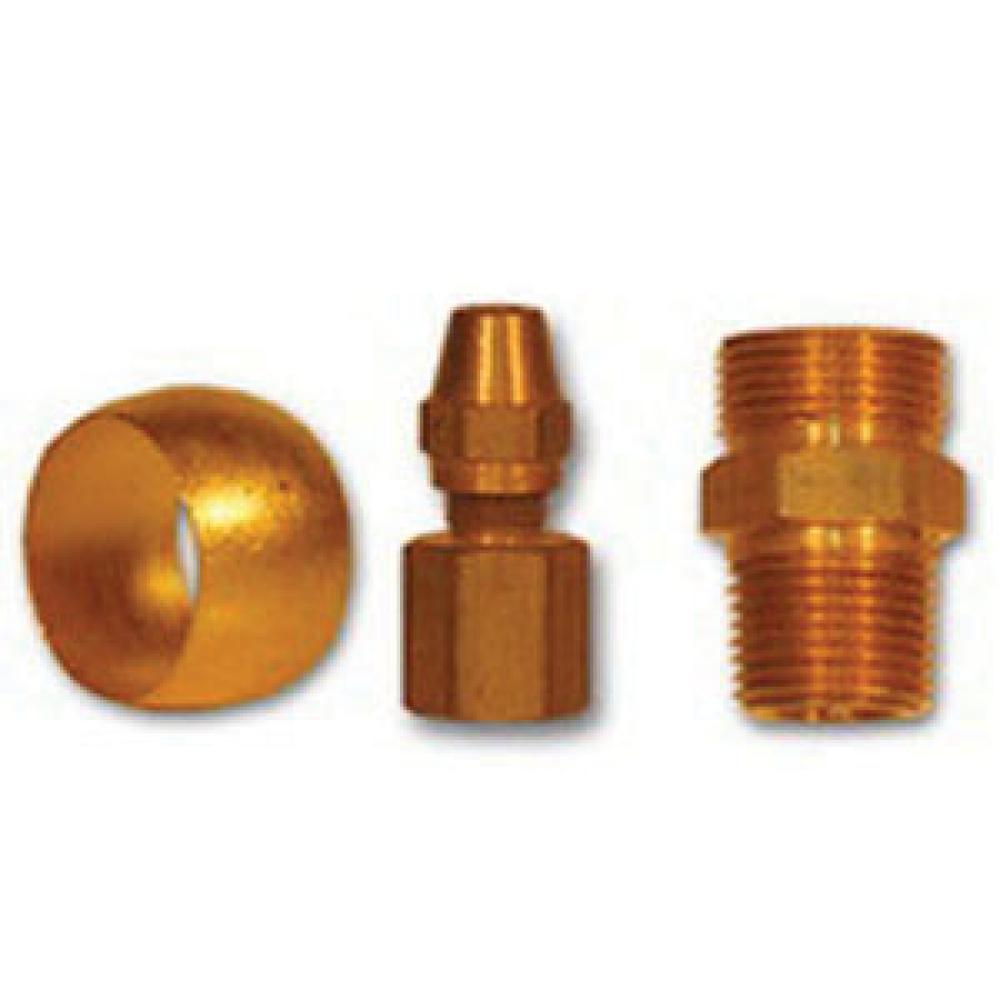

NT69L-86VS
1/2" Tube OD × 3/8" MPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
