Barstock Hose Barb 90 Deg Elbow in brass. 15 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: 90-deg Elbow
Connection Type: HB|MPT
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: Barstock Hose Barb 90 Deg Elbow
Product line: Hose Barb
Stocked part numbers: 15
Part numbers & options
Part #
Size
Pack quantities

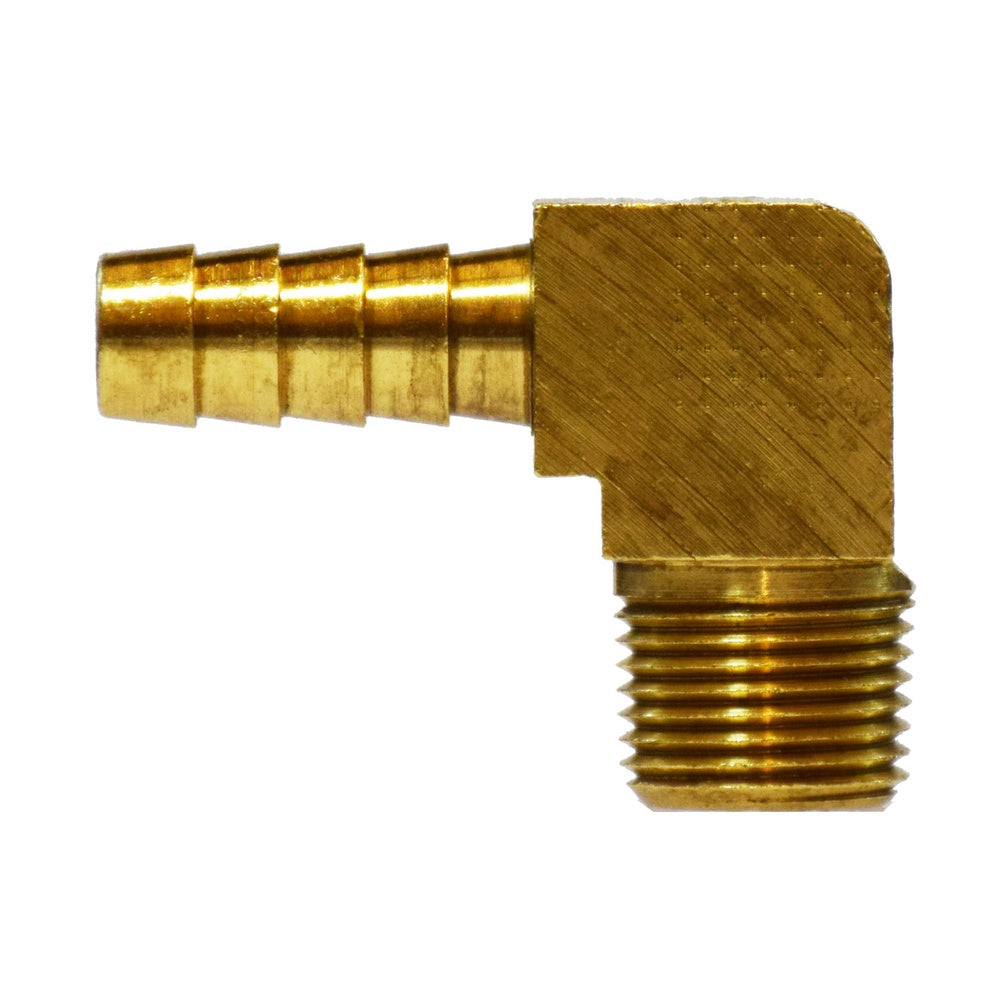

32036B
5/16" Hose Barb × 1/8" Male NPT
—
32038B
1/4" Hose Barb × 1/8" Male NPT
Bag 50, Case 500
32039B
1/4" Hose Barb × 1/4" Male NPT
Bag 50, Case 500
32040B
5/16" Hose Barb × 1/4" Male NPT
—
32041B
3/8" Hose Barb × 1/4" Male NPT
Bag 50, Case 400
32042B
3/8" Hose Barb × 3/8" Male NPT
Bag 25, Case 250
32043B
1/2" Hose Barb × 3/8" Male NPT
Case 170
32046B
3/8" Hose Barb × 1/8" Male NPT
—
32047B
3/8" Hose Barb × 1/2" Male NPT
—
32048B
1/2" Hose Barb × 1/4" Male NPT
—
32309B
1/4" Hose Barb × 3/8" Male NPT
—
32310B
5/16" Hose Barb × 3/8" Male NPT
—
32311B
1/2" Hose Barb × 1/2" Male NPT
—
32314B
3/4" Hose Barb × 3/4" Male NPT
—

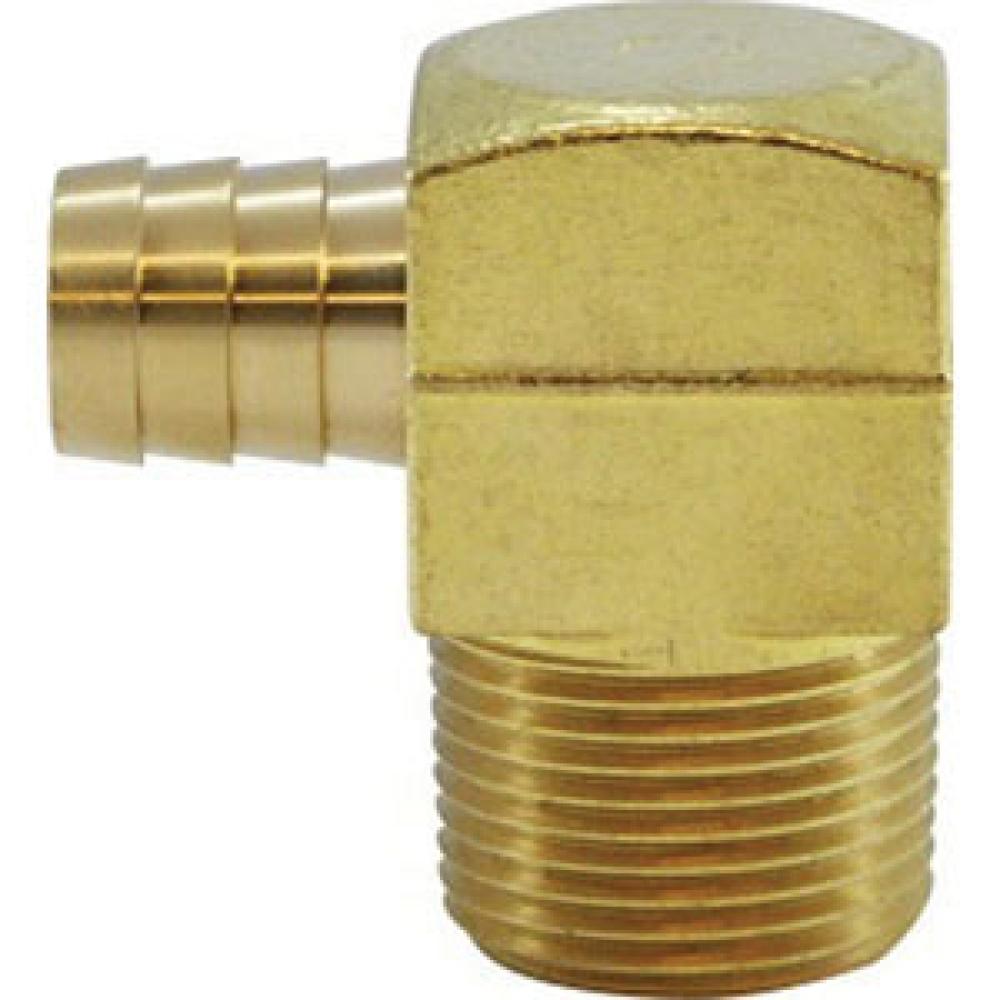

32330
3/4" Hose Barb × 1" Male NPT
Bag 25, Case 75
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
