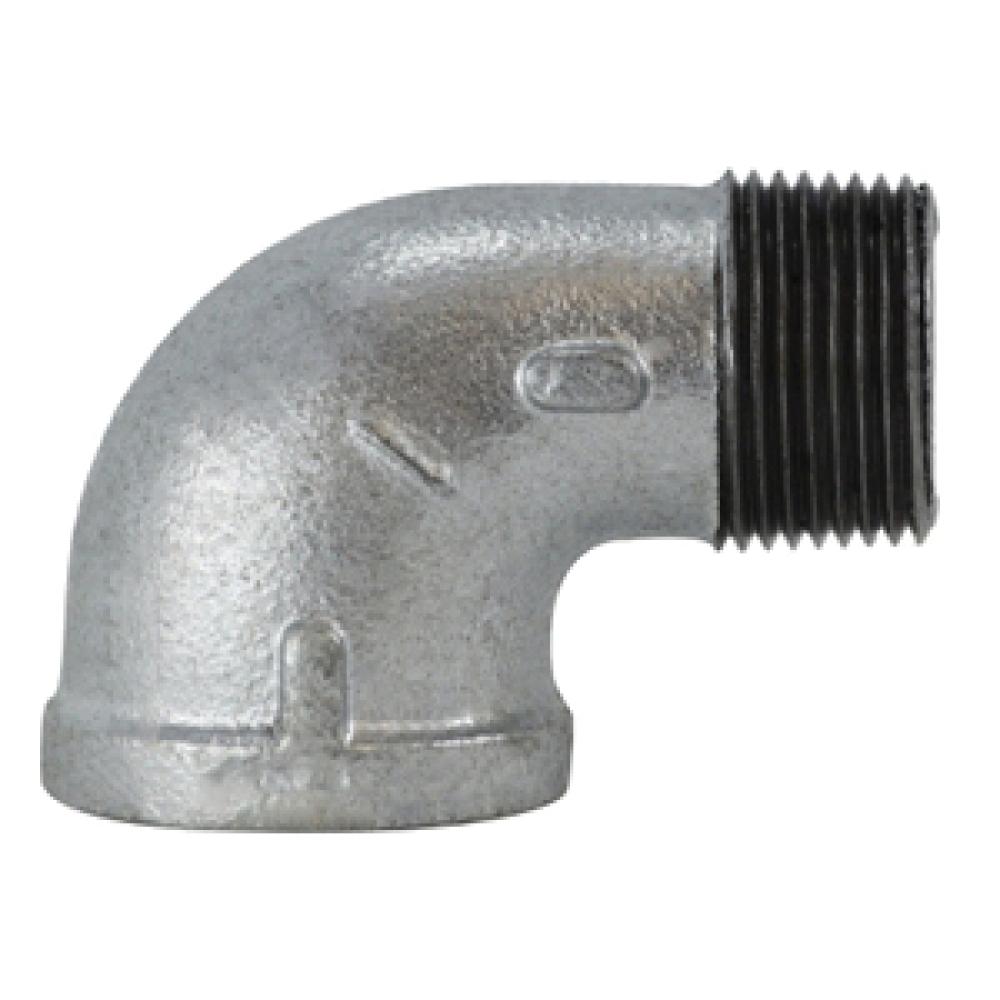

90 Degree Street Elbow in iron. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Connection Type: MPT|FPT
Dimension Standards: ANSI B 16.3
Finish: Galvanized
Pressure Class: 150 lb
Configuration: 90 Degree Street Elbow
Product line: Galvanized 150# Malleable Fittings
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
64160
1/8" MPT × 1/8" FPT
Box 60, Case 720
64161
1/4" MPT × 1/4" FPT
Box 35, Case 420
64162
3/8" MPT × 3/8" FPT
Box 60, Case 240
64163
1/2" MPT × 1/2" FPT
Box 60, Case 180
64164
3/4" MPT × 3/4" FPT
Box 35, Case 105
64165
1" MPT × 1" FPT
Box 45, Case 90
64166
1-1/4" MPT × 1-1/4" FPT
Box 25, Case 50
64167
1-1/2" MPT × 1-1/2" FPT
Box 9, Case 27
64168
2" MPT × 2" FPT
Box 8, Case 16
64169
2-1/2" MPT × 2-1/2" FPT
Box 5, Case 10
64170
3" MPT × 3" FPT
Box 7, Case 8
64171
4" MPT × 4" FPT
Box 2, Case 4
