Male Branch Tee in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: Tee
Connection Type: Tube|Tube|MNPT
Pressure Rating: 150 psi
Temperature Rating: -40 to 150 deg F
Configuration: Male Branch Tee
Product line: Flareless
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities

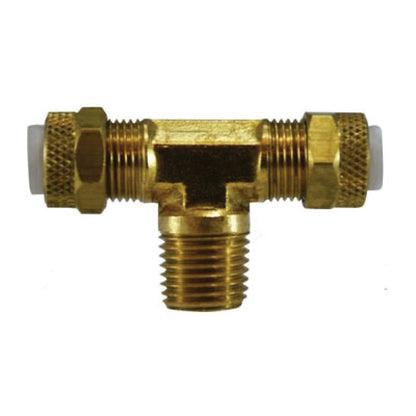

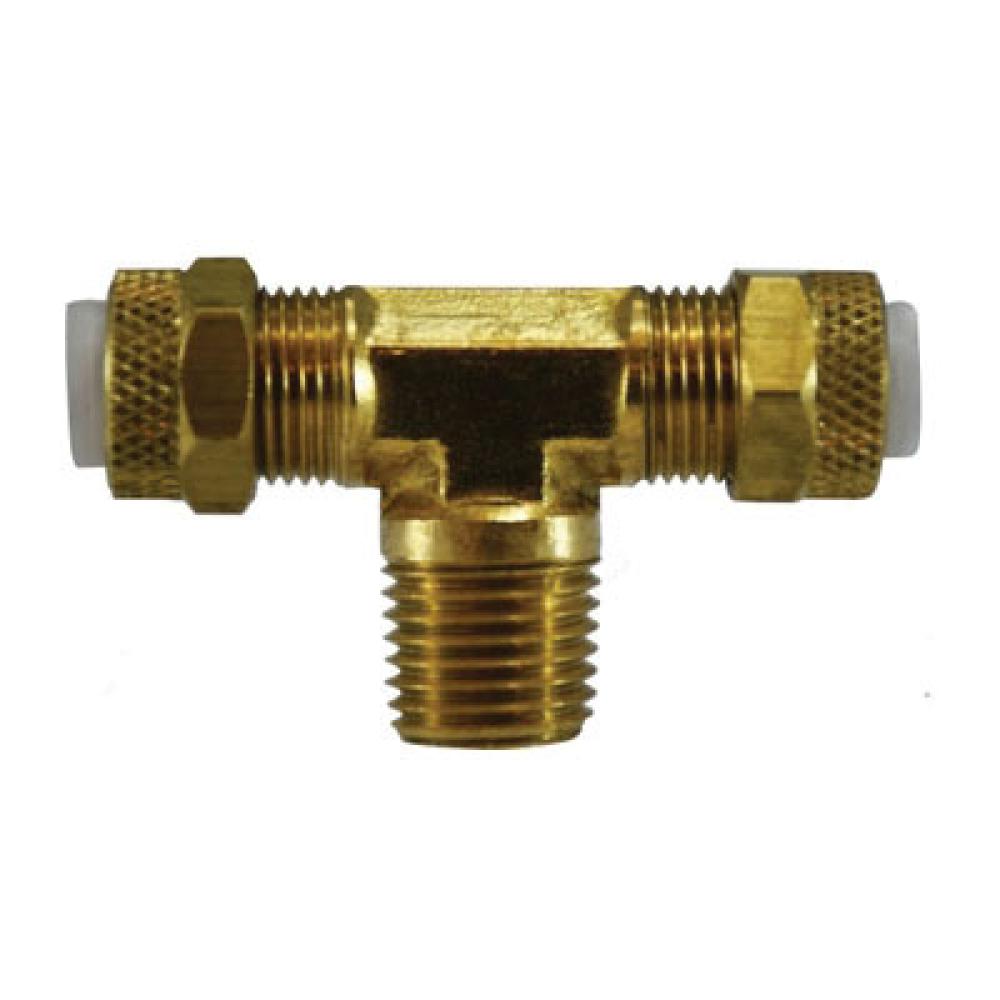

20317
1/8" Tube OD × 1/8" Tube OD × 1/8" Male NPT
Bag 10
20318
3/16" Tube OD × 3/16" Tube OD × 1/8" Male NPT
Bag 10
20319
1/4" Tube OD × 1/4" Tube OD × 1/8" Male NPT
Bag 10, Case 400
20320
1/4" Tube OD × 1/4" Tube OD × 1/4" Male NPT
Bag 25, Case 250
20321
5/16" Tube OD × 5/16" Tube OD × 1/8" Male NPT
Bag 10
20322
3/8" Tube OD × 3/8" Tube OD × 1/8" Male NPT
Bag 10

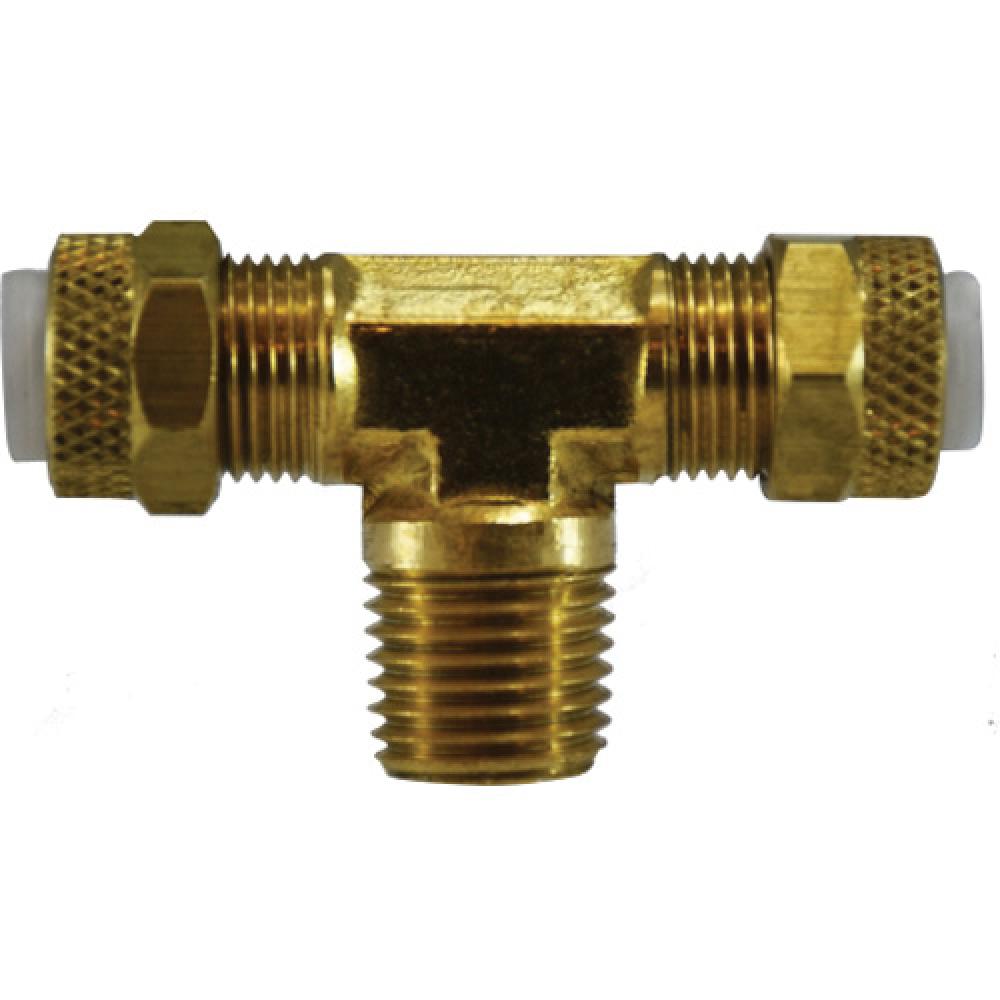

20323
3/8" Tube OD × 3/8" Tube OD × 1/4" Male NPT
Bag 25, Case 250
20324
1/2" Tube OD × 1/2" Tube OD × 3/8" Male NPT
Bag 10
