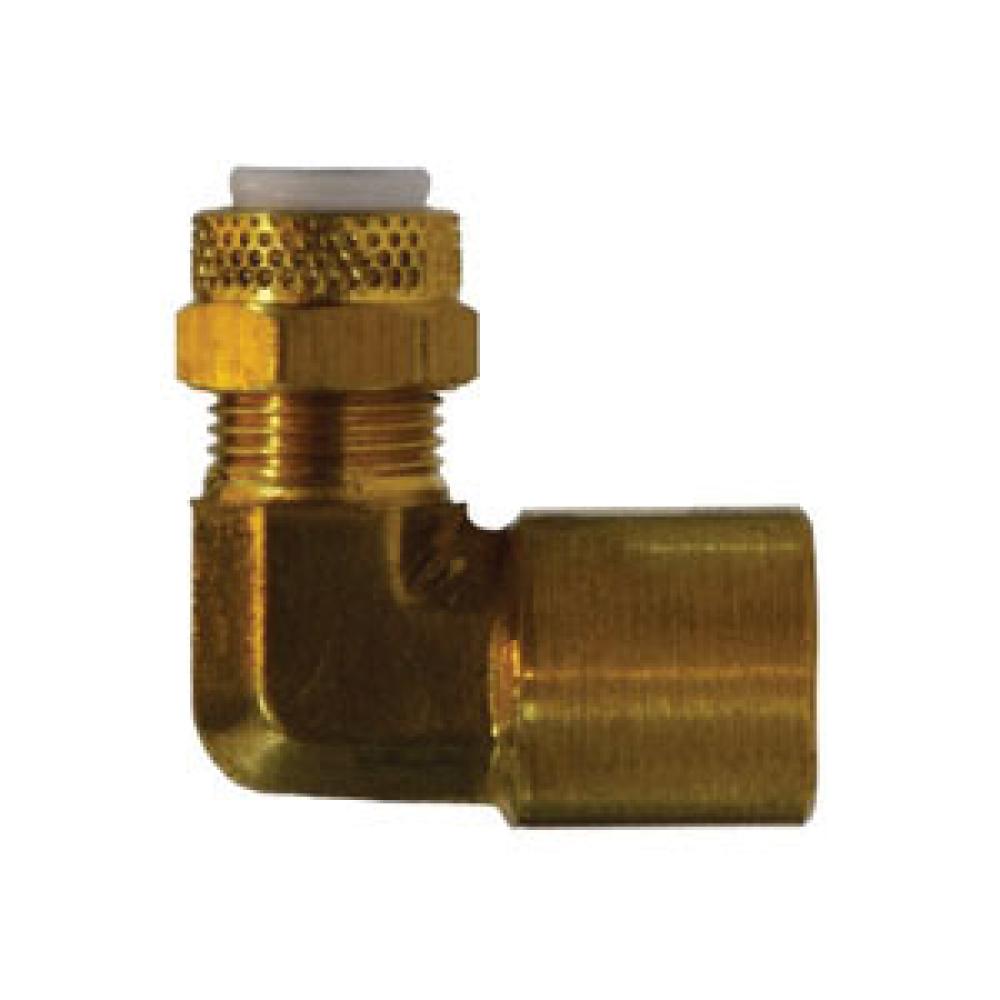

Female Elbow in brass. 6 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: 90 deg Elbow
Connection Type: Tube|FNPT
Pressure Rating: 150 psi
Temperature Rating: -40 to 150 deg F
Configuration: Female Elbow
Product line: Flareless
Stocked part numbers: 6
Part numbers & options
Part #
Size
Pack quantities
20300
1/8" Tube OD × 1/8" Female NPT
Bag 10
20301
3/16" Tube OD × 1/8" Female NPT
Bag 10
20302
1/4" Tube OD × 1/8" Female NPT
Bag 10
20303
1/4" Tube OD × 1/4" Female NPT
Bag 50, Case 400
20304
3/8" Tube OD × 1/4" Female NPT
Bag 10
20305
1/2" Tube OD × 3/8" Female NPT
Bag 10
