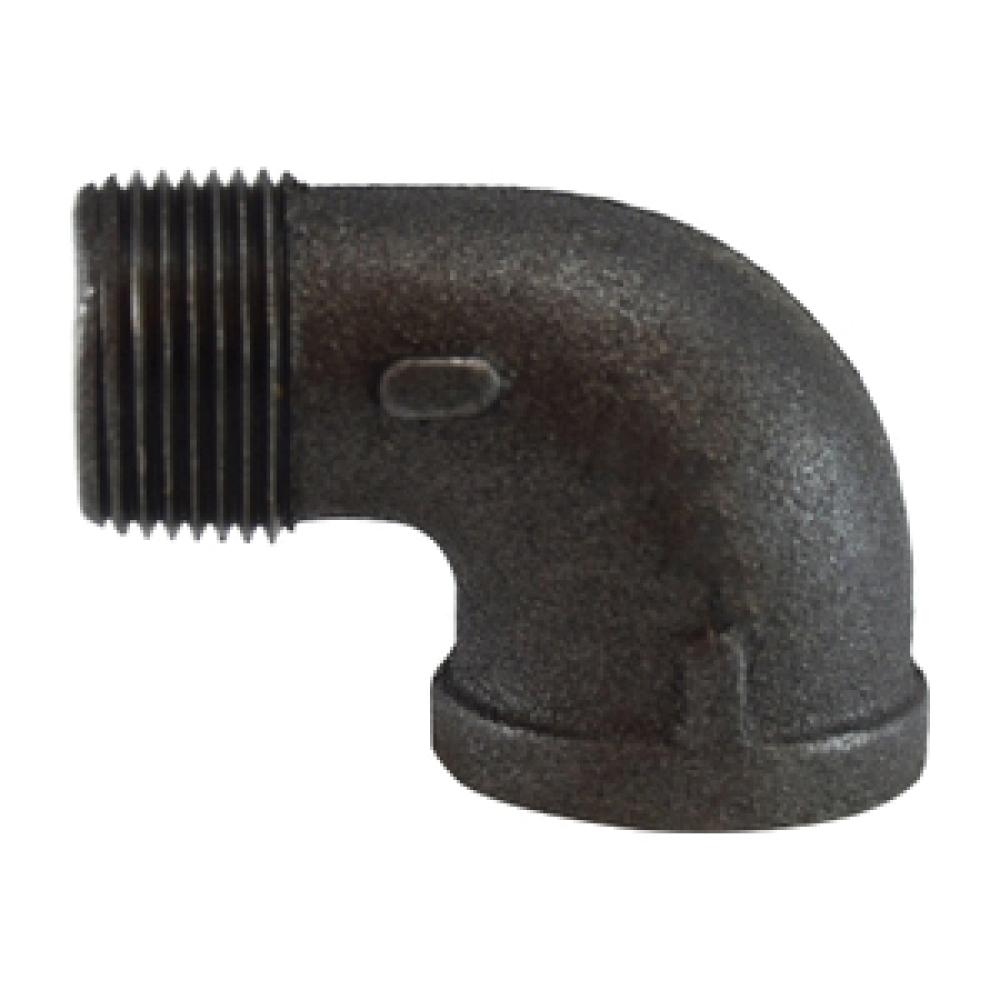

90 Degree Street Elbow in iron. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Fitting Type: 90 deg Elbow
Connection Type: MPT|FPT
Temperature Rating: -20 to 350 deg F
Dimension Standards: ANSI B 16.3
Finish: Black
Pressure Class: 150 lb
Configuration: 90 Degree Street Elbow
Product line: Black 150# Malleable Fittings
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
65160
1/8" MPT × 1/8" FPT
Box 60, Case 720
65161
1/4" MPT × 1/4" FPT
Box 35, Case 420
65162
3/8" MPT × 3/8" FPT
Box 60, Case 240
65163
1/2" MPT × 1/2" FPT
Box 60, Case 180
65164
3/4" MPT × 3/4" FPT
Box 35, Case 105
65165
1" MPT × 1" FPT
Box 45, Case 90
65166
1-1/4" MPT × 1-1/4" FPT
Box 25, Case 50
65167
1-1/2" MPT × 1-1/2" FPT
Box 9, Case 27
65168
2" MPT × 2" FPT
Box 8, Case 16
65169
2-1/2" MPT × 2-1/2" FPT
Box 5, Case 10
65170
3" MPT × 3" FPT
Box 7, Case 8
65171
4" MPT × 4" FPT
Box 2, Case 4
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
