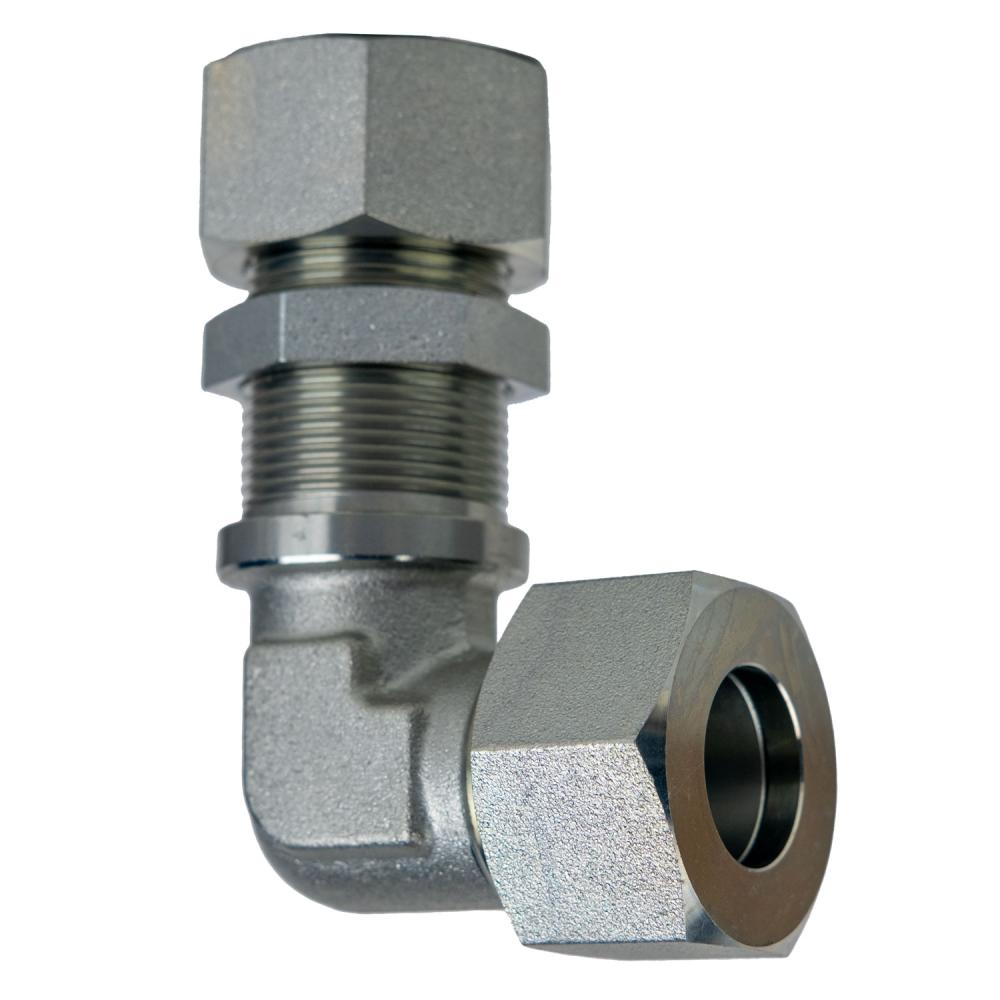

D2701-LN Series – DIN Bulkhead Union Elbow in steel. 16 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MBT|MBT
Dimension Standards: DIN 2353, ISO 8434-1
Series: D2701-LN
Finish: Trivalent Chromium Zinc-Plated
Configuration: D2701-LN Series – DIN Bulkhead Union Elbow
Product line: Steel Metric Compression Fittings
Stocked part numbers: 16
Part numbers & options
Part #
Size
Pack quantities
D2701-LN-L10-L10
L10 Metric Bite Type × L10 Metric Bite Type
Case 125
D2701-LN-L12-L12
L12 Metric Bite Type × L12 Metric Bite Type
—
D2701-LN-L15-L15
L15 Metric Bite Type × L15 Metric Bite Type
Case 70
D2701-LN-L22-L22
L22 Metric Bite Type × L22 Metric Bite Type
Case 33
D2701-LN-L28-L28
L28 Metric Bite Type × L28 Metric Bite Type
Case 27
D2701-LN-L42-L42
L42 Metric Bite Type × L42 Metric Bite Type
Case 11
D2701-LN-S06-S06
S06 Metric Bite Type × S06 Metric Bite Type
Case 160
D2701-LN-S08-S08
S08 Metric Bite Type × S08 Metric Bite Type
Case 125
D2701-LN-S10-S10
S10 Metric Bite Type × S10 Metric Bite Type
—
D2701-LN-S12-S12
S12 Metric Bite Type × S12 Metric Bite Type
Case 70
D2701-LN-S14-S14
S14 Metric Bite Type × S14 Metric Bite Type
Case 60
D2701-LN-S16-S16
S16 Metric Bite Type × S16 Metric Bite Type
Case 45
D2701-LN-S20-S20
S20 Metric Bite Type × S20 Metric Bite Type
Case 35
D2701-LN-S25-S25
S25 Metric Bite Type × S25 Metric Bite Type
Case 18
D2701-LN-S30-S30
S30 Metric Bite Type × S30 Metric Bite Type
Case 16
D2701-LN-S38-S38
S38 Metric Bite Type × S38 Metric Bite Type
Case 10
