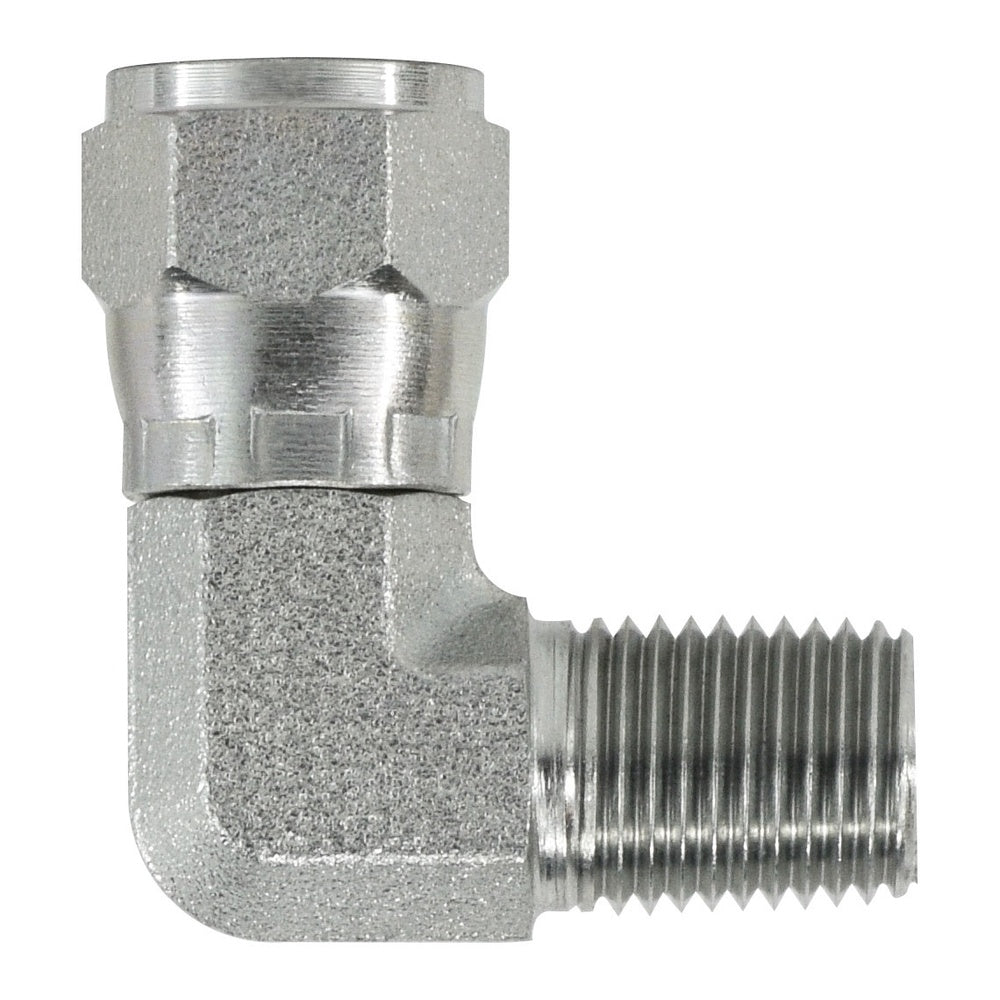

6501 Series – FJIC Swivel to Male Pipe Elbow in steel. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: FJIC Swivel|MPT
Operating Temperature: 375 °F
Series: 6501
Configuration: 6501 Series – FJIC Swivel to Male Pipe Elbow
Product line: Steel JIC Swivel Adapters
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
65011212
3/4" Female JIC Swivel × 3/4" Male NPT
Case 84
65011616
1" Female JIC Swivel × 1" Male NPT
Case 48
65012020
1-1/4" Female JIC Swivel × 1-1/4" Male NPT
Case 25
65012424
1-1/2" Female JIC Swivel × 1-1/2" Male NPT
Case 25
650142
1/4" Female JIC Swivel × 1/8" Male NPT
—
650144
1/4" Female JIC Swivel × 1/4" Male NPT
Case 420
650146
1/4" Female JIC Swivel × 3/8" Male NPT
Case 400
650164
3/8" Female JIC Swivel × 1/4" Male NPT
Case 350
650166
3/8" Female JIC Swivel × 3/8" Male NPT
Case 250
650168
3/8" Female JIC Swivel × 1/2" Male NPT
—
6501812
1/2" Female JIC Swivel × 3/4" Male NPT
Box 100, Case 100
650188
1/2" Female JIC Swivel × 1/2" Male NPT
Case 130
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
