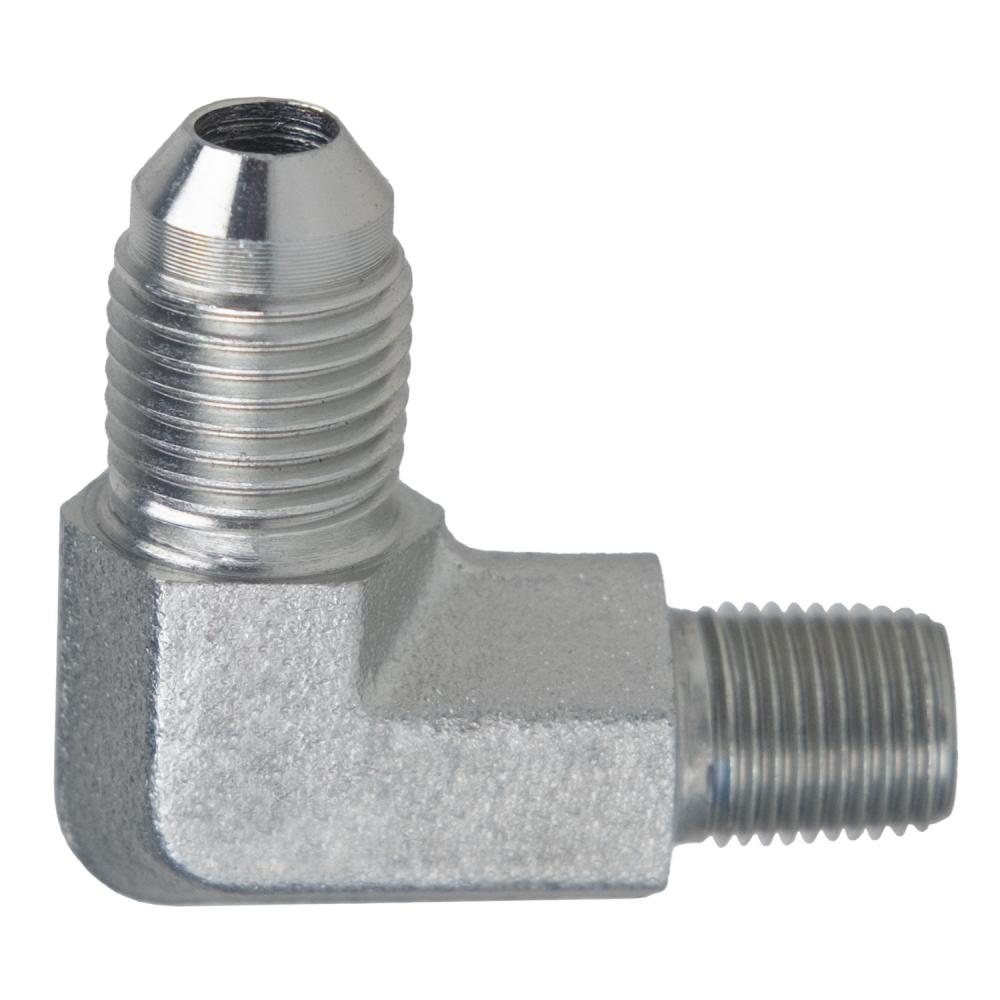

2501-L Series – MJIC to Male Pipe Long Elbow in steel. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MJIC|MPT
Operating Temperature: 375 °F
Series: 2501-L
Configuration: 2501-L Series – MJIC to Male Pipe Long Elbow
Product line: Steel JIC Adapters
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
2501-L-06-08
3/8" Male JIC × 1/2" Male NPT
Box 140, Case 140
2501-L-08-12
1/2" Male JIC × 3/4" Male NPT
Case 65
2501-L-16-12
1" Male JIC × 3/4" Male NPT
Box 48, Case 48
2501L108
5/8" Male JIC × 1/2" Male NPT
Box 110, Case 110
2501L1212
3/4" Male JIC × 3/4" Male NPT
Box 60, Case 60
2501L1616
1" Male JIC × 1" Male NPT
Box 41, Case 41
2501L52
5/16" Male JIC × 1/8" Male NPT
—
2501L54
5/16" Male JIC × 1/4" Male NPT
Case 300
2501L62
3/8" Male JIC × 1/8" Male NPT
—
2501L66
3/8" Male JIC × 3/8" Male NPT
Case 205
2501L86
1/2" Male JIC × 3/8" Male NPT
—
2501L88
1/2" Male JIC × 1/2" Male NPT
Case 120
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
