1803 Series – MJIC to C.62 Flange 45-Deg Elbow in steel. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 45-deg Elbow
Connection Type: MJIC|C62 Flange
Maximum Operating Pressure: 6000 psi
Series: 1803
Configuration: 1803 Series – MJIC to C.62 Flange 45-Deg Elbow
Product line: Steel Flange Fittings
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
18031212
3/4" Male JIC × 3/4" Code 62 Flange
Case 50

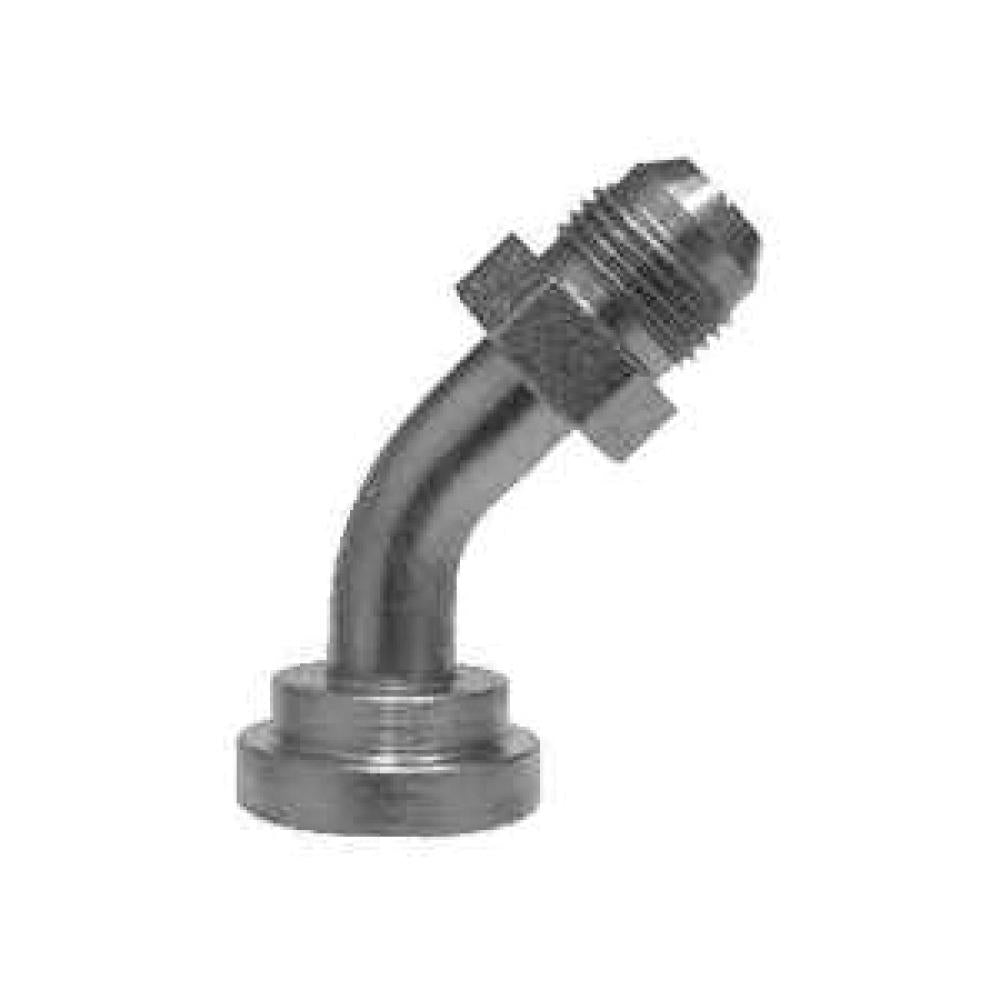

18031216
3/4" Male JIC × 1" Code 62 Flange
Case 37
18031612
1" Male JIC × 3/4" Code 62 Flange
—
18031616
1" Male JIC × 1" Code 62 Flange
Case 25
18031620
1" Male JIC × 1-1/4" Code 62 Flange
Box 30, Case 30
18031624
1" Male JIC × 1-1/2" Code 62 Flange
—
18032016
1-1/4" Male JIC × 1" Code 62 Flange
—
18032020
1-1/4" Male JIC × 1-1/4" Code 62 Flange
Case 30
18032024
1-1/4" Male JIC × 1-1/2" Code 62 Flange
—
18032424
1-1/2" Male JIC × 1-1/2" Code 62 Flange
—
18033232
2" Male JIC × 2" Code 62 Flange
—

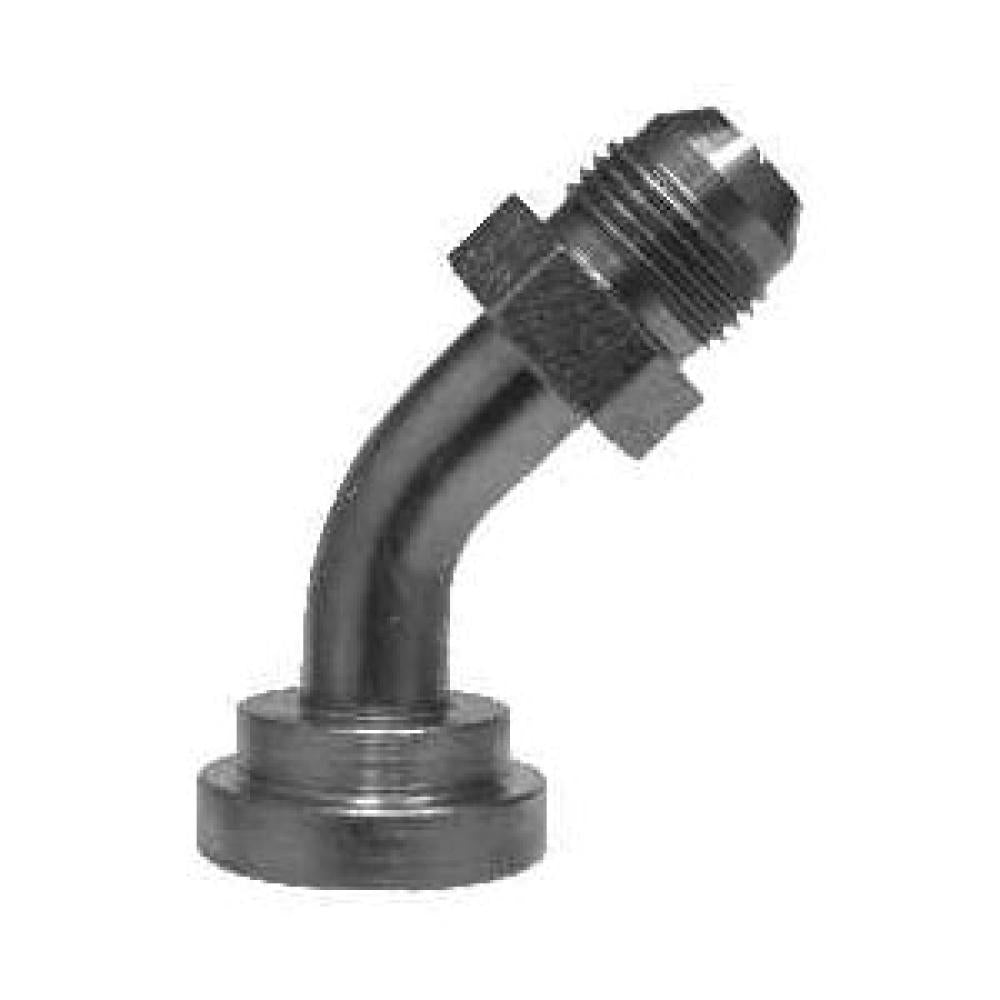

180388
1/2" Male JIC × 1/2" Code 62 Flange
Case 125
