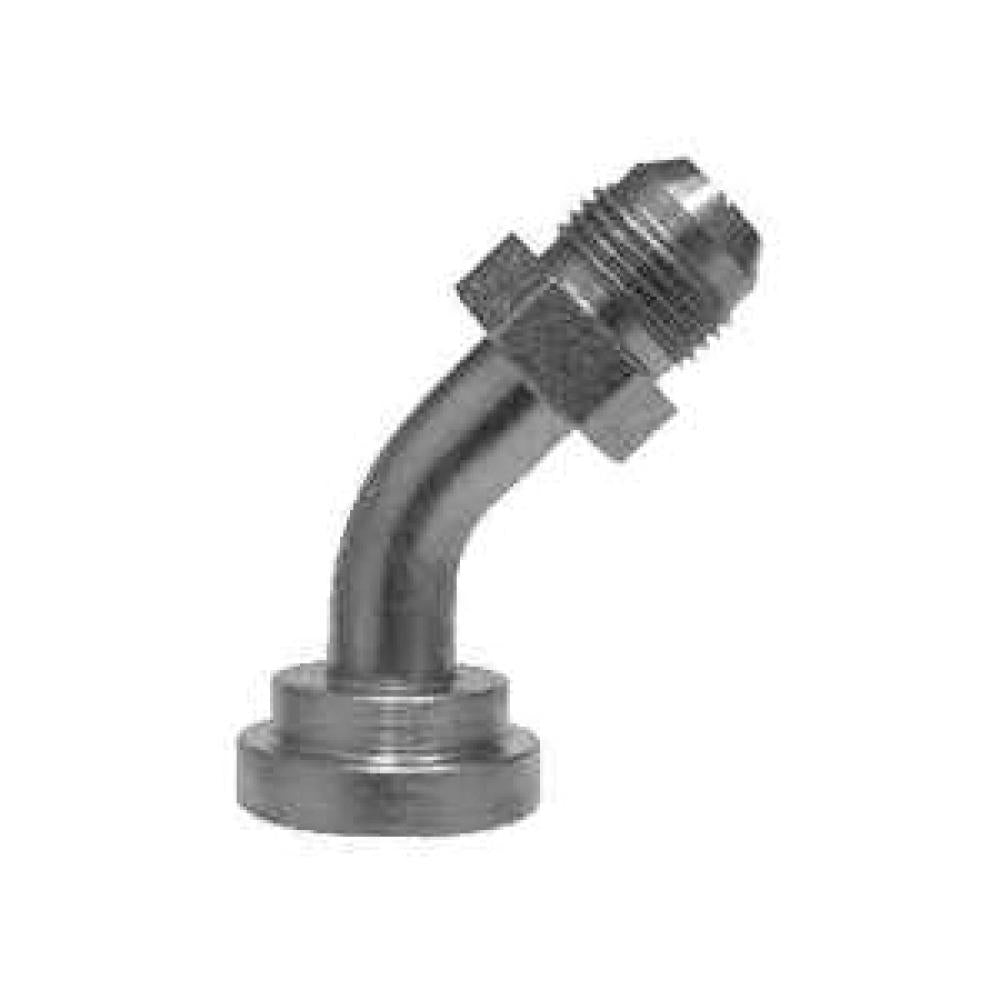

1703 Series – MJIC to C.61 Flange 45-Deg Elbow in steel. 15 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 45-deg Elbow
Connection Type: MJIC|C61 Flange
Maximum Operating Pressure: 3000 psi
Series: 1703
Configuration: 1703 Series – MJIC to C.61 Flange 45-Deg Elbow
Product line: Steel Flange Fittings
Stocked part numbers: 15
Part numbers & options
Part #
Size
Pack quantities
17031212
3/4" Male JIC × 3/4" Code 61 Flange
—
17031216
3/4" Male JIC × 1" Code 61 Flange
—
17031612
1" Male JIC × 3/4" Code 61 Flange
—
17031616
1" Male JIC × 1" Code 61 Flange
—
17031620
1" Male JIC × 1-1/4" Code 61 Flange
—
17032016
1-1/4" Male JIC × 1" Code 61 Flange
Case 30
17032020
1-1/4" Male JIC × 1-1/4" Code 61 Flange
Case 20
17032024
1-1/4" Male JIC × 1-1/2" Code 61 Flange
Case 18
17032420
1-1/2" Male JIC × 1-1/4" Code 61 Flange
—
17032424
1-1/2" Male JIC × 1-1/2" Code 61 Flange
—
17032432
1-1/2" Male JIC × 2" Code 61 Flange
—
17033224
2" Male JIC × 1-1/2" Code 61 Flange
Case 9
17033232
2" Male JIC × 2" Code 61 Flange
—
1703812
1/2" Male JIC × 3/4" Code 61 Flange
—
170388
1/2" Male JIC × 1/2" Code 61 Flange
—
