Save-ty Yellow "Stand Guard" Ribbed Rail
Request a Quote
Ribbed drop-in steel rails and posts for the Stand Guard guardrail system. Quoted by rail length and post type.
| Material | 10-gage Steel |
|---|---|
| Finish | Powder Coated Safety Yellow |
| Rail Lengths | 2', 3', 4', 5', 6', 7', 8', 9', 10' |
| Post Heights | 18", 26", 42" |
| Rail design | All-welded lift-out/drop-in rail design |
| Hardware | No rail bolts or bracket hardware required |

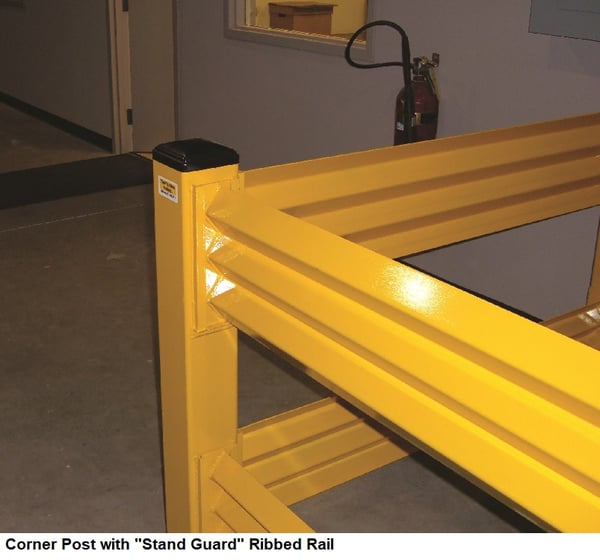

Ribbed steel rails for the Save-ty Yellow "Stand Guard" guardrail system. The rails drop into sleeves welded to the Stand Guard posts, so a damaged rail can be lifted out and replaced on its own. Choose the rail length and any posts you need on the quote form, or give us the part numbers from the table below.
Features
- Lift-out rail design for quick installation and replacement
- Ribbed high-tensile steel rails for added strength and durability
- Modular layout options for straight runs, corners, and custom configurations
- Multiple post heights and rail lengths available
- Powder coated safety yellow finish for high visibility
- Suitable for aisle protection, rack protection, and traffic separation applications
- American-made steel construction
Specifications
| Material | 10-gage Steel |
| Finish | Powder Coated Safety Yellow |
| Rails | 10-gauge high-tensile steel rails with ribbed reinforcement |
| Rail Lengths | 2', 3', 4', 5', 6', 7', 8', 9', 10' |
| Post Heights | 18", 26", 42" |
| Posts | 4" posts mounted on 10" x 10" x 1/2" base plates |
| Impact rating | Rated for 10,000 lbs impact at 5 mph |
| Rail design | All-welded lift-out/drop-in rail design |
| Hardware | No rail bolts or bracket hardware required |
| Anchors | 5/8" x 4.75" anchors available for installation |
| Applications | Aisle Protection, Rack Protection, Conveyor Protection, Pedestrian Separation, Equipment Protection, Traffic Control |
Part numbers
| Part # | Type | Dimensions | Baseplate |
|---|---|---|---|
| RRIB-2 | Guardrail | 2' Length | |
| RRIB-3 | Guardrail | 3' Length | |
| RRIB-4 | Guardrail | 4' Length | |
| RRIB-5 | Guardrail | 5' Length | |
| RRIB-6 | Guardrail | 6' Length | |
| RRIB-7 | Guardrail | 7' Length | |
| RRIB-8 | Guardrail | 8' Length | |
| RRIB-9 | Guardrail | 9' Length | |
| RRIB-10 | Guardrail | 10' Length | |
| 4RPC-18 | Corner Post | 4" x 4" x 18" | 10" x 10" x 1/2" |
| 4RPE-18 | End Post | 4" x 4" x 18" | 10" x 10" x 1/2" |
| 4RPIN-18 | Inline Post | 4" x 4" x 18" | 10" x 10" x 1/2" |
| 4RPE-26 | End Post | 4" x 4" x 26" | 10" x 10" x 1/2" |
| 4RPC-26 | Corner Post | 4" x 4" x 26" | 10" x 10" x 1/2" |
| 4RPIN-26 | Inline Post | 4" x 4" x 26" | 10" x 10" x 1/2" |
| 4RPC-42-DBL | Corner Post | 4" x 4" x 42" | 10" x 10" x 1/2" |
| 4RPE-42-DBL | End Post | 4" x 4" x 42" | 10" x 10" x 1/2" |
| 4RPIN-42-DBL | Inline Post | 4" x 4" x 42" | 10" x 10" x 1/2" |
| 4RPT-42-DBL | T-Post | 4" x 4" x 42" | 10" x 10" x 1/2" |
Specifications from the manufacturer. Freight quoted with your price.
