Save-ty Yellow Modular Handrail System
Request a Quote
Yellow steel pipe handrail built from posts, rails, kick plates and fittings. Quoted by component and rail length.
| Material | 1.66" O.D. Steel |
|---|---|
| Finish | Powder Coated Safety Yellow |
| Post Heights | 42" Standard, ADA Options Available |
| Rail Lengths | 4', 6', 8' Stock Lengths, Field Cuttable |
| Installation | Anchored floor-mounted installation |

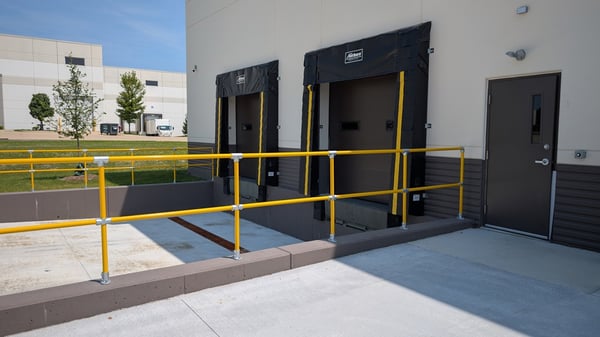

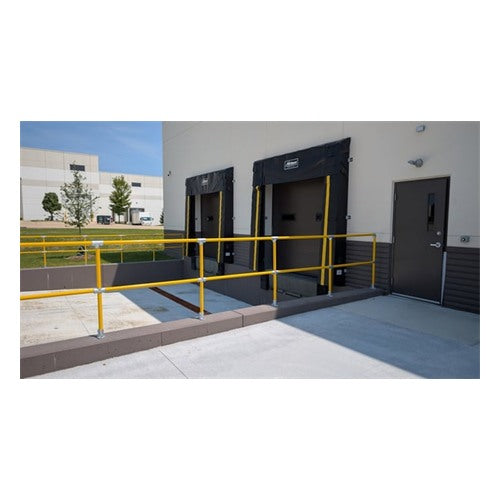

A yellow steel pipe handrail system from Save-ty Yellow Products, built from posts, rails, kick plates and slip-on fittings. Use it along walkways, mezzanine edges, platforms and restricted areas, and rearrange or extend the layout later as your floor plan changes. Tell us the components and rail lengths you need on the quote form, or give us the part numbers from the table below.
Features
- 42" high railing creating OSHA compliant fall protection
- Durable 1.66" O.D. steel rails
- Modular fitting system for flexible layouts
- High-visibility powder coated safety yellow finish
- Easy assembly and installation
- Field-adjustable rail lengths for custom fits
- Suitable for industrial, warehouse, and mezzanine applications
- American-made steel construction
Specifications
| Material | 1.66" O.D. Steel |
| Finish | Powder Coated Safety Yellow |
| Post Heights | 42" Standard, ADA Options Available |
| Rail Lengths | 4', 6', 8' Stock Lengths, Field Cuttable |
| Fittings | Modular fittings including end, corner, center, and base components |
| Mezzanine | Mezzanine installation fittings available |
| Installation | Anchored floor-mounted installation |
| Applications | Pedestrian Walkways, Mezzanines, Elevated Platforms, Restricted Areas, Light-Duty Boundary Protection |
Part numbers
| Part # | Type | Dimensions |
|---|---|---|
| HAND-42-POST | Post | 1.66" O.D. x 42" Height |
| HAND-24-RAIL | Handrail | 1.66" O.D. x 24" Length |
| HAND-48 RAIL | Handrail | 1.66" O.D. x 48" Length |
| HAND-72-RAIL | Handrail | 1.66" O.D. x 72" Length |
| HAND-96-RAIL | Handrail | 1.66" O.D. x 96" Length |
| Kick Plate | Kick Plate | 4" Height x 48" Length x 2" Depth x 1/4" Thickness |
| SYP-02G-32 | Fitting - End Top | 1.66" O.D. |
| SYP-03G-32 | Fitting - End Mid Rail | 1.66" O.D. |
| SYP-04G-32 | Fitting - Inline Top | 1.66" O.D. |
| SYP-11G-32 | Fitting - Wall | 1.66" O.D. |
| SYP-12G-32 | Fitting - Post Base | 1.66" O.D. |
| SYP-20G-32 | Fitting - Top Corner | 1.66" O.D. |
| SYP-21G-32 | Fitting - Mid Rail Corner | 1.66" O.D. |
| SYP-22G-32 | Fitting - Inline Mid Rail | 1.66" O.D. |
Specifications from the manufacturer. Freight quoted with your price.
