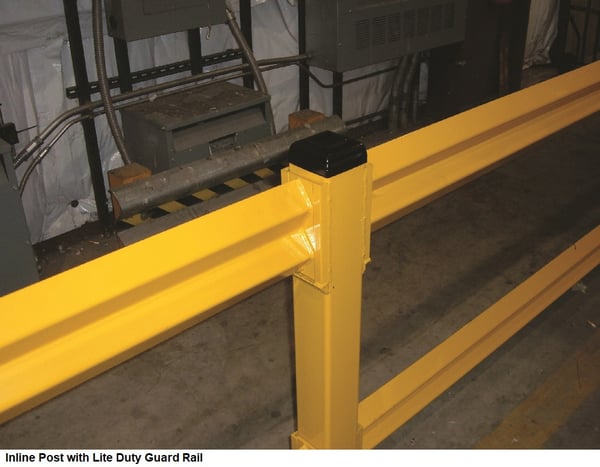

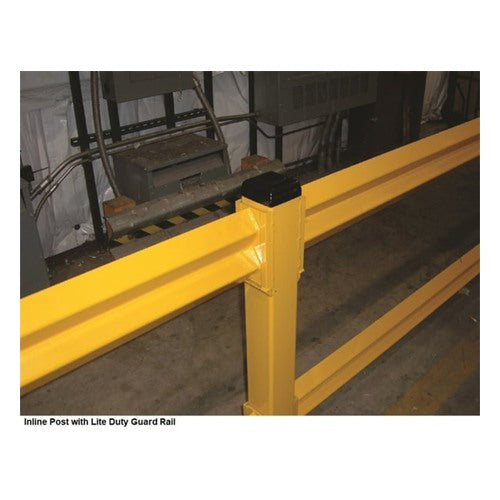

Save-ty Yellow Stand Guard lite duty guardrail along a warehouse wall

Save-ty Yellow Lite Duty Guard Rail

Request a Quote

Shipping to more than one site? Add the other ZIPs in Notes.
Delivery appointment required? Carriers charge extra for appointment deliveries.

Quote back in 1 business day.

+ Add details (specs, sizes, needed-by date)

Specifications from the manufacturer. Freight quoted with your price.

Lighter-gauge drop-in steel guardrail with 42" posts. Quoted by post type and rail length.

Material14-gage Steel
FinishPowder Coated Safety Yellow
Post Height42"
Posts4" posts mounted on 8" x 8" x 1/2" base plates
Rail Lengths2', 3', 4', 5', 6', 7', 8', 9', 10'

The lighter-gauge version of the Save-ty Yellow "Stand Guard" guardrail, meant for areas that see pallet jacks, walkie stackers and carts rather than full-size forklifts. Rails drop into sleeves welded to 42" posts and can be lifted out individually when a section needs to change. Choose posts and rail lengths on the quote form, or give us the part numbers from the table below.

Features

  • Modular lift-out/drop-in rail system
  • Steel rail and post construction
  • High-visibility powder coated safety yellow finish
  • Multiple rail lengths available with 42" tall posts
  • Flexible configurations for straight runs and custom layouts
  • Simplified installation and maintenance
  • American-made steel construction

Specifications

Material 14-gage Steel
Finish Powder Coated Safety Yellow
Rails 14-gauge high-tensile steel rails with ribbed reinforcement
Post Height 42"
Posts 4" posts mounted on 8" x 8" x 1/2" base plates
Rail Lengths 2', 3', 4', 5', 6', 7', 8', 9', 10'
Rail measurement Rail lengths measured center-to-center of posts
Impact rating Rated for 6,000 lbs impact at 5 mph
Hardware No rail bolts or bracket hardware required
Anchors 5/8" x 4.75" anchors available for installation
Applications Areas of Traffic for: Electric Pallet Trucks, Powered Stackers, Manual Pallet Trucks, Push Carts, High-Lift Scissor Trucks

Part numbers

Part # Type Dimensions Baseplate
4-LITE-END-42-DBL End Post 4" x 4" x 42" 8" x 8" x 1/2"
4-LITE-INLINE-42-DBL Inline Post 4" x 4" x 42" 8" x 8" x 1/2"
4-LITE-CORNER-42-DBL Corner Post 4" x 4" x 42" 8" x 8" x 1/2"
4-LITE-RAIL Lite Guardrail 4' Length
5-LITE-RAIL Lite Guardrail 5' Length
6-LITE-RAIL Lite Guardrail 6' Length
7-LITE-RAIL Lite Guardrail 7' Length
8-LITE-RAIL Lite Guardrail 8' Length
9-LITE-RAIL Lite Guardrail 9' Length
10-LITE-RAIL Lite Guardrail 10' Length

Specifications from the manufacturer. Freight quoted with your price.
