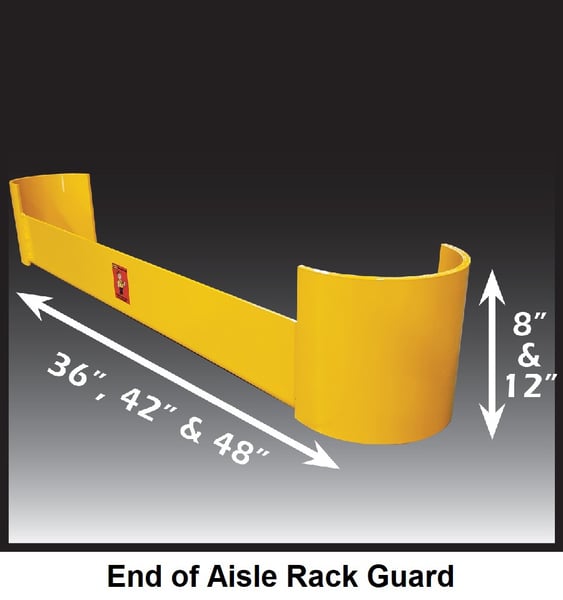

Save-ty Yellow End of Aisle Rack Guard
Request a Quote
Curved floor-mounted steel guards for pallet rack end frames. Quoted by side, length and plate thickness.
| Material | 1/4" Steel, 1/2" Heavy-Duty Steel |
|---|---|
| Finish | Powder Coated Safety Yellow |
| End Heights | 8" Standard Upright, 12" Heavy-Duty Upright |
| Lengths | 42", 48" |
| Mounting | Unit mounts directly to floor surrounding upright frame |
A curved steel guard from Save-ty Yellow Products that bolts to the floor around the end frame of a pallet rack run. It comes in left, right and double versions, 42" and 48" lengths, and a standard 1/4" or heavy-duty 1/2" plate. Choose the side, length and thickness on the quote form, or give us the part number from the table below.
Features
- Curved end-of-aisle rack guard design
- Floor-mounted anchored installation
- Available in standard and heavy-duty configurations
- Available in left side, right side, and double configurations
- 42" and 48" standard lengths available
- Powder coated safety yellow finish
- Designed for pallet rack end protection in warehouse traffic areas
- American-made steel construction
Specifications
| Material | 1/4" Steel, 1/2" Heavy-Duty Steel |
| Finish | Powder Coated Safety Yellow |
| End Heights | 8" Standard Upright, 12" Heavy-Duty Upright |
| Standard design | Standard design features 8" tall upright with 5" tall x 3" wide angle |
| Heavy-duty design | Heavy-duty design features 12" tall upright with 6" tall x 4" wide angle |
| Lengths | 42", 48" |
| Mounting | Unit mounts directly to floor surrounding upright frame |
| Anchors | 5/8" x 4.75" anchors available upon request |
| Applications | End of Aisle Protection, Pallet Rack Ends, Warehouse Traffic Areas, Forklift Protection, Rack Uprights |
Part numbers
| Part # | Type | Height | Length | Thickness |
|---|---|---|---|---|
| RG-42LC-1/4"-8 | Left | 5" x 3" | 42" | 1/4" |
| RG-42RC-1/4"-8 | Right | 5" x 3" | 42" | 1/4" |
| RG-42DC-1/4"-8 | Double | 5" x 3" | 42" | 1/4" |
| RG-42LC-1/2. | Left | 6" x 4" | 42" | 1/2" |
| RG-42RC-1/2. | Right | 6" x 4" | 42" | 1/2" |
| RG-42DC-1/2. | Double | 6" x 4" | 42" | 1/2" |
| RG-48LC-1/4"-8 | Left | 5" x 3" | 48" | 1/4" |
| RG-48RC-1/4"-8 | Right | 5" x 3" | 48" | 1/4" |
| RG-48DC-1/4"-8 | Double | 5" x 3" | 48" | 1/4" |
| RG-48LC-1/2. | Left | 6" x 4" | 48" | 1/2" |
| RG-48RC-1/2. | Right | 6" x 4" | 48" | 1/2" |
| RG-48DC-1/2. | Double | 6" x 4" | 48" | 1/2" |
| RG-EXT-48-1/2" | Extension | 6" x 4" | 48" | 1/2" |
| RG-EXT-48-1/4" | Extension | 5" x 3" | 48" | 1/4" |
Specifications from the manufacturer. Freight quoted with your price.
