D7505-SP-ED Series – Female Standpipe DIN to Male BSPP in steel. 4 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: FMSP|MBSPP
Dimension Standards: DIN 2353, ISO 8434-1
Series: D7505-SP-ED
Finish: Trivalent Chromium Zinc-Plated
Configuration: D7505-SP-ED Series – Female Standpipe DIN to Male BSPP
Product line: Steel Metric Compression Fittings
Stocked part numbers: 4
Part numbers & options
Part #
Size
Pack quantities

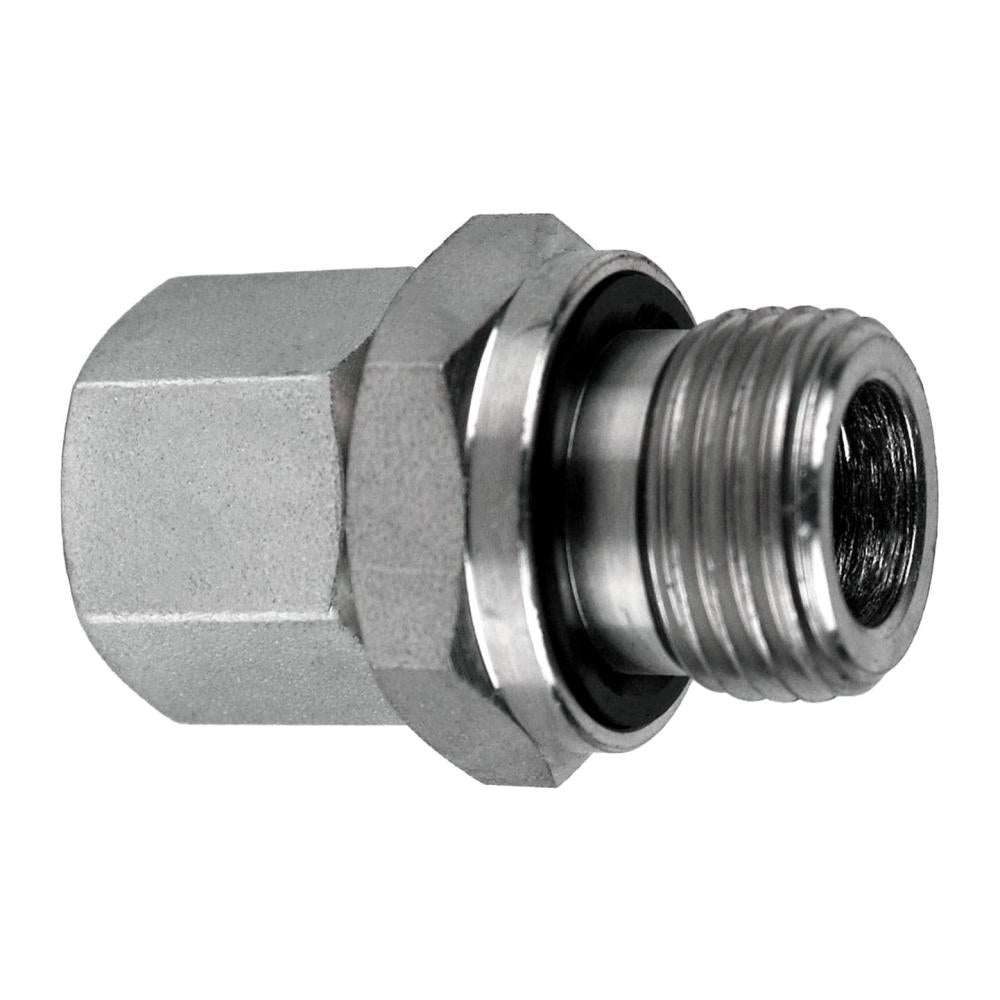

D7505-SP-L08-04-ED
L08 Female Metric Standpipe × 1/4" Male BSPP
—
D7505-SP-L12-06-ED
L12 Female Metric Standpipe × 3/8" Male BSPP
Case 280
D7505-SP-L12-08-ED
L12 Female Metric Standpipe × 1/2" Male BSPP
Case 220
D7505-SP-L15-06-ED
L15 Female Metric Standpipe × 3/8" Male BSPP
Case 200
