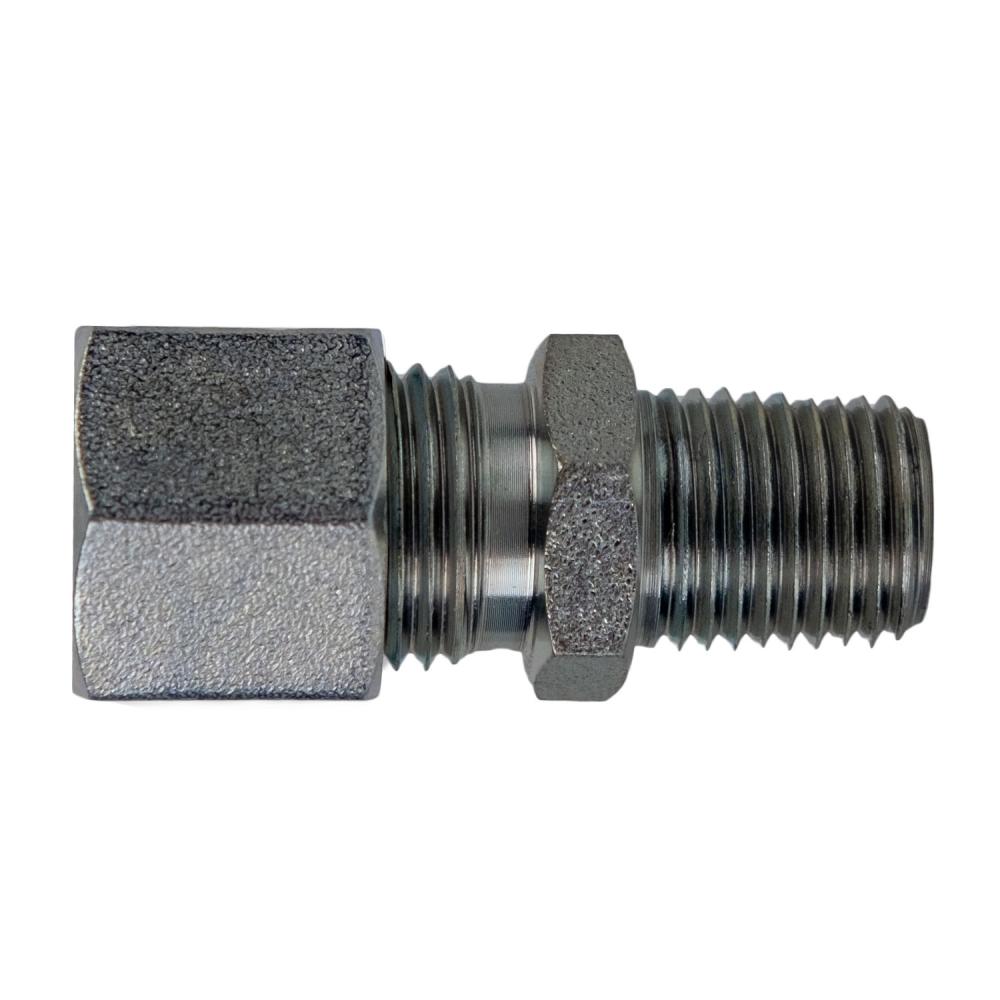

D2404 Series – DIN to Male Pipe in steel. 20 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: MBT|MPT
Dimension Standards: DIN 2353, ISO 8434-1
Series: D2404
Finish: Trivalent Chromium Zinc-Plated
Configuration: D2404 Series – DIN to Male Pipe
Product line: Steel Metric Compression Fittings
Stocked part numbers: 20
Part numbers & options
Part #
Type
Pack quantities
D2404-L06-04
L06 Compression x 1/4 Mnpt
Case 500
D2404-L06-06
L06 Compression x 3/8 Mnpt
Case 420
D2404-L06-08
L06 Compression x 1/2 Mnpt
Case 270
D2404-L08-02
L08 Compression x 1/8 Mnpt
Case 500
D2404-L08-04
L08 Compression x 1/4 Mnpt
—
D2404-L08-06
L08 Compression x 3/8 Mnpt
Case 400
D2404-L08-08
L08 Compression x 1/2 Mnpt
Case 250
D2404-L10-02
L10 Compression x 1/8 Mnpt
—
D2404-L10-04
L10 Compression x 1/4 Mnpt
Case 400
D2404-L10-06
L10 Compression x 3/8 Mnpt
Case 310
D2404-S06-04
S06 Compression x 1/4 Mnpt
Case 400
D2404-S06-06
S06 Compression x 3/8 Mnpt
Case 350
D2404-S06-08
S06 Compression x 1/2 Mnpt
—
D2404-S08-02
S08 Compression x 1/8 Mnpt
Case 380
D2404-S08-04
S08 Compression x 1/4 Mnpt
Case 350
D2404-S08-06
S08 Compression x 3/8 Mnpt
Case 300
D2404-S08-08
S08 Compression x 1/2 Mnpt
Case 210
D2404-S10-02
S10 Compression x 1/8 Mnpt
Case 300
D2404-S10-04
S10 Compression x 1/4 Mnpt
Case 300
D2404-S10-06
S10 Compression x 3/8 Mnpt
Case 250
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
