D7404 Series – DIN to Male BSPT in steel. 14 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: MBT|MBSPT
Dimension Standards: DIN 2353, ISO 8434-1
Series: D7404
Finish: Trivalent Chromium Zinc-Plated
Configuration: D7404 Series – DIN to Male BSPT
Product line: Steel Metric Compression Fittings
Stocked part numbers: 14
Part numbers & options
Part #
Size
Pack quantities

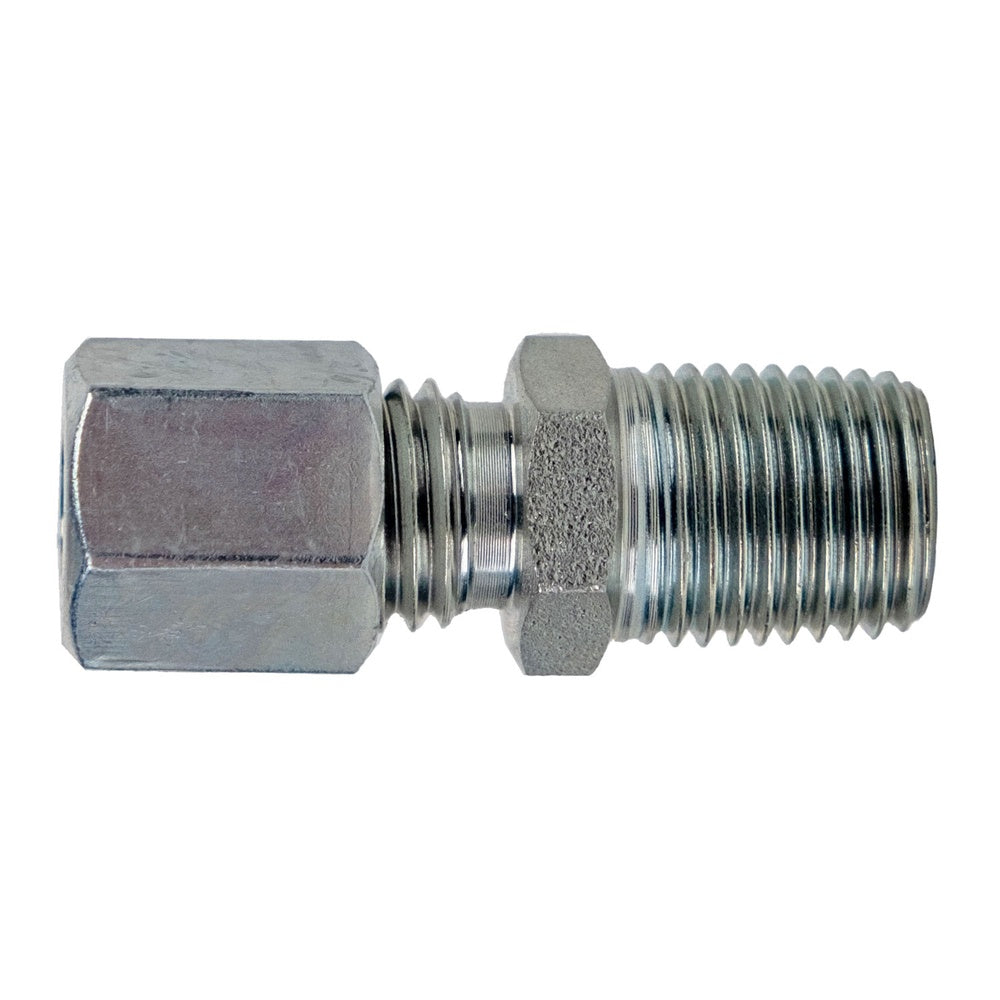

D7404-L06-04
L06 Metric Bite Type × 1/4" Male BSPT
—
D7404-L08-02
L08 Metric Bite Type × 1/8" Male BSPT
—
D7404-L08-04
L08 Metric Bite Type × 1/4" Male BSPT
Case 500
D7404-L08-06
L08 Metric Bite Type × 3/8" Male BSPT
Case 450
D7404-L10-02
L10 Metric Bite Type × 1/8" Male BSPT
—
D7404-L10-04
L10 Metric Bite Type × 1/4" Male BSPT
Case 385
D7404-L10-06
L10 Metric Bite Type × 3/8" Male BSPT
Case 350
D7404-S06-04
S06 Metric Bite Type × 1/4" Male BSPT
Case 400
D7404-S08-04
S08 Metric Bite Type × 1/4" Male BSPT
Case 350
D7404-S10-06
S10 Metric Bite Type × 3/8" Male BSPT
Case 250
D7404-S14-06
S14 Metric Bite Type × 3/8" Male BSPT
Case 170
D7404-S14-08
S14 Metric Bite Type × 1/2" Male BSPT
Case 125
D7404-S16-08
S16 Metric Bite Type × 1/2" Male BSPT
Case 120
D7404-S20-08
S20 Metric Bite Type × 1/2" Male BSPT
Case 70
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
