6505 Series – FJIC Swivel to Male Pipe in steel. 17 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: FJIC Swivel|MPT
Operating Temperature: 375 °F
Series: 6505
Configuration: 6505 Series – FJIC Swivel to Male Pipe
Product line: Steel JIC Swivel Adapters
Stocked part numbers: 17
Part numbers & options
Part #
Size
Pack quantities

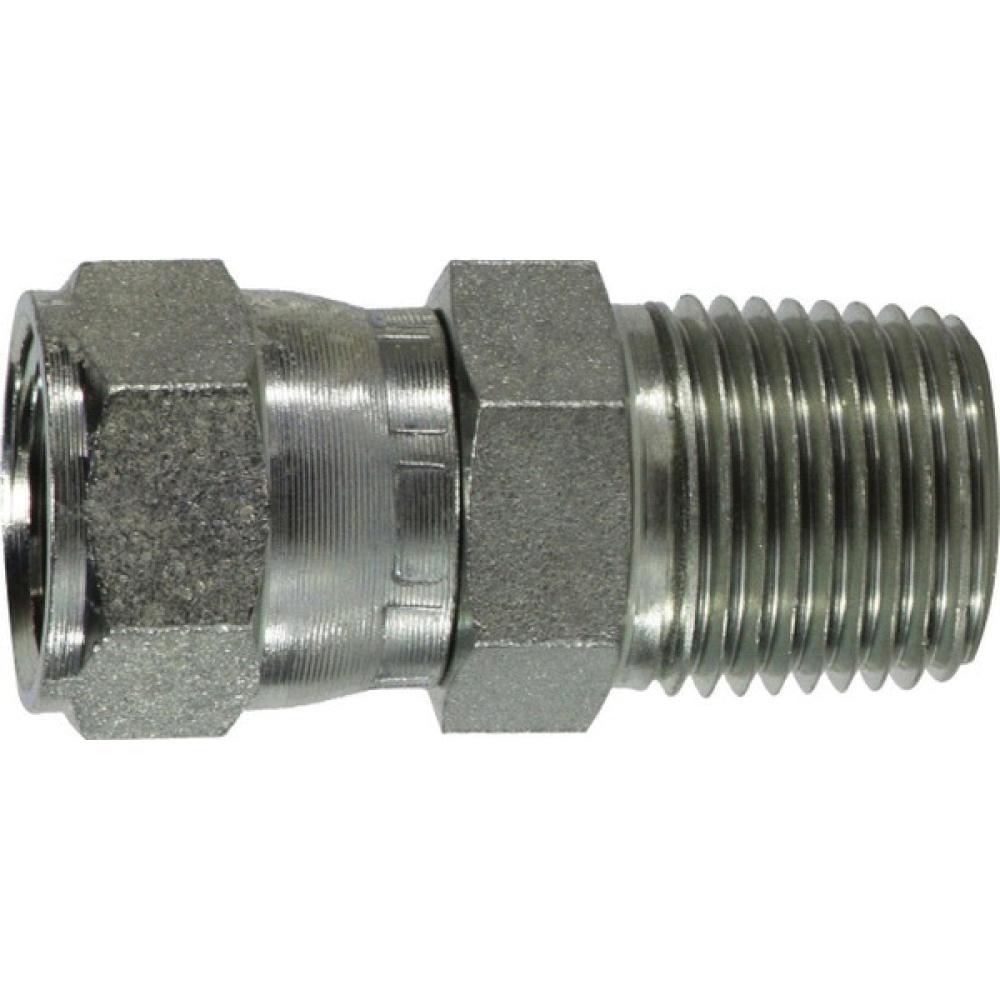

6505-10-06
5/8" Female JIC Swivel × 3/8" Male NPT
—
65051012
5/8" Female JIC Swivel × 3/4" Male NPT
Case 130
6505108
5/8" Female JIC Swivel × 1/2" Male NPT
Box 150
65051212
3/4" Female JIC Swivel × 3/4" Male NPT
Case 140
6505128
3/4" Female JIC Swivel × 1/2" Male NPT
Box 120, Case 120
65051612
1" Female JIC Swivel × 3/4" Male NPT
—
65051616
1" Female JIC Swivel × 1" Male NPT
Case 86
65052424
1-1/2" Female JIC Swivel × 1-1/2" Male NPT
Case 32
65053232
2" Female JIC Swivel × 2" Male NPT
Case 13
650542
1/4" Female JIC Swivel × 1/8" Male NPT
Case 800
650544
1/4" Female JIC Swivel × 1/4" Male NPT
Case 600
650546
1/4" Female JIC Swivel × 3/8" Male NPT
—
650554
5/16" Female JIC Swivel × 1/4" Male NPT
—
650564
3/8" Female JIC Swivel × 1/4" Male NPT
Case 500
650566
3/8" Female JIC Swivel × 3/8" Male NPT
Case 350
650586
1/2" Female JIC Swivel × 3/8" Male NPT
Case 300
650588
1/2" Female JIC Swivel × 1/2" Male NPT
Case 220
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
