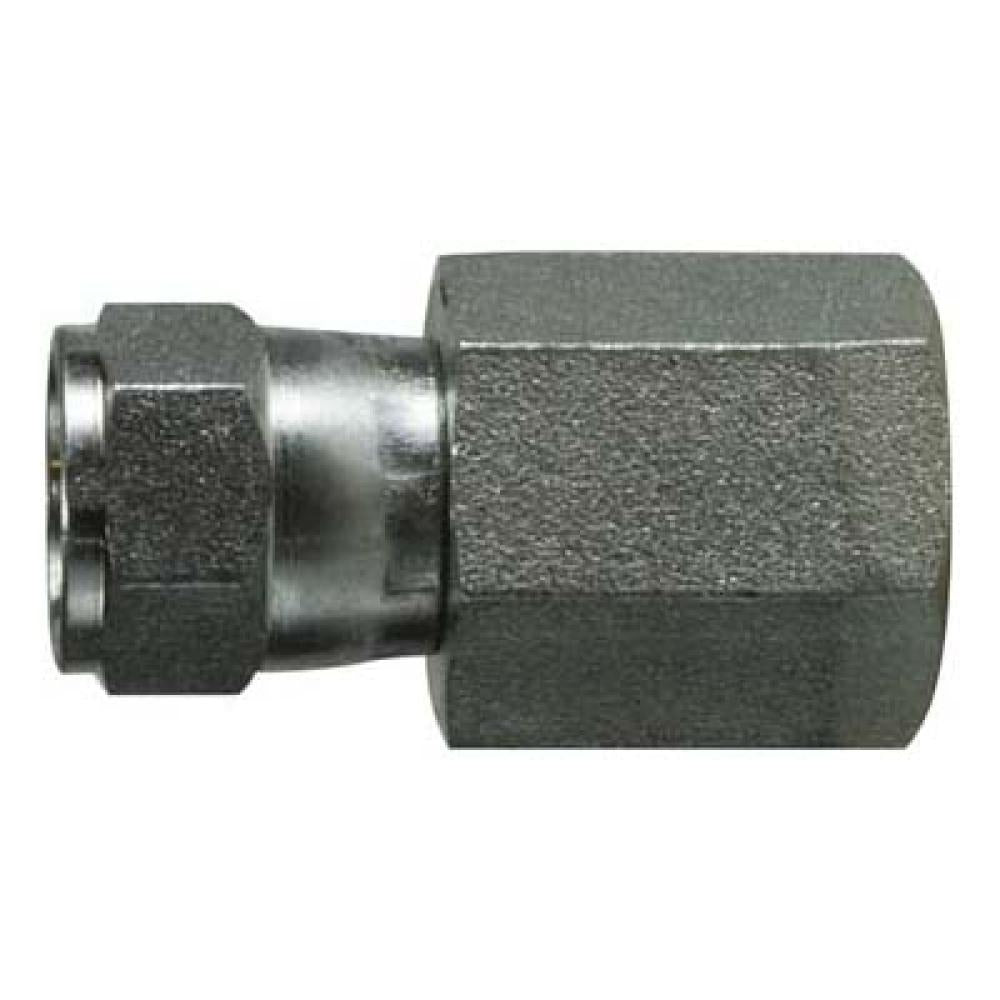

6506 Series – FJIC Swivel to Female Pipe in steel. 15 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: FJIC Swivel|FPT
Operating Temperature: 375 °F
Series: 6506
Configuration: 6506 Series – FJIC Swivel to Female Pipe
Product line: Steel JIC Swivel Adapters
Stocked part numbers: 15
Part numbers & options
Part #
Size
Pack quantities
6506106
5/8" Female JIC Swivel × 3/8" Female NPT
Case 200
6506108
5/8" Female JIC Swivel × 1/2" Female NPT
Box 150, Case 150
65061212
3/4" Female JIC Swivel × 3/4" Female NPT
Case 100
6506128
3/4" Female JIC Swivel × 1/2" Female NPT
Box 110, Case 110
65061616
1" Female JIC Swivel × 1" Female NPT
Case 84
65062020
1-1/4" Female JIC Swivel × 1-1/4" Female NPT
Case 40
65062424
1-1/2" Female JIC Swivel × 1-1/2" Female NPT
Case 30
650642
1/4" Female JIC Swivel × 1/8" Female NPT
Case 800
650644
1/4" Female JIC Swivel × 1/4" Female NPT
Case 450
650646
7/16" Female JIC Swivel × 3/8" Female NPT
—
650664
3/8" Female JIC Swivel × 1/4" Female NPT
Case 250
650666
3/8" Female JIC Swivel × 3/8" Female NPT
Case 300
650668
3/8" Female JIC Swivel × 1/2" Female NPT
Case 200
650686
1/2" Female JIC Swivel × 3/8" Female NPT
Case 250
650688
1/2" Female JIC Swivel × 1/2" Female NPT
Case 150
