6500 Series – MJIC to FJIC Swivel Elbow in steel. 15 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MJIC|FJIC Swivel
Operating Temperature: 375 ˚F
Series: 6500
Configuration: 6500 Series – MJIC to FJIC Swivel Elbow
Product line: Steel JIC Swivel Adapters
Stocked part numbers: 15
Part numbers & options
Part #
Size
Pack quantities

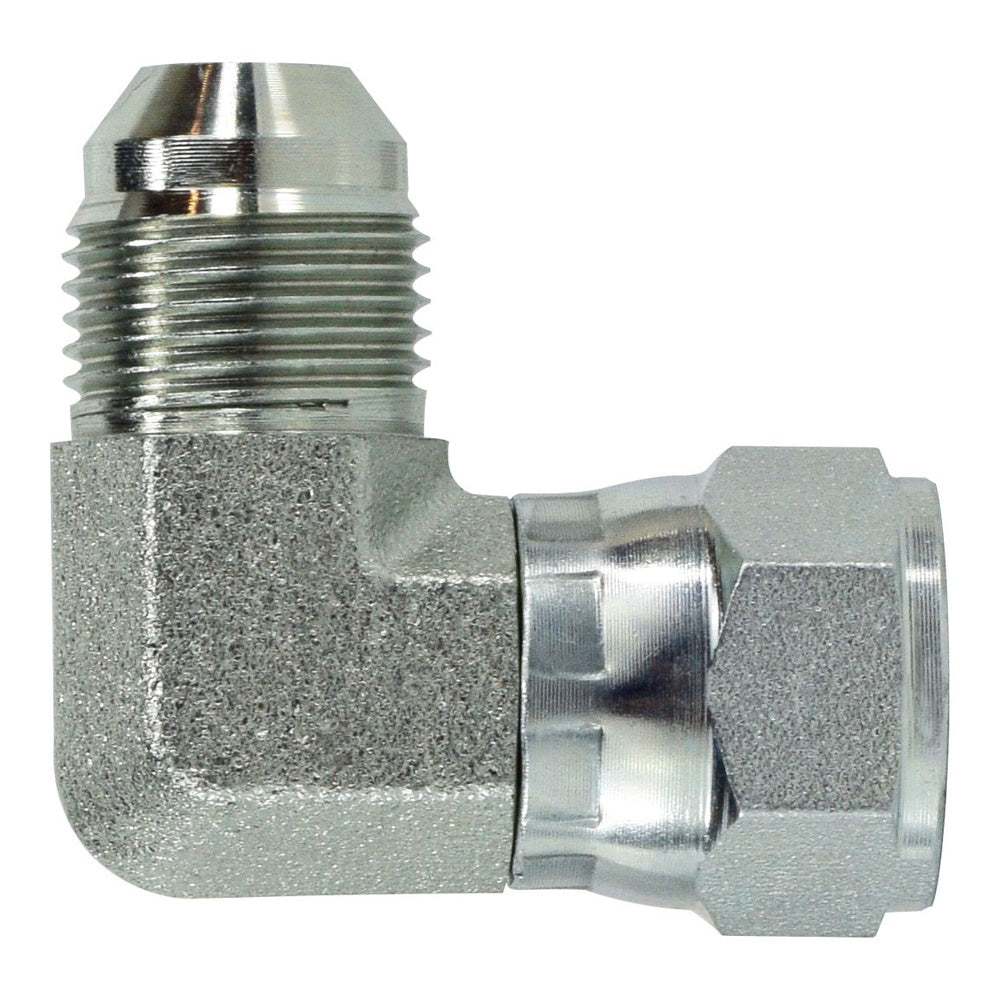

6500-06-04
3/8" Male JIC × 1/4" Female JIC Swivel
—
6500-08-12
1/2" Male JIC × 3/4" Female JIC Swivel
Box 90, Case 90
650010
5/8" Male JIC × 5/8" Female JIC Swivel
Case 110
650012
3/4" Male JIC × 3/4" Female JIC Swivel
Case 84
65001210
3/4" Male JIC × 5/8" Female JIC Swivel
Box 90, Case 90
65001216
3/4" Male JIC × 1" Female JIC Swivel
—
650014
7/8" Male JIC × 7/8" Female JIC Swivel
Case 60
650016
1" Male JIC × 1" Female JIC Swivel
Case 48
650020
1-1/4" Male JIC × 1-1/4" Female JIC Swivel
Box 32, Case 32
650024
1-1/2" Male JIC × 1-1/2" Female JIC Swivel
Case 16
65004
1/4" Male JIC × 1/4" Female JIC Swivel
Case 750
65005
5/16" Male JIC × 5/16" Female JIC Swivel
Case 460
65006
3/8" Male JIC × 3/8" Female JIC Swivel
Case 400
650068
3/8" Male JIC × 1/2" Female JIC Swivel
—
65008
1/2" Male JIC × 1/2" Female JIC Swivel
Case 180
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
