7022 Series – FJIC Swivel to MBSPP in steel. 10 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: Adapter
Connection Type: FJIC Swivel|MBSPP
Operating Temperature: 375 deg F
Configuration: 7022 Series – FJIC Swivel to MBSPP
Product line: Steel BSPP Adapters
Stocked part numbers: 10
Part numbers & options
Part #
Size
Pack quantities

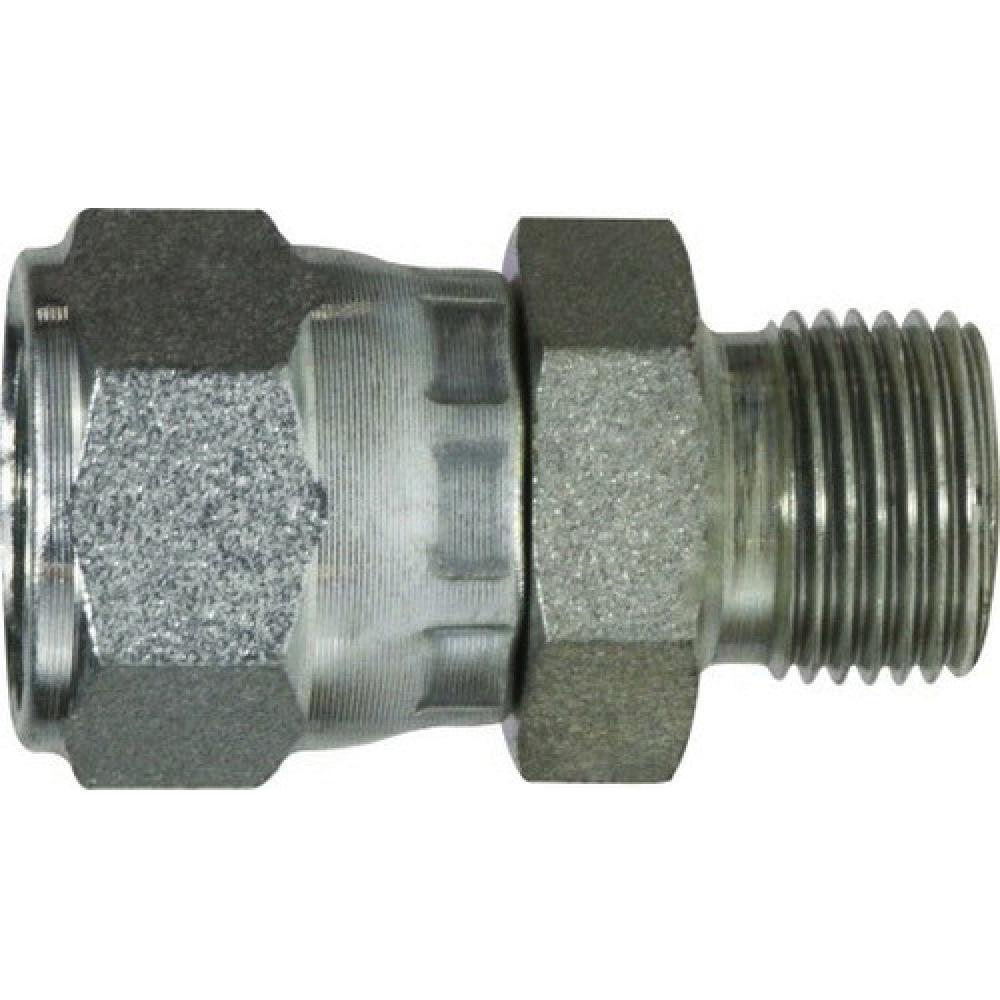

7022-06-08
3/8" Female JIC Swivel × 1/2" Male BSPP
—
7022-08-10
1/2" Female JIC Swivel × 5/8" Male BSPP
—
7022-08-12
1/2" Female JIC Swivel × 3/4" Male BSPP
—
7022-10-06
5/8" Female JIC Swivel × 3/8" Male BSPP
—
7022-10-10
5/8" Female JIC Swivel × 5/8" Male BSPP
Box 150, Case 150
7022-12-08
3/4" Female JIC Swivel × 1/2" Male BSPP
Box 130, Case 130
7022-12-16
3/4" Female JIC Swivel × 1" Male BSPP
Box 78, Case 78
70221616
1" Female JIC Swivel × 1" Male BSPP
Box 78, Case 78
702264
3/8" Female JIC Swivel × 1/4" Male BSPP
—
702266
3/8" Female JIC Swivel × 3/8" Male BSPP
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
