MAF/USA Flare x MIP 45-Deg Elbows in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: 45 deg Elbow
Temperature Rating: -65 to 250 deg F
Configuration: MAF/USA Flare x MIP 45-Deg Elbows
Product line: MAF/USA FLARE
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities

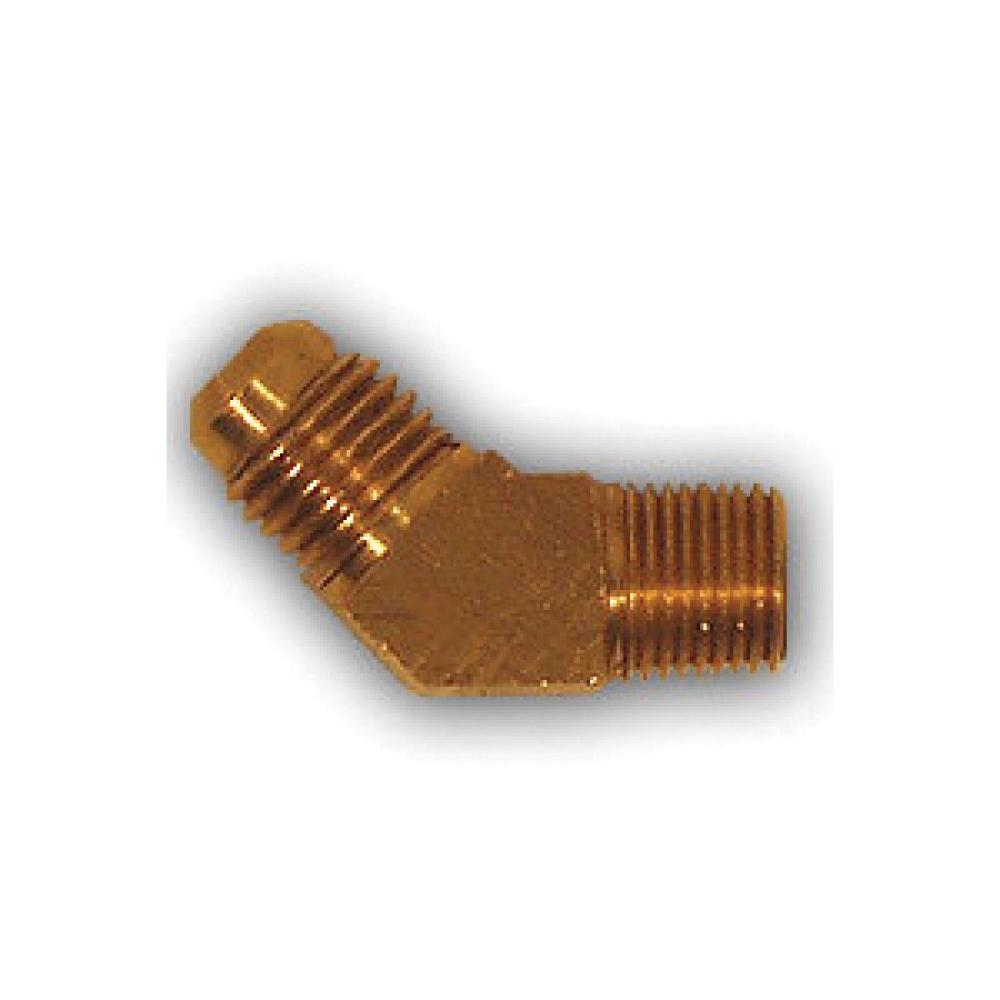

254X10
5/8" SAE 45 deg Male Flared × 1/2" MPT
Box 100
254X4
1/4" SAE 45 deg Male Flared × 1/8" MPT
Box 1000
254X4X4
1/4" SAE 45 deg Male Flared × 1/4" MPT
—
254X5
5/16" SAE 45 deg Male Flared × 1/8" MPT
—

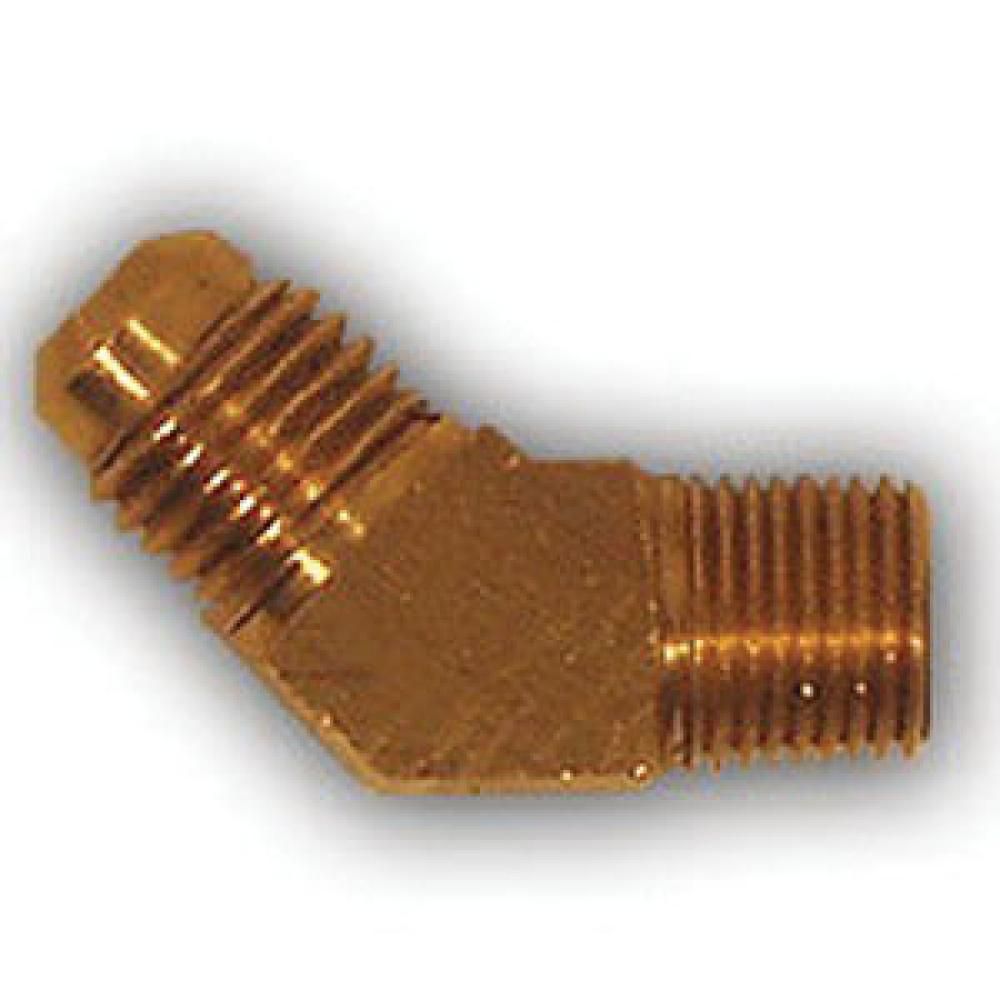

254X6
3/8" SAE 45 deg Male Flared × 1/4" MPT
—
254X6X6
3/8" SAE 45 deg Male Flared × 3/8" MPT
Box 275
254X8
1/2" SAE 45 deg Male Flared × 3/8" MPT
Box 200
254X8X8
1/2" SAE 45 deg Male Flared × 1/2" MPT
—
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
