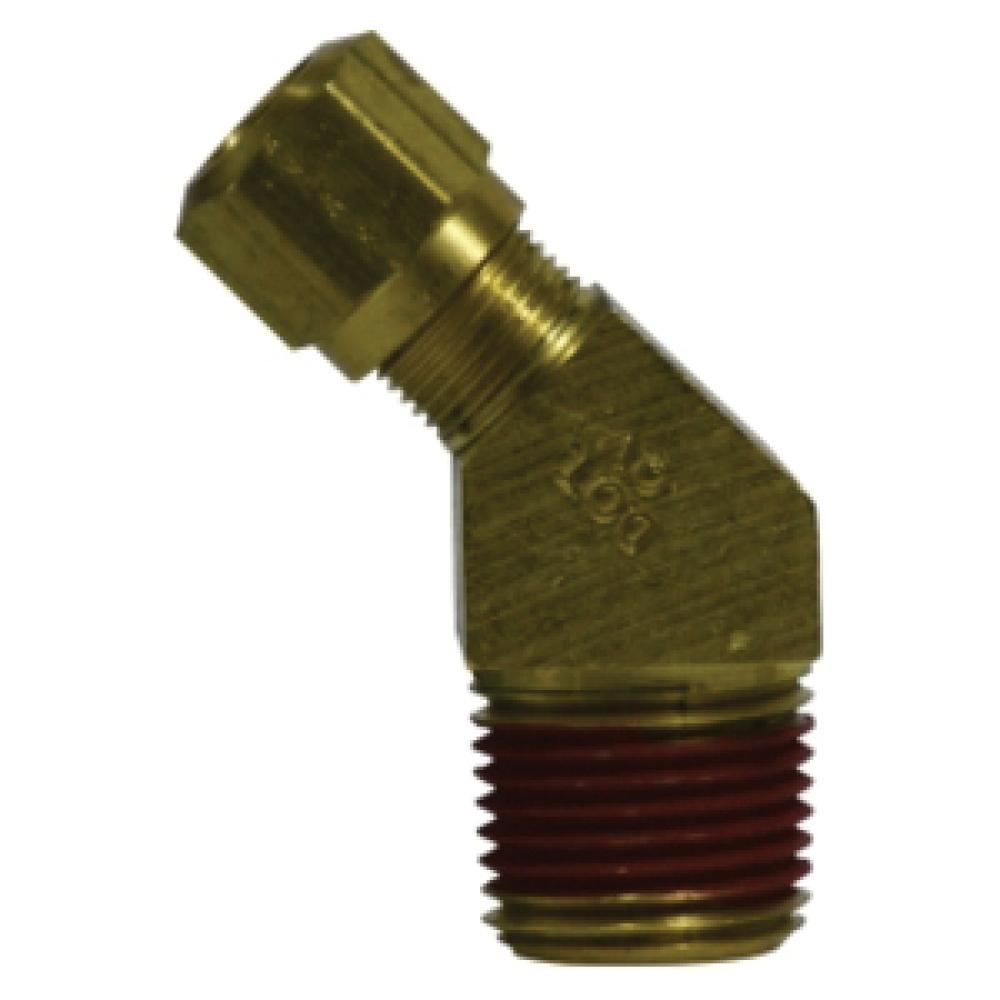

NAB 45-deg Male Elbow in brass. 12 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Configuration: NAB 45-deg Male Elbow
Product line: D.O.T. Air Brake Nylon Tubing
Stocked part numbers: 12
Part numbers & options
Part #
Size
Pack quantities
18335-106
5/8" Tube × 3/8" MPT
Bag 10, Case 150
38148
1/4" Tube OD × 1/8" Male NPT
Bag 50, Case 500
38149
1/4" Tube OD × 1/4" Male NPT
Bag 50, Case 450
38150
3/8" Tube OD × 1/8" Male NPT
Bag 50, Case 300
38151
3/8" Tube OD × 1/4" Male NPT
Bag 50, Case 250
38152
3/8" Tube OD × 3/8" Male NPT
Bag 25, Case 200
38153
3/8" Tube OD × 1/2" Male NPT
Bag 20, Case 150
38154
1/2" Tube OD × 3/8" Male NPT
Bag 25, Case 200
38155
1/2" Tube OD × 1/2" Male NPT
Bag 10, Case 150
38156
5/8" Tube OD × 1/2" Male NPT
Bag 10, Case 100
38157
1/2" Tube OD × 1/4" Male NPT
Bag 25, Case 200
38158
3/4" Tube OD × 1/2" Male NPT
Bag 10, Case 80
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
