NAB Male 45-Deg Elbows in brass. 9 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: 45 deg Elbow
Connection Type: Tube|MNPT
Pressure Rating: 150 psi
Temperature Rating: -40 to 200 deg F
Configuration: NAB Male 45-Deg Elbows
Product line: MAF AIR BRAKE
Stocked part numbers: 9
Part numbers & options
Part #
Size
Pack quantities

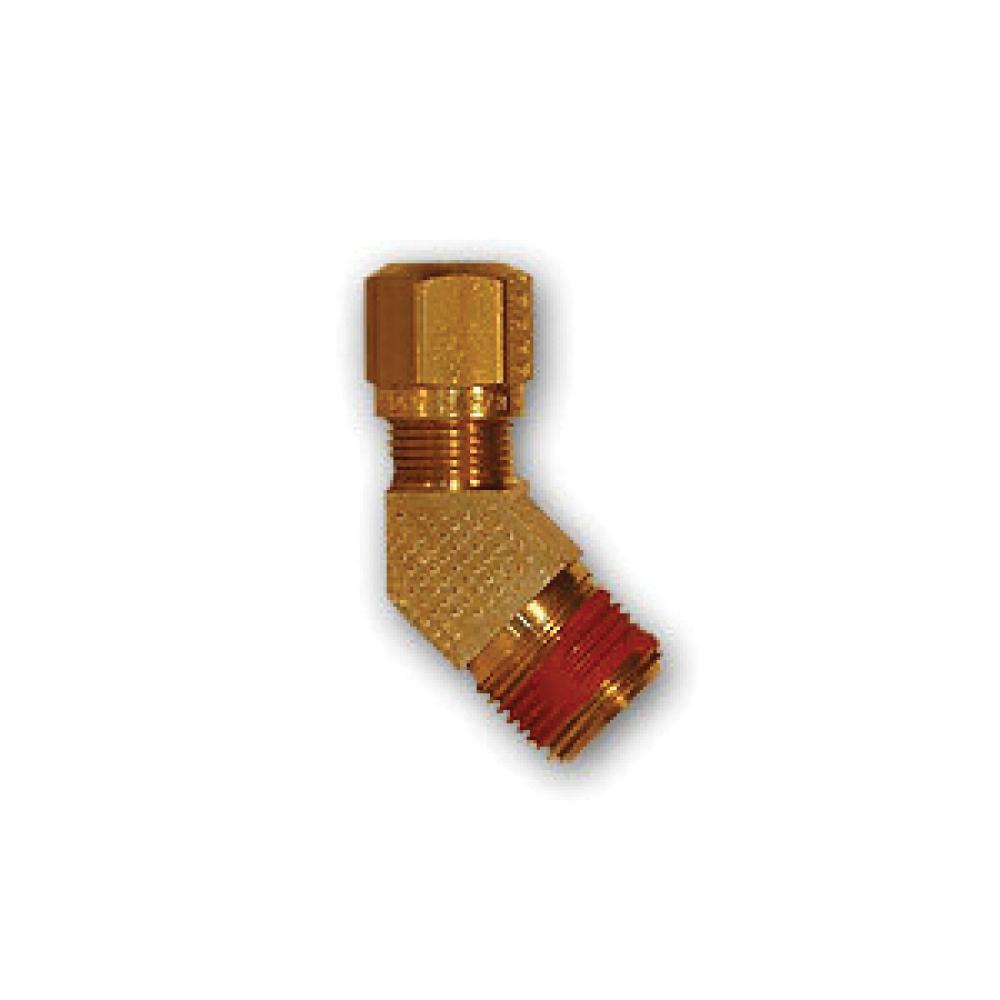

NT6945-106VS
5/8" Tube OD × 3/8" Male NPT
Box 125
NT6945-42VS
1/4" Tube OD × 1/8" Male NPT
—
NT6945-44VS
1/4" Tube OD × 1/4" Male NPT
Box 425

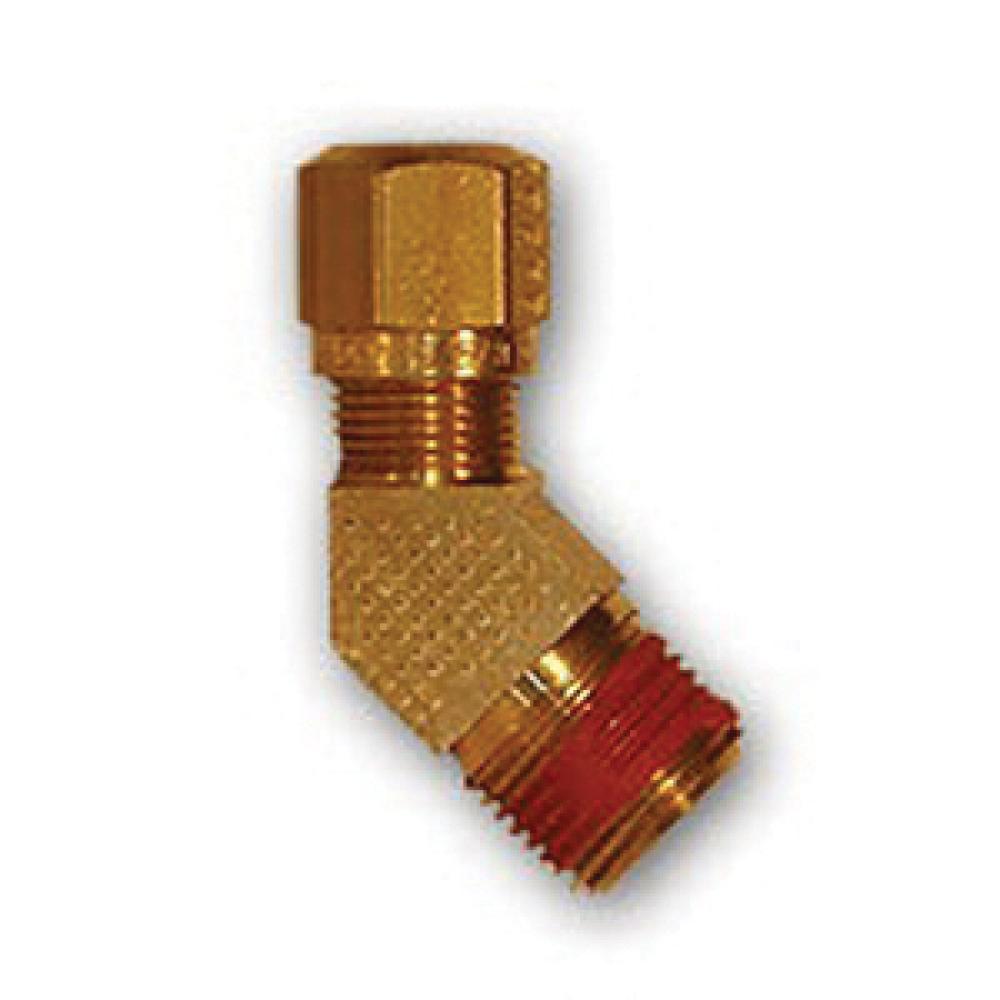

NT6945-62VS
3/8" Tube OD × 1/8" Male NPT
Case 375
NT6945-64VS
3/8" Tube OD × 1/4" Male NPT
—
NT6945-66VS
3/8" Tube OD × 3/8" Male NPT
Box 225
NT6945-68VS
3/8" Tube OD × 1/2" Male NPT
—
NT6945-84VS
1/2" Tube OD × 1/4" Male NPT
—
NT6945-88VS
1/2" Tube OD × 1/2" Male NPT
Box 125
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
