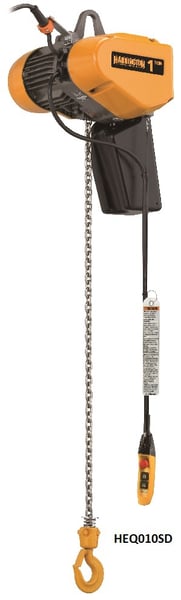

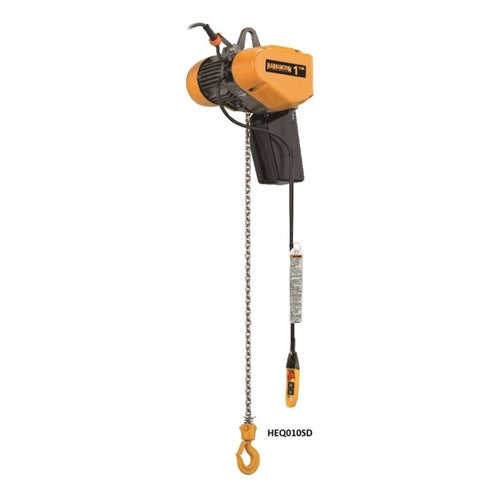

Harrington Vfd Controlled Dual Speed Electric Chain Hoists

Harrington Vfd Controlled Dual Speed Electric Chain Hoists

Store rating 5.0 (2 reviews)

Since 2024 · St. Anthony, IN · Net 30 for approved business accounts

$3,734.78 USD
Shipping calculated at checkout.

Quick add one size

Need several sizes? Use the order table (8 sizes) ↓

Freight is estimated in your cart. You can request an exact freight quote there.

Buying in bulk? Get a quote

Business accountsTax-exemptSecure checkout

SKU:HEQ001SD

The EQ/SEQ dual speed electric chain hoists are loaded with cutting-edge features such as a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Both 3-phase EQ and 1-phase SEQ come standard as dual speed via variable frequency drive (VFD), a true revolution for single phase hoist controls. Both hoists have ASME H4 classification, IP55 rated enclosure and IP65 pendant. 208-230V/460-3-50/60 or 380-460V-3-50/60 power supply on the EQ, and 115/230V-1-60 (reconnectable) power supply on the SEQ. Optional suspension bar available for low headroom or enclosed track trolley applications. Push/Pull, geared or motorized trolleys available. Call for details. FOB Shipping Po

  • Ergonomically designed for easy installation and operation.
  • IP55 rated for indoor/outdoor use.
  • 5 year brake warranty.

Specifications above are the manufacturer's published figures. Confirm exact ratings for your chosen model before ordering.

View full details

Buying from Uline, Grainger or McMaster? Send us your list and we'll price it line by line, usually within 1 business day.
Variant Variant total Quantity Price Variant total
Vfd Controlled Dual Speed Electric Chain Hoists
SEQ 1-Phase · 1/8 ton cap. · 56 lift speed fpm-high · 9.3 lift speed fpm-low · 72 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HSEQ001SD
SEQ 1-Phase · 1/8 ton cap. · 56 lift speed fpm-high · 9.3 lift speed fpm-low · 72 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HSEQ001SD
$3,635.30/ea
$3,635.30/ea
Vfd Controlled Dual Speed Electric Chain Hoists
SEQ 1-Phase · 1/4 ton cap. · 33 lift speed fpm-high · 5.5 lift speed fpm-low · 43 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HSEQ003SD
SEQ 1-Phase · 1/4 ton cap. · 33 lift speed fpm-high · 5.5 lift speed fpm-low · 43 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HSEQ003SD
$3,834.27/ea
$3,834.27/ea
Vfd Controlled Dual Speed Electric Chain Hoists
SEQ 1-Phase · 1/2 ton cap. · 25 lift speed fpm-high · 4.2 lift speed fpm-low · 32 lift speed fpm-no load high speed · 18.0 min. headroom top hook · 16.1 min. headroom susp. barItem # HSEQ005SD
SEQ 1-Phase · 1/2 ton cap. · 25 lift speed fpm-high · 4.2 lift speed fpm-low · 32 lift speed fpm-no load high speed · 18.0 min. headroom top hook · 16.1 min. headroom susp. barItem # HSEQ005SD
$4,068.46/ea
$4,068.46/ea
Vfd Controlled Dual Speed Electric Chain Hoists
SEQ 1-Phase · 1 ton cap. · 17 lift speed fpm-high · 3.9 lift speed fpm-low · 22 lift speed fpm-no load high speed · 20.7 min. headroom top hook · 18.3 min. headroom susp. barItem # HSEQ010SD
SEQ 1-Phase · 1 ton cap. · 17 lift speed fpm-high · 3.9 lift speed fpm-low · 22 lift speed fpm-no load high speed · 20.7 min. headroom top hook · 18.3 min. headroom susp. barItem # HSEQ010SD
$4,538.38/ea
$4,538.38/ea
Vfd Controlled Dual Speed Electric Chain Hoists
EQ 3-Phase · 1/8 ton cap. · 56 lift speed fpm-high · 9.3 lift speed fpm-low · 72 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HEQ001SD
EQ 3-Phase · 1/8 ton cap. · 56 lift speed fpm-high · 9.3 lift speed fpm-low · 72 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HEQ001SD
$3,734.78/ea
$3,734.78/ea
Vfd Controlled Dual Speed Electric Chain Hoists
EQ 3-Phase · 1/4 ton cap. · 33 lift speed fpm-high · 5.5 lift speed fpm-low · 43 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HEQ003SD
EQ 3-Phase · 1/4 ton cap. · 33 lift speed fpm-high · 5.5 lift speed fpm-low · 43 lift speed fpm-no load high speed · 17.3 min. headroom top hook · 15.6 min. headroom susp. barItem # HEQ003SD
$4,549.09/ea
$4,549.09/ea
Vfd Controlled Dual Speed Electric Chain Hoists
EQ 3-Phase · 1/2 ton cap. · 25 lift speed fpm-high · 4.2 lift speed fpm-low · 32 lift speed fpm-no load high speed · 18.0 min. headroom top hook · 16.1 min. headroom susp. barItem # HEQ005SD
EQ 3-Phase · 1/2 ton cap. · 25 lift speed fpm-high · 4.2 lift speed fpm-low · 32 lift speed fpm-no load high speed · 18.0 min. headroom top hook · 16.1 min. headroom susp. barItem # HEQ005SD
$4,644.01/ea
$4,644.01/ea
Vfd Controlled Dual Speed Electric Chain Hoists
EQ 3-Phase · 1 ton cap. · 23 lift speed fpm-high · 3.8 lift speed fpm-low · 30 lift speed fpm-no load high speed · 20.7 min. headroom top hook · 18.3 min. headroom susp. barItem # HEQ010SD
EQ 3-Phase · 1 ton cap. · 23 lift speed fpm-high · 3.8 lift speed fpm-low · 30 lift speed fpm-no load high speed · 20.7 min. headroom top hook · 18.3 min. headroom susp. barItem # HEQ010SD
$5,170.55/ea
$5,170.55/ea
