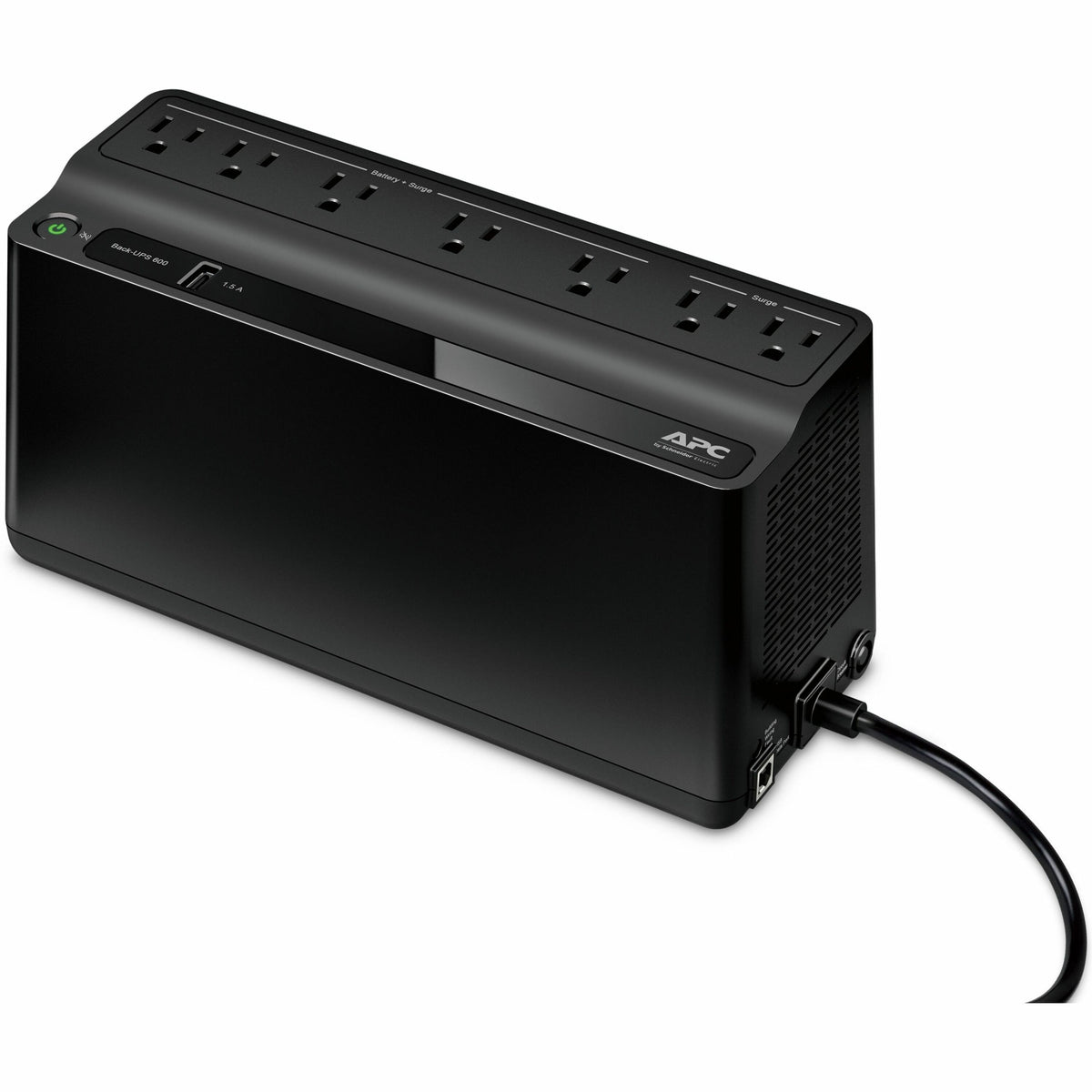

APC Back-UPS 600VA Tower UPS - Tower - 10 Hour Recharge - 3.20 Minute Stand-by - 120 V Input - 120 V AC Output - 7 x Battery/Surge Outlet

General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:BE600M1
Brand Name:APC
Product Line:Back-UPS
Product Name:Back-UPS 600VA Tower UPS
Marketing Information:

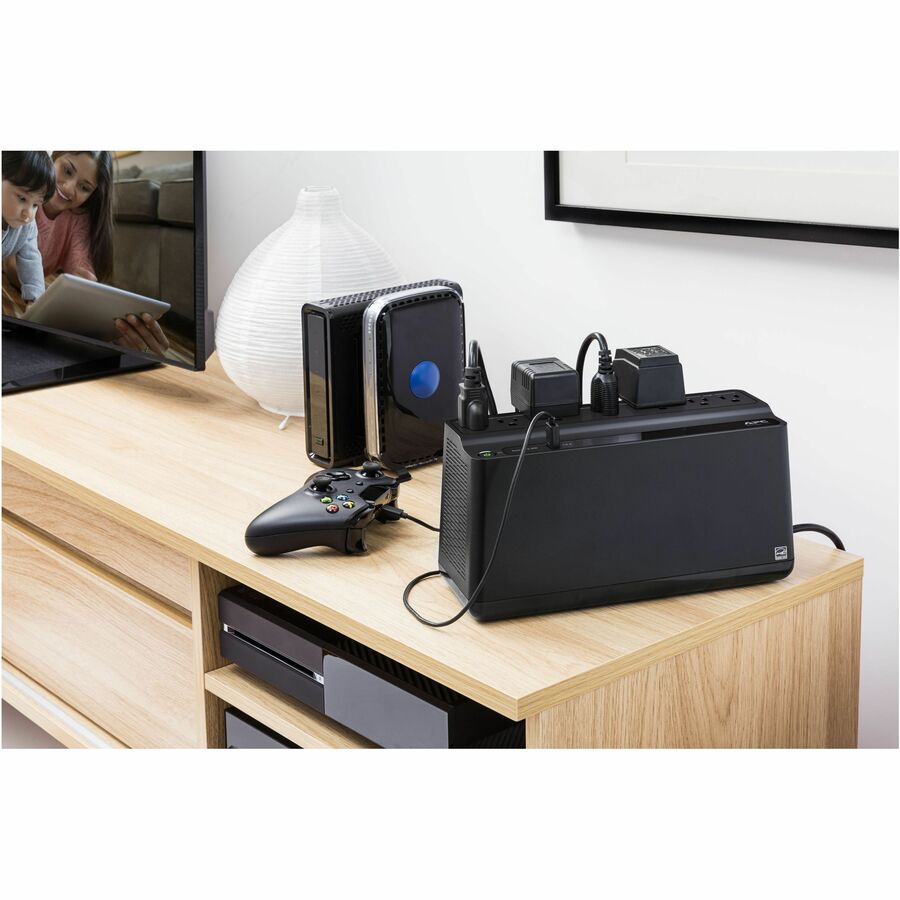

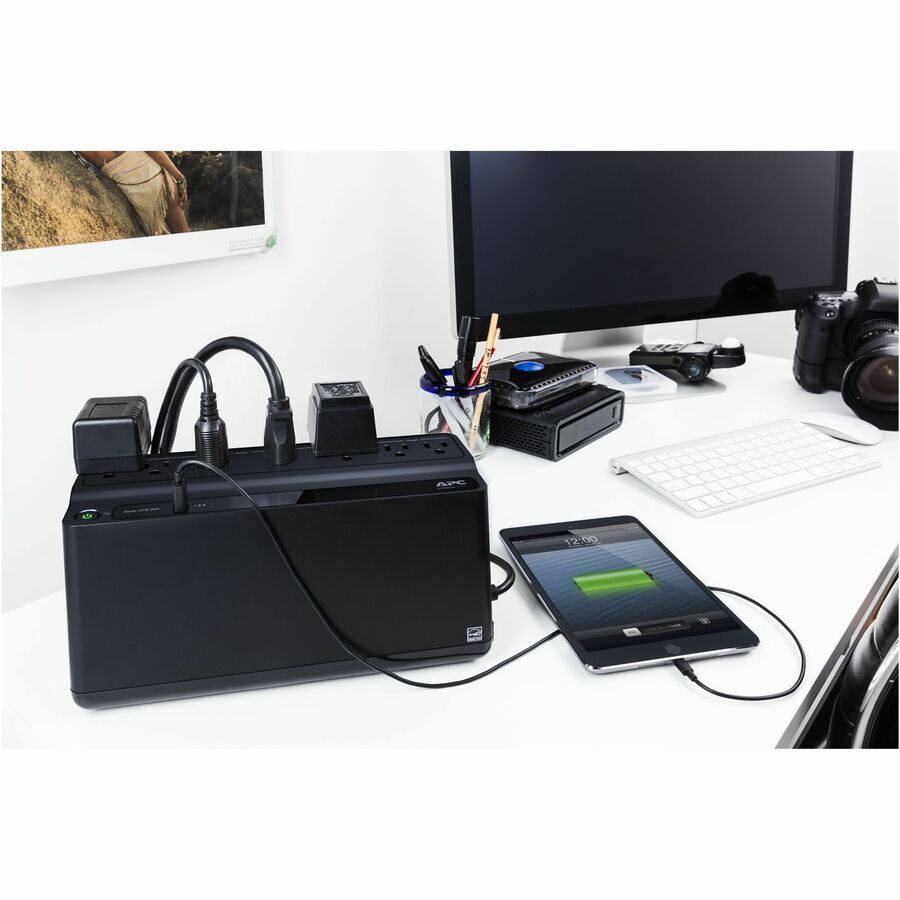

• This APC Back-UPS offers power and surge protection for wireless networks, computers, gaming consoles and other electronics in your home or business. The 600VA floor/wall mount UPS has 7 total outlets, 5 of which are battery back up and surge protection, and 2 that are surge protection only. It has a surge energy rating of 490 Joules. It has one USB port for smart charging of personal devices. This battery backup is designed to power wireless home networking devices (router and modem) for hours during utility outages so you can stay connected and productive. Connect and charge mobile devices via the 1 USB port provides a maximum of 1.5A . The USB port will provide power when the UPS is both on utility and battery power. This computer backup offers lifetime guaranteed surge protection with a

• 75,000 equipment protection policy. The side of this 600VA UPS includes 2 keyhole sockets to easily mount the battery backup on a wall in hard to reach installations. The outlets are arranged with spaces to accommodate both average sized power plugs and transformer block power plugs. This UPS has a 3-year warranty and CE product certification. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. Package Contains UPS, user manual

Packaged Quantity:1 Each
Product Type:Standby UPS

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:

• 5 x NEMA 5-15R
• 2 x NEMA 5-15R Surge

Number of Battery & Surge Outlets:7
Number of Surge-only Outlets:2
Cord Length:5 ft
Transfer Time:6 ms
Phase:Single Phase
Application/Usage:

• Electronic
• Computer
• Gaming Console
• Security System
• Television
• Cable Box/DVR
• Wireless Router
• Modem
• Wi-Fi Router
• IOT Device
• Network

Power Description

---

Load Capacity (VA):600 VA
Load Capacity (Watt):330 W
Input Voltage:120 V
Input Voltage Range:92 V AC - 139 V AC
Output Voltage:120 V AC
Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Stepped Approximated Sine Wave
Surge Energy Rating:490 J

Management

---

Alarm:

• On Battery
• Low Battery
• Overload

Controls/Indicators

---

Status Indicators:

LED Status Display:

• On Line
• On Battery
• Replace Battery
• Overload

Battery Information

---

Battery Characteristics:Maintenance-free, Sealed, Leak-proof
Battery Chemistry:Lead Acid
Battery Energy:237.6 kJ
Backup/Run Time (Full Load):3.20 Minute
Backup/Run Time (Half Load):11.80 Minute
Typical Battery Recharge Time:10 Hour
Hot Swappable:Yes
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:9842.52 ft
Maximum Storage Elevation:49212.60 ft
Storage Relative Humidity:0% - 95%
Sound Emission (A-Weighted):35 dB(A)
Thermal Dissipation:4.69 W

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:5.47"
Width:10.79"
Depth:4.13"
Form Factor:Tower
Mounting Preference:No Preference
Weight (Approximate):7.69 lb

Miscellaneous

---

For Country/Region:United States
Package Contents:

Back-UPS 600VA Tower UPS

User manual

Certifications & Standards:California (CEC) Battery Charger|cTUVus|NOM
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BE600M1_ROHS_DECLARATION&p_FileName=BE600M1KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://download.schneider-electric.com/files?p_Doc_Ref=BE600M1_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL:https://download.schneider-electric.com/files?p_Doc_Ref=BE600M1_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Profile Availability:https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712010EN&p_File_name=ENVPEP1712010_V3.pdf
End of Life Manual Availability:https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712010_EN&p_File_name=ENVEOLI1712010_EN.pdf
California Proposition 65 Warning:WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Energy Star URL:https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging:No
Reach Compliance Date:2/1/2026
Product Contributes Saved Avoided Emissions:No
Packaging Contains Recycled Cardboard:Yes
Minimum Percentage of Recycled Metal Content:0

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:Battery: 12 month(s)|UPS: 36 month(s)
Directly Connected Equipment Guarantee:Lifetime
