Printed Carton Sealing Tape Buying Guide: Hot Melt vs. Acrylic vs. Water-Activated

Carton sealing tape is the cheapest thing on the packaging line and the one most likely to fail in a way you find out about from a customer. A box that opens in transit is a damage claim, a re-ship and a phone call, and the tape that caused it saved you a fraction of a cent per carton.

There are three adhesive systems in common use. Each of them works well in the conditions it was designed for and each of them fails predictably outside those conditions.

The three systems at a glance

	Hot melt	Acrylic	Water-activated (gummed / kraft)
Adhesive	Synthetic rubber resin, pressure-sensitive	Acrylic, pressure-sensitive	Starch-based, activated by water
Initial grab	High and immediate	Low, builds over hours	Bonds into the fibers as it dries
Long-term aging	Yellows and dries out	Stays clear and stable for years	Stable
Cold performance	Poor — stiffens and releases	Good — wide temperature range	Good
Heat performance	Poor — softens and creeps	Good	Good
On recycled / dusty cartons	Fair	Poor	Excellent
Tamper evidence	Low	Low	High — cannot be removed and replaced
Strips needed per carton	Usually three	Usually three	Usually one
Equipment	Hand dispenser or case sealer	Hand dispenser or case sealer	Water-activated dispenser required

Hot melt

Use it for: general-purpose carton sealing at room temperature, high-speed case sealers, recycled corrugated, heavy cartons, anything that needs to hold the moment it goes down.

Hot melt has the highest initial tack of the three. It grabs immediately, holds a heavy flap that wants to spring back, and it performs better on rough recycled board than acrylic does. It unwinds cleanly at speed, which is why it is the default on most case-sealing equipment. Per roll it is generally the more expensive of the two pressure-sensitive options.

Where it fails: temperature, in both directions. In cold — a refrigerated warehouse, a winter trailer, an unheated dock — the adhesive stiffens and lets go, and the classic symptom is a carton that was sealed fine indoors and arrives with the flaps open. In heat, the adhesive softens and the tape creeps, so the flaps slowly work open under load.

It also ages badly. Hot melt yellows and dries out over months. If cartons sit in storage for a long time before shipping, or if they are stored in the sun, the tape you applied is not the tape that is holding them when they move.

Acrylic

Use it for: cold storage, long-term warehousing, anything stored outdoors or in sunlight, temperature-variable environments, and cartons that need to look clean months later.

Acrylic is the stable one. It handles a wide temperature range, it resists UV, and it stays clear rather than yellowing. If cartons are going to sit for a year, or move through a cooler, or get stored under a skylight, acrylic is the correct answer. It is generally the lower-cost pressure-sensitive option per roll.

Where it fails: initial tack. Acrylic goes down with relatively little grab and builds its bond over a period of hours. On a smooth, clean, new carton this is fine. On a dusty carton, a heavily recycled board with a loose fibrous surface, or a flap under spring tension, it will not hold long enough to build, and it pops.

The diagnostic: if your tape is coming loose within minutes of application, that is an acrylic-on-a-difficult-surface problem and the fix is hot melt or water-activated. If your tape is coming loose after weeks or in the cold, that is a hot-melt problem and the fix is acrylic.

Water-activated tape (gummed kraft)

Use it for: tamper-evident shipping, dusty and heavily recycled cartons, cold and humid environments, heavy cases, and anywhere you want a single-strip seal and a branded look.

Water-activated tape is a paper tape with a starch adhesive that is dry until it is wetted. Once applied, the adhesive penetrates into the corrugated fibers and dries into the board. The result is not a tape sitting on top of a carton — it is a bond into the carton, and it is generally stronger than the board itself.

That changes several things at once:

• One strip usually does it. Pressure-sensitive sealing typically wants three strips — the center seam plus two wraps over the edges. A properly applied water-activated strip on the center seam is normally enough, which changes the per-carton economics considerably even though the tape costs more per foot.
• It does not care about dust or recycled content. The adhesive goes into the fiber rather than clinging to the surface, so a dusty carton or a low-grade recycled board that defeats acrylic is not a problem.
• It is genuinely tamper-evident. You cannot lift it and put it back. Removing it tears the carton surface, and the damage is obvious. Pressure-sensitive tape can be peeled and re-laid by someone who is careful, and this is a real problem on high-value shipments.
• It is paper. It recycles with the carton and it takes print well.

Where it costs you: it requires a dispenser. Water-activated tape cannot be applied from a hand gun — it needs a manual or electric taper that wets and cuts it. That is a capital item, and for an operation sealing a handful of cartons a day it is hard to justify. There is also a learning curve on water setting: too dry and it does not bond, too wet and the paper cockles.

Reinforced vs. non-reinforced

Non-reinforced gummed tape is plain kraft paper with the starch adhesive. It is the lower-cost version and it is appropriate for light and medium cartons where the seal, not the tensile strength, is what you need.

Reinforced gummed tape has fiberglass filaments laminated between two layers of kraft — typically running lengthwise and cross-wise. It resists tearing and splitting, and it holds heavy cartons and cartons that get handled hard. It costs more per foot.

The rule of thumb: reinforced when the carton is heavy, the contents are valuable, or the box is going through a rough distribution network. Non-reinforced when the job is sealing and presentation on ordinary cartons. If you are already buying water-activated tape for tamper evidence on high-value goods, reinforced is usually the consistent choice.

The cold and dusty carton problem, specifically

These two conditions account for most tape failures, and they point to different answers.

Cold. Every pressure-sensitive adhesive has a minimum application temperature and a minimum service temperature, and they are different numbers. The application minimum is the one that catches people — a tape can be rated to serve down to a very low temperature and still be unable to make a bond if it is applied at that temperature. If you are taping cartons inside a cooler or on a winter dock, ask for both numbers, not just the service range. Acrylic generally wins here among pressure-sensitives; water-activated is largely unaffected.

Dusty and recycled. Recycled corrugated has a loose, low-energy surface with free fiber and clay dust on it. A pressure-sensitive adhesive bonds to that dust layer, and the dust layer is not attached to anything. It looks sealed and it peels off in a day. Hot melt tolerates this better than acrylic; water-activated ignores it entirely because it bonds into the fiber rather than onto it.

If tape has been failing and nobody knows why, the fastest diagnostic is to note when it fails — immediately, within a day, or after weeks — and where the adhesive ends up. Adhesive still on the tape means it never bonded to the board, which is a surface or application-temperature problem. Adhesive split between tape and board means the bond was made and then overloaded, which is a strength or strip-count problem.

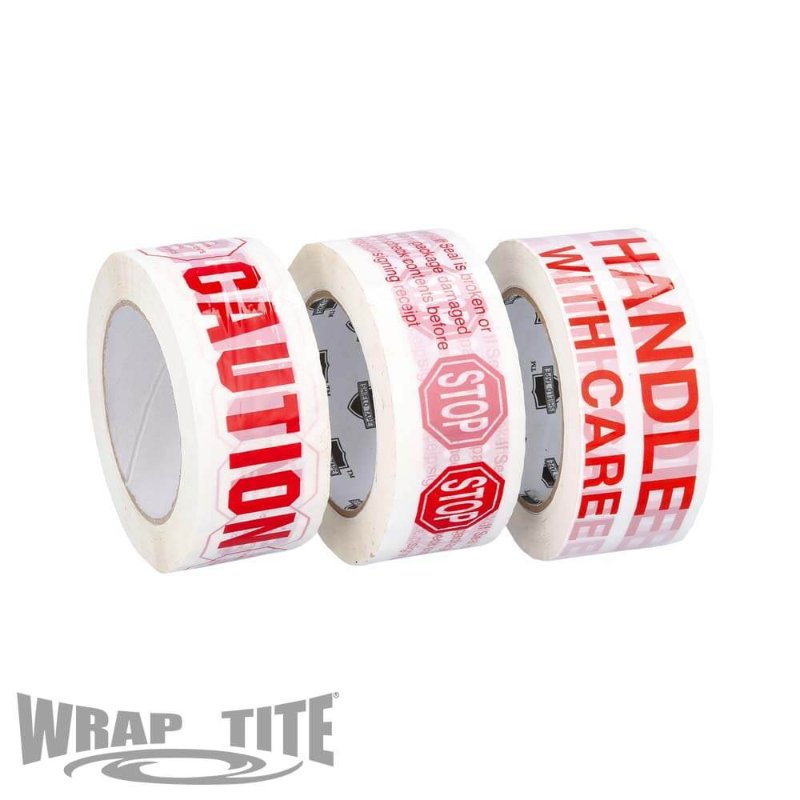

Custom printing

Printed tape is one of the few places where branding and security are genuinely the same purchase.

Security. A carton sealed with your printed tape is obviously your carton, and it is obviously intact. If someone opens it and reseals it with clear tape, that is visible from across a dock. On pilferage-prone routes this is a meaningful deterrent for very little money, and it is far cheaper than any other tamper-evident measure. Printed water-activated tape stacks both effects — branded and physically impossible to reseal invisibly.

Branding. Your carton is the one piece of your packaging every customer definitely sees, often before they see the product. Printed tape puts a logo on it without redesigning the box, without a die charge, and without committing to a custom carton size. For companies shipping in plain stock cartons it is the cheapest branding available per impression.

Warnings and handling instructions. “Fragile,” “This Side Up,” “Inspect Before Signing,” lot or route markings — printing these on the tape means they are on every carton without a second label step.

What drives the price of a printed tape order

• Number of colors. Each color is a separate print station and a separate plate or cylinder charge. One color is dramatically cheaper than three, and a well-designed one-color tape looks better than a poorly-designed three-color one. Start at one.
• Plate or cylinder charges. A one-time tooling charge per color, paid on the first run and not on reorders as long as the artwork does not change and the tooling is retained. Ask whether it is a plate charge or a cylinder charge, what it covers, and how long the tooling is kept.
• Minimum order quantity. Printed tape has a run minimum, and it is higher than a stock tape order. Ask for the MOQ and the price breaks above it as separate numbers.
• Repeat length. How often the printed image repeats along the roll. This affects how the design lands on a carton and it interacts with the tooling, so it is a design decision, not just a cost one.
• Tape width and length. Standard widths cost less than unusual ones. Longer rolls mean fewer roll changes on a case sealer, which is a labor saving that does not show up on the tape invoice.
• Substrate. Printing on polypropylene, on a heavier film, or on kraft for water-activated all price differently.
• Lead time. Printed tape is made to order and it is not a stock item. Build the lead time into your reorder point rather than finding out about it when you are low. Ask for the current lead time on every quote — it moves.

The practical advice: get the quote as a breakdown — tooling per color, MOQ, price per roll at two or three quantities, and lead time. A single per-roll number makes it impossible to see that the second order is much cheaper than the first, which is usually the point.

Choosing

• General room-temperature sealing, case sealer, recycled board: hot melt.
• Cold storage, long-term warehousing, sunlight, temperature swings: acrylic.
• Tamper evidence, high-value contents, heavy cartons, dusty board, one-strip sealing: water-activated, reinforced if the carton is heavy.
• Branding on plain cartons at low cost: printed, in whichever of the three the environment calls for.
• Tape failing immediately: surface or application temperature. Move up in tack.
• Tape failing after weeks: aging or heat. Move to acrylic.

One more thing worth checking before you change tape: how many strips you are applying and whether the carton is overfilled. A bulging carton puts the flaps under constant tension and no tape on this list is designed to hold a box closed against its contents. That is a box-size problem wearing a tape costume.

What to have ready for a quote

• Tape width and roll length you use now, and how many rolls a year.
• How it is applied — hand dispenser, semi-automatic case sealer, automatic. Make and model helps.
• The carton: virgin or recycled board, and whether the surface is dusty or coated.
• Temperature at application and in storage and transit.
• Weight of the filled carton, and how far it travels.
• Whether tamper evidence matters.
• For printing: artwork, number of colors, and whether you want the design to repeat a specific way.
• A sample of the tape currently failing, if something is failing.

Where Supply Tie fits

Supply Tie is a distributor. We work with the converters that coat and print this tape rather than ordering off a stock list, so the recommendation between hot melt, acrylic and water-activated is driven by your environment rather than by what is in stock somewhere.

If something is failing and you are not sure why, tell us when it fails, on what board, at what temperature, and send a sample. That is usually enough to name the cause without a trial.

Request a printed carton sealing tape quote — acrylic and hot melt

Request a printed water-activated tape quote
