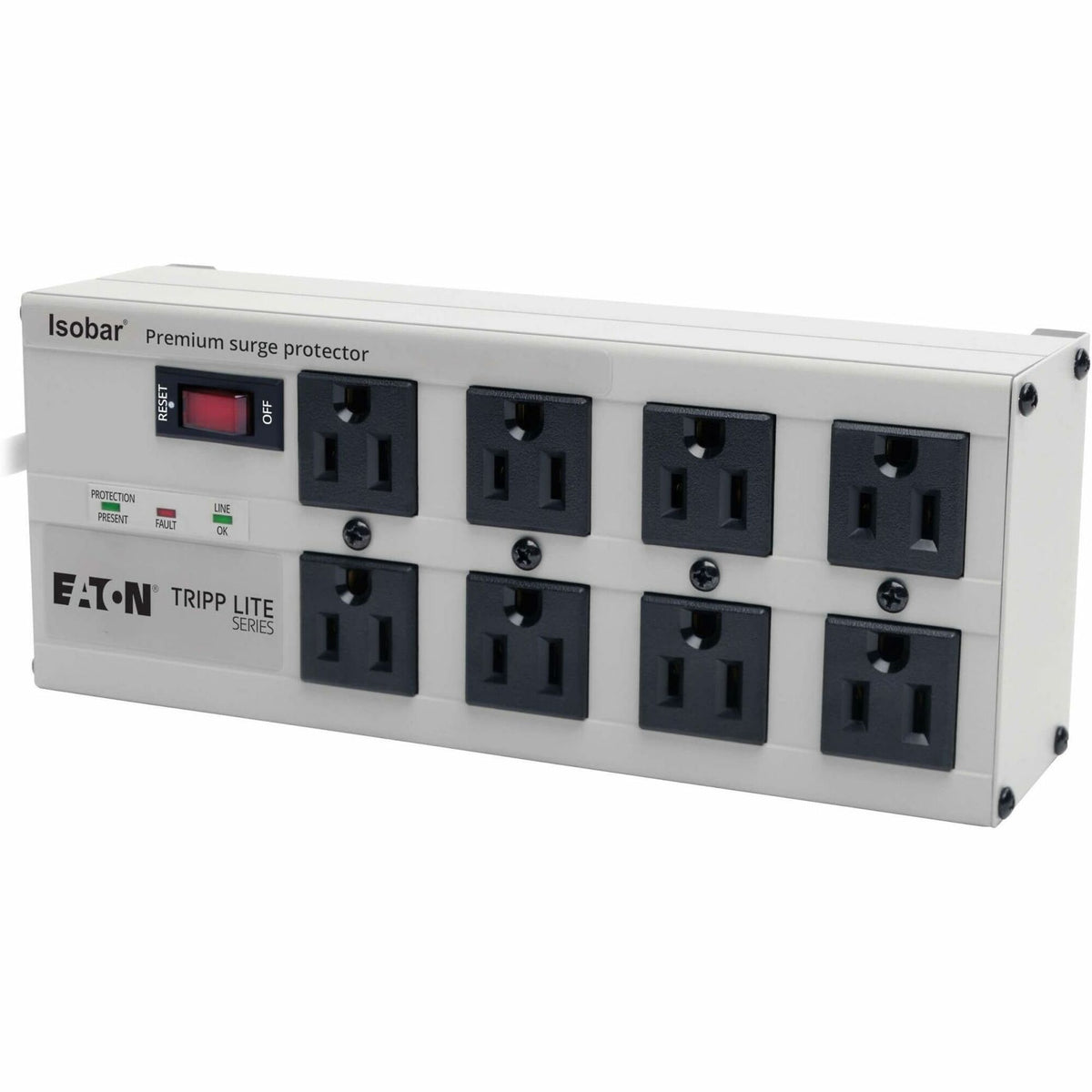

Tripp Lite series 8-outlet Premium Surge Suppressor - Light Gray - NEMA 5-15P - 8 x NEMA 5-15R - 1440 VA - 3840 J - 120 V AC Input - 120 V AC Output

General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:ISOBAR8 ULTRA
Brand Name:Tripp Lite series
Product Line:Isobar
Product Model:ISOBAR8ULTRA
Product Name:8-outlet Premium Surge Suppressor
Marketing Information:

Premium protection for essential network workstations, telecom systems, point-of-sale equipment and audio/video systems, the ISOBAR8ULTRA Isobar® 8-Outlet Surge Protector features a network-grade surge protection rating of 3840 joules to defend your sensitive electronics against even the strongest surges and spikes.

Because residential power outlets have three wires-hot line (H), neutral (N) and ground (G)-the ISOBAR8ULTRA protects all three, covering the two protection modes: full normal mode (H-N) and common mode (N-G/H-G).

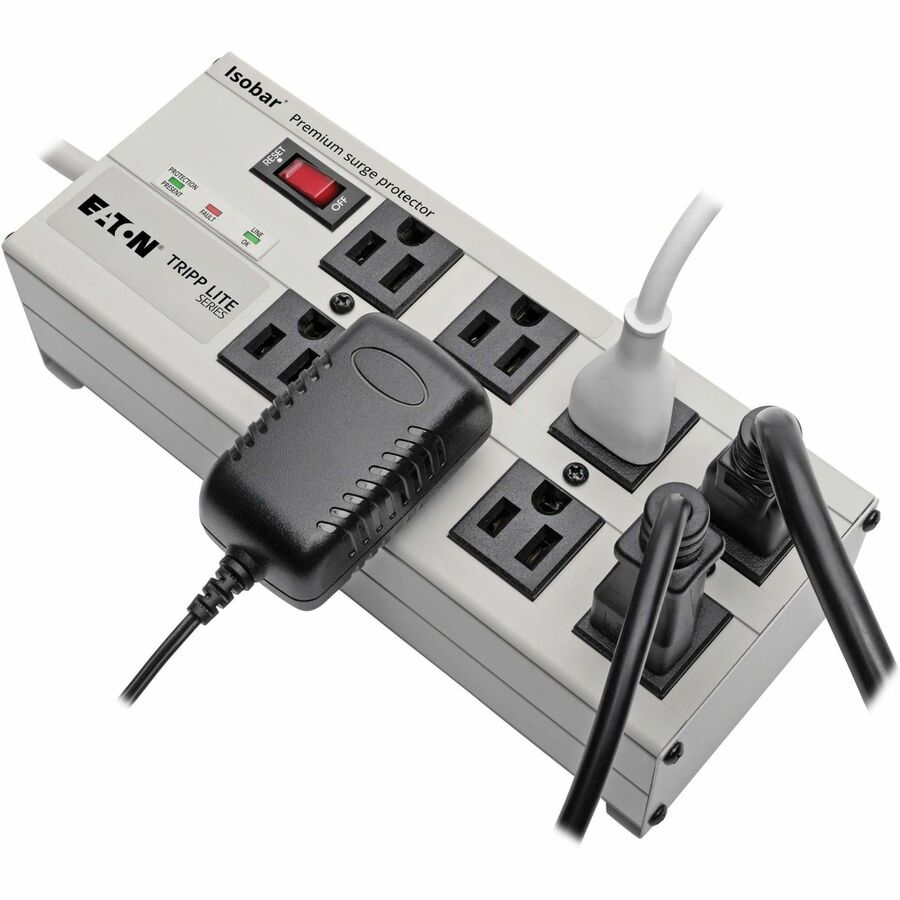

Your devices plug into eight widely spaced NEMA 5-15R outlets, which are arranged in four exclusive isolated filter banks. These internal barriers filter out electromagnetic interference (EMI) and radio frequency interference (RFI) that can disrupt your electronics and inflict hardware damage or data loss.

Included safety covers block accidental contact with unused outlets. An integrated 12A circuit breaker protects all outlets and shuts down connected equipment in case of overload. The lighted on/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm power, protection and line fault status. The 12-foot (3.7-meter) AC power cord includes a space-saving right-angle NEMA 5-15P plug.

Packaged Quantity:1 Each
Product Type:Surge Suppressor/Protector

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacles:8 x NEMA 5-15R
Features:

• LED Indicator
• Auto Shut-off

Power Description

---

Input Voltage:120 V AC
Output Voltage:120 V AC
Maximum Line Current:15 A
Maximum Surge Current:61 kA
Power Handling:1440 VA
Surge Energy Rating:3840 J
Circuit Breaker:Yes

Controls/Indicators

---

Status Indicators:

Protection Present

Line Fault

Line OK

Physical Characteristics

---

Color Family:Gray
Product Color:Light Gray
Product Material:Metal
Power Cord/Cable Length:12 ft
Height:2.5"
Width:9"
Depth:3.5"
Weight (Approximate):3.30 lb

Miscellaneous

---

Package Contents:

8-outlet Premium Surge Suppressor

4 x Outlet safety covers

Owner's manual

Additional Information:

• Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
• Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
• Keyhole mounting tabs allow permanent installation

Compatibility:

• Ideal for premium protection of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial application

Certifications & Standards:

• IEEE 587 category A and B
• ANSI C62.41
• UL1449 (Let through rating 330V)
• UL1283
• UL1363
• cUL

Recycled:No
Post-consumer-waste%:0%
Assembly Required:No
Country of Origin:Philippines
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:Lifetime
Directly Connected Equipment Guarantee:

• 50000
