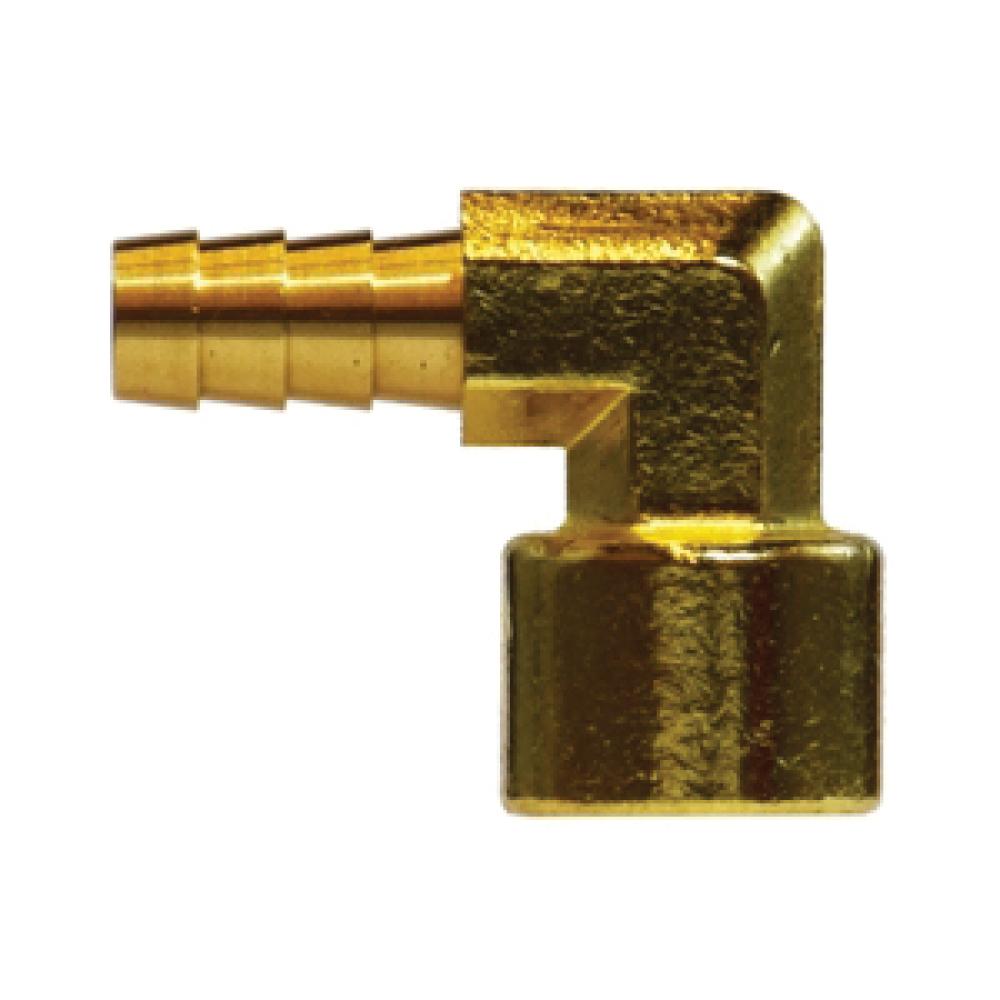

90 Deg Female Hose Barb Elbow in brass. 10 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: 90-deg Elbow
Connection Type: HB|FPT
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: 90 Deg Female Hose Barb Elbow
Product line: Hose Barb
Stocked part numbers: 10
Part numbers & options
Part #
Size
Pack quantities
32401
1/4" Hose Barb × 1/8" Female NPT
Bag 25, Case 1000
32402
1/4" Hose Barb × 1/4" Female NPT
Bag 50, Case 500
32403
3/8" Hose Barb × 1/8" Female NPT
Bag 25, Case 600
32404
3/8" Hose Barb × 1/4" Female NPT
Bag 25, Case 250
32405
3/8" Hose Barb × 3/8" Female NPT
Bag 30, Case 300
32406
3/8" Hose Barb × 1/2" Female NPT
Bag 25, Case 250
32407
1/2" Hose Barb × 1/4" Female NPT
Bag 25, Case 1200
32409
3/4" Hose Barb × 3/4" Female NPT
Bag 10, Case 80
32410
1/2" Hose Barb × 3/8" Female NPT
Bag 25, Case 250
32411
1/2" Hose Barb × 1/2" Female NPT
Bag 25, Case 250
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
