Pipe Insulation Buying Guide: Sizing, R-Value, and Which Type to Use

Pipe insulation does three separate jobs - stopping heat loss on hot lines, stopping condensation on cold lines, and protecting exposed pipe from freezing - and the type and thickness that's right for one of those jobs isn't automatically right for another.

Foam vs. fiberglass: two different materials for two different temperature ranges

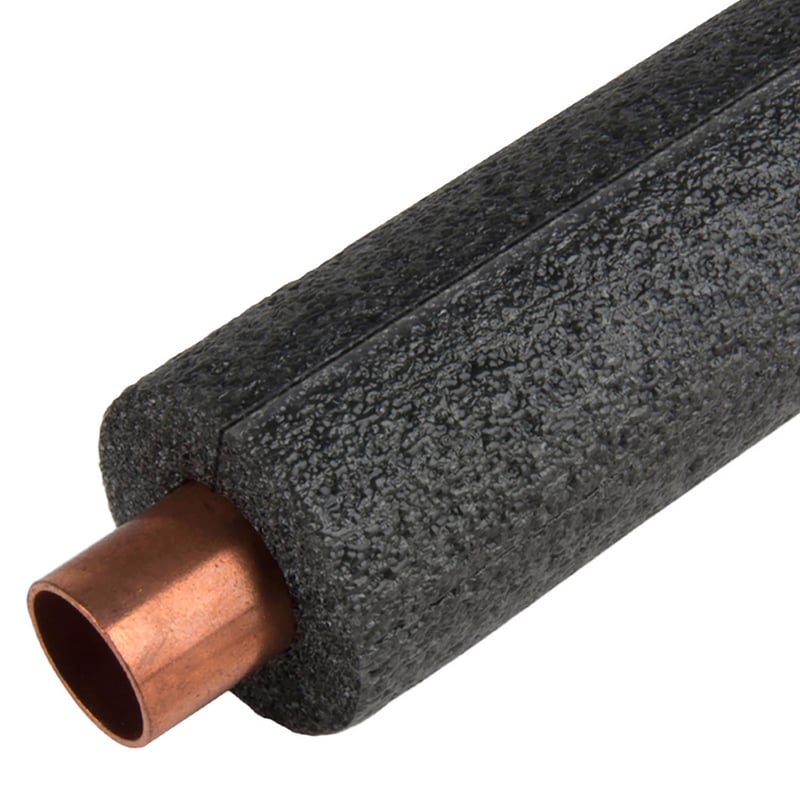

Polyethylene foam pipe insulation is a slit tube that slides directly over the pipe and closes along the seam - the standard choice for typical water supply lines, both hot and cold, in residential and light commercial work. It's fast to install and handles the temperature range most plumbing runs need. Fiberglass/foil insulation is a wrap-style product with a higher temperature rating, more commonly used on HVAC and process piping or hot lines that run beyond what foam is rated for. It installs by wrapping and taping rather than snapping over the pipe, which takes longer but handles heat foam can't.

Self-sealing vs. standard slit tube

Standard slit-tube foam insulation has an open seam that needs to be taped closed, especially at joints and elbows where it's most likely to gap. Self-sealing versions (like Armacell's TundraSeal) have an adhesive strip built into the seam, so pressing the tube closed seals it without a separate taping step - worth the small price difference on any run with a lot of joints, elbows, or valves to work around.

Sizing: match the pipe's actual outside diameter

Pipe insulation is sized to the pipe's actual outside diameter, not a generic "small/medium/large" guess - a 1/2 in. nominal pipe and a 3/4 in. nominal pipe have different real ODs, and insulation sized for the wrong one either won't close properly or will be loose enough to gap and lose its insulating value. Measure the pipe (or check the existing insulation's size if you're replacing it) before ordering.

Thickness and R-value: match to what you're actually solving for

Thicker insulation walls provide higher R-value and better performance, but how much you need depends on the goal - condensation control on a cold water line in a mild climate often needs less thickness than freeze protection on an exposed line in a cold one. Don't insulate the pipe and skip the elbows and joints - those points lose heat and collect condensation just as much as the straight runs, and they're the parts most often left bare because they're harder to wrap.

Buying to match your actual usage

• Full range of foam and fiberglass pipe insulation in Pipe Insulation
• Armacell Tundra 1/2 in. Polyethylene Foam Pipe Insulation, 6 ft.
• Armacell Tundra 3/4 in. Polyethylene Foam Pipe Insulation, 6 ft.
• Armacell TundraSeal Self-Sealing 3/4 in. Foam Pipe Insulation, 6 ft. - for runs with a lot of joints to seal
• Frost King 3 in. Fiberglass/Foil Pipe Insulation, 25 ft. - for higher-temperature runs
• Air filters, evaporative cooler parts, and other HVAC categories: Heating & Cooling (HVAC) Buying Guide

Need a diameter not listed here? Request a quote and we'll get you pricing.

Quick buying checklist

• Use foam insulation for typical hot/cold water lines, fiberglass/foil for higher-temperature HVAC or process piping
• Choose self-sealing foam on runs with a lot of joints and elbows to seal
• Size to the pipe's actual outside diameter, not a generic size guess
• Match thickness to the goal - condensation control vs. freeze protection can call for different R-values
• Insulate elbows and joints, not just the straight runs
