Flap Disc vs. Resin Fibre Disc vs. Surface Conditioning Disc: Which One for the Job

Most shops run one kind of disc on the angle grinder for everything: weld removal, blending, deburring, paint prep. Usually it is a 40-grit flap disc, because it is the one that does the most jobs adequately. The result is discs that wear out too fast on the heavy work and leave too deep a scratch on the light work.

Resin fibre discs, flap discs and surface conditioning discs are three different tools that happen to share an arbor. Here is what each one is for.

The three families at a glance

	Resin fibre disc	Flap disc	Surface conditioning disc
Construction	Grain coated on a stiff vulcanised fibre backing	Overlapping cloth flaps glued to a backing plate	Open nylon web with grain bonded through it
Job	Fast stock removal, heavy weld grinding	Grind and blend in one pass	Clean, deburr, blend scratch pattern, prep for paint
Grit range	16 to 120	36 to 120	Extra coarse to ultra fine, by colour
Needs a backing pad	Yes, always	No	Depends on mount (hub or arbor)
Removes stock	Fastest	Moderate	Almost none
Finish left	Deep, directional	Cleaner, more uniform	Fine, uniform, no gouging
Life per disc	Shortest	Longest of the three on heavy work	Long, if not overheated

Resin fibre discs: when you need metal gone

A resin fibre disc is a thin, stiff sheet of abrasive on a backing pad. It has the most exposed grain and the least cushion, so it removes stock faster per pass than anything else on a grinder. On a heavy weld bead, a 24 or 36 grit fibre disc will do in one pass what a flap disc does in three.

The trade-offs are life and finish. Once the grain is dull the disc is finished; there is no fresh layer underneath. And it cuts with a hard face, so it leaves a deep, directional scratch that needs a second step before paint.

The mistake that fools people: running a fibre disc on a worn or wrong-size backing pad. A soft, chewed-up pad lets the disc flex, and it cracks or tears at the arbor hole. People blame the disc. Match the pad diameter to the disc, replace it when the edge is gone, and use a firm pad for stock removal or a softer one for contours.

Flap discs: the one that does two jobs

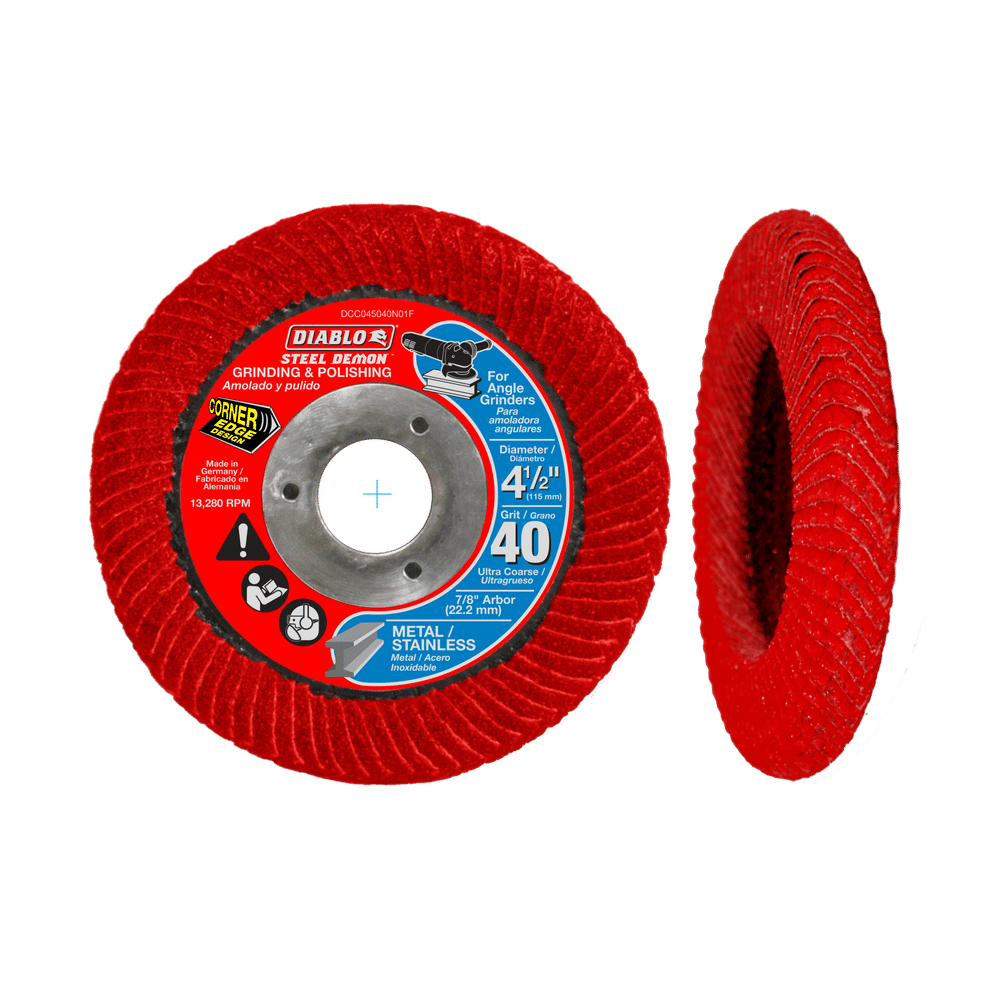

A flap disc is dozens of overlapping cloth flaps. As the leading edge of each flap wears, the flap behind it comes into contact with fresh grain. That self-renewing surface is why flap discs last longer on heavy work and why the finish they leave is more uniform than a fibre disc at the same grit. It is why the flap disc became the default. It is a good default. It is just not the right tool for every step.

Type 27 vs. Type 29. This is the choice most people get wrong, or do not know they are making.

• Type 27 is flat. It is meant to be run at a shallow angle, roughly 0 to 15 degrees to the work, on flat surfaces and for finishing. Run it steeper and you are only using the outer edge, and it wears in a ring.
• Type 29 is conical. The flaps sit at an angle so more of the disc face is in contact when the grinder is held at 15 to 25 degrees. It is more aggressive and is the one for stock removal on edges, contours and anything you cannot lay the grinder flat on.

If your flap discs are wearing to a bevel with grain left in the middle, you are using a Type 27 like a Type 29.

Grit: 36 and 40 for weld removal, 60 for weld blending, 80 and 120 for finishing before paint or when the metal shows. A 40-grit flap disc is not a substitute for a 24-grit fibre disc on heavy beads; it just wears out slower while removing less.

Mount: discs come with a 7/8" arbor hole, or with a 5/8-11 threaded hub that screws straight onto the spindle without a nut. The hub costs a little more and saves a lot of time if you are changing discs all day. Mini flap discs in 2" and 3" fit die grinders for inside corners and pipe.

Surface conditioning discs: not for removing metal

A surface conditioning disc is an open nylon web with abrasive grain bonded through it. It does not remove stock in any meaningful way. What it does is clean and blend: knock a scratch pattern down to a uniform satin, take off light rust, mill scale and old coating, deburr an edge without rounding it over, and prep a surface for paint or weld.

Grades are by colour rather than grit number:

• Brown, extra coarse: rust, scale, coating removal
• Gold, coarse: heavy cleaning and blending
• Maroon, medium: the general-purpose grade for blending and deburring
• Blue, very fine: final blend before paint, light deburr on thin material
• Grey, ultra fine: satin finish, cleaning without changing the surface

HD versions are a denser web that lasts longer on edges and under pressure.

The failure mode: running a surface conditioning disc at full grinder speed with grinder pressure. The nylon heats up, the web smears, and the disc glazes or comes apart, often on an edge. These discs want a lighter hand and are happiest on a variable-speed tool. If you are leaning on it, you have the wrong disc; go back to a flap disc. And surface conditioning refines, it does not erase: a blue disc will not take out a 36-grit scratch.

Grain: aluminium oxide, zirconia, ceramic

The disc type decides how it works; the grain decides on what.

• Aluminium oxide is the economy grain. It is fine on mild steel and for jobs where the disc gets discarded quickly anyway. It dulls rather than fractures, so it slows down as it goes.
• Zirconia fractures as it wears, exposing a new sharp edge. It lasts noticeably longer than aluminium oxide on steel and is the right default for production grinding.
• Ceramic is the sharpest and coolest cutting. It is the grain for stainless, hardened steel and anything that discolours from heat. The catch is that ceramic needs pressure to fracture. Run it lightly on thin sheet and it glazes and stops cutting; people conclude it was not worth the money. It was, on the right job.

Picking the disc

• Heavy weld bead, casting flash, cutting back a lot of material: resin fibre disc, 24 to 36 grit, on a firm backing pad.
• Moderate weld that needs to be blended flat: Type 29 flap disc, 40 or 60 grit.
• Flat surface, finishing pass, metal that shows: Type 27 flap disc, 80 or 120.
• Edge deburring, scratch blending, rust and scale, paint prep: surface conditioning, maroon for most jobs, brown for coatings, blue or grey for finish.
• Stainless or heat-sensitive material: ceramic grain, on whichever of the above the step calls for.

Most fabrication is a two-disc sequence: fibre or Type 29 flap to remove, then surface conditioning to blend. Skipping the second step and finishing with a fine flap disc works, but it takes longer and uses more disc.

Where Supply Tie fits

Our metal abrasives are Gemtex. The flap disc range runs from 2" and 3" minis up to 7", in Type 27 and Type 29, 36 to 120 grit, with 7/8" arbor and 5/8-11 hub versions across the GEMFLEX line and ceramic and ceramic/zirconia versions. Boxes of five.

Resin fibre discs go from 4" to 9" in 16 through 120 grit, in aluminium oxide, zirconia, 100% zirconia, ceramic blends and 100% ceramic. Surface conditioning discs cover grey through brown in 4-1/2" to 7", with HD grades and both hub and arbor mounts.

Woodworking and finishing abrasives, the Uneeda sanding discs, sheets, belts and sponges, sit in the main abrasives collection. If you are choosing grit rather than disc type, the grit chart covers that.

If you are not sure which sequence your job wants, tell us the material, the thickness and what the surface has to look like when you are done, and we will tell you what to run.
