Corrugated Box Buying Guide: ECT vs. Mullen, Flutes, and How to Size a Box

A corrugated box is the packaging item everyone assumes they already understand, and it is the one that gets over-specified more than anything else in the catalog. The money goes out in two places: buying a stronger board than the load needs, and buying a box whose outside dimensions cost more in freight than the box itself costs to make.

Here is what actually drives the decision, in roughly the order a buyer runs into it.

ECT vs. Mullen — the spec you should be asking for

Every corrugated box carries a box maker's certificate stamped on a bottom flap, and it rates the board one of two ways. They do not measure the same thing, and picking the wrong one is the most common specification error in corrugated.

Mullen, or burst test, measures how much pressure it takes to rupture the face of the board, in pounds per square inch. It is a puncture and rough-handling number. It tells you how well the board survives being dropped, dragged and hit. It says almost nothing about stacking.

Edge Crush Test, or ECT, measures how much force a vertical edge of the board carries before it crushes, in pounds per inch of width. It is a stacking number. Since most boxes in a warehouse fail by being crushed from above rather than punctured from the side, ECT is the more useful spec for the majority of shipping and storage work.

Which to ask for: ECT for palletized product, warehouse storage, anything stacked, and anything where you are trying to take weight and cost out of the board. Mullen for heavy, dense, sharp or awkward contents, for single-parcel shipping that gets handled hard, and where a customer specification or a carrier tariff explicitly calls for a burst number.

ECT board is generally lighter for equivalent stacking performance, which is why most packaging has moved that direction. That same lightness is why an ECT board substituted into a rough-handling application sometimes disappoints.

The commonly cited equivalents

These are the substitution figures the carrier rules have long used. Treat them as a starting point for conversation, not as interchangeable specs — a 32 ECT board and a 200# Mullen board are not the same board and do not fail the same way.

Construction	Mullen	Approx. ECT	Commonly cited max gross weight
Single wall	200#	32	65 lb
Single wall	275#	44	95 lb
Single wall	350#	55	120 lb
Double wall	275#	48	95 lb
Double wall	500#	61	160 lb
Triple wall	700#	67	240 lb
Triple wall	900#	80	300 lb

The mistake: reading the max gross weight column as a stacking rating. It is a limit for what goes inside one box, not for what you can put on top of it. A 32 ECT box holding 20 lb can still be crushed by the four boxes stacked above it, especially after a week in a humid warehouse.

Single wall vs. double wall vs. triple wall

Single wall is one fluted layer between two liners. It covers the large majority of shipping and it is what you should be defaulting to unless you have a reason not to.

Double wall is two fluted layers and three liners, usually a combination of flute sizes. It buys stacking strength and puncture resistance. It belongs on heavy contents, tall stacks, long storage, export, and anything that gets handled repeatedly or reused.

Triple wall is three fluted layers. It is a wooden-crate substitute — machinery, bulk bins, very heavy or very large single items. It is expensive and bulky and rarely the right answer for anything that would fit on a standard pallet in quantity.

The mistake: stepping up to double wall to solve a crushing problem caused by pallet overhang or a humid warehouse. Board loses a large fraction of its stacking strength in sustained high humidity, and a box whose corners hang past the pallet edge loses strength regardless of what it is made of. Fix the pallet pattern and the storage conditions before you buy heavier board across the whole program.

Flute grades and what each one is for

The flute is the wavy middle layer. Flute letters are historical rather than sequential, so the ordering is not intuitive: from thickest to thinnest it runs A, C, B, E, F.

Flute	Approx. thickness	What it is for
A	about 1/4"	Maximum cushioning and vertical stacking strength. Fragile contents, light but bulky items. Takes the most space flat and shipped.
C	about 3/16"	The general-purpose default. Most stock RSCs are C flute. Good compromise of stacking, cushioning and cost.
B	about 1/8"	Better flat crush resistance and a better printing surface than C. Canned goods, self-supporting contents, die-cut boxes and inner packaging.
E	about 1/16"	Thin, rigid, excellent print surface. Retail-facing mailers, small product boxes, cartons that need to look finished.
F	about 1/32"	Thinnest common flute. Small retail packaging where board thickness would be intrusive and print quality matters most.

Double wall boards are named by their combination — BC and EB are the two you will see most often. BC gives the stacking strength of C with the crush resistance and print surface of B. EB gives a thin, strong, printable board for retail shipping.

Where it matters in practice: if you are printing on the box, flute choice changes what the print looks like. Coarse flutes show through as washboarding. If the box has graphics that matter, ask for E or B, or ask about a litho-laminated face.

Box styles

RSC (regular slotted container) is the standard shipping box. All flaps are the same depth and the outer flaps meet in the middle. It uses the least board for a given volume, which is why it is the cheapest style and the default. Buy this unless the contents make it wrong.

FOL (full overlap) has outer flaps that fully overlap, giving a doubled top and bottom. Use it for heavy contents or where the box gets dropped on its ends.

HSC (half slotted container) is an RSC with no top flaps — a tray with walls. Used as a base under a telescoping lid, or as a bin.

Die-cut covers everything cut on a die rather than slotted on a standard machine: one-piece folders, roll-end tuck mailers, trays, boxes with locking tabs, boxes with built-in inserts. A die-cut box can be sized exactly to the product, assembles without tape, and presents better. It costs more per unit at low volume and requires a die, which is a one-time charge.

Telescoping is two pieces — a base and a separate lid that slides over it. Full telescope design (FTD), where the lid covers the entire base, adds substantial stacking strength because the walls are doubled. Partial telescope is a shallower lid. Telescoping is how you ship long, heavy, awkward or over-length items that would need an impractically large one-piece box, and it lets you adjust height by adjusting how far the lid seats.

Bliss boxes are three pieces — a body and two end panels — and are common for produce and heavy unitized loads because the construction is very strong for the board used.

How to measure a box

This is where quotes go wrong most often, and it is the easiest thing to get right.

• Corrugated is always specified in inside dimensions. The box has to hold the product, so the inside is what is guaranteed. Outside dimensions are what you need for freight and pallet math, and they are larger by roughly the board thickness on each side — noticeable on double and triple wall.
• The order is always length × width × depth. Length is the longer of the two dimensions of the open face. Width is the shorter one. Depth is the distance from the open face down to the bottom. A box written 12 × 9 × 6 is not the same box as 12 × 6 × 9.
• Measure with the box open, from the inside. Measuring the outside of a sample and ordering those numbers is how you end up with a box the product does not fit in.
• Allow clearance. Add enough that the product goes in without forcing it, plus whatever void fill or cushioning you are using on each side. Do not add more than that — see the freight section.

If you are matching an existing box, the fastest reliable method is to take a used one, cut it flat, and measure the panels. Or read the numbers printed on the manufacturer's joint. Do not eyeball it and do not guess from the outside.

Stock vs. custom, and where the crossover actually sits

Stock boxes exist in a large range of sizes, ship quickly, and have no tooling cost. Custom boxes are made to your exact inside dimensions, in your board grade, with your print, and they require a die or print plates and a minimum run quantity.

The crossover is not really a fixed number, and anyone who quotes you one without knowing your freight profile is guessing. Run it this way:

1. Find the per-box price difference between the stock box you are using now and a custom box at the volume you actually buy in a year.
2. Add the freight difference. If the custom box is smaller, calculate the dimensional weight saving per shipment and multiply by annual shipments. On parcel volume this number is frequently larger than the box price difference.
3. Add the void fill you stop buying, plus the labor of putting it in.
4. Subtract the one-time die and plate charges, amortized over the first run.
5. Check whether the minimum run is more inventory than you want to hold and whether you have the floor space for it.

Ask for the die charge, the plate charge per color, the minimum order quantity and the run quantity price breaks as four separate numbers. A plant will give you all four. If you only get a single per-box price, you cannot do the math above.

The usual honest answer: if you ship a lot of one thing and your current box is visibly too big for it, custom pays back faster than people expect. If you ship a wide variety in low volume, standardizing on three or four stock sizes beats both.

The freight and cube mistakes

• Dimensional weight. Parcel carriers bill on cubic size when it exceeds actual weight. A box two inches oversized in each direction can move a shipment into a higher billable weight on every single unit. This is the most expensive box mistake there is, and it is invisible until you look at the carrier invoice rather than the box invoice.
• Pallet overhang. A box that hangs past the pallet edge loses a large share of its stacking strength, because the corners carry the load and the corners are unsupported. It also gets snagged and crushed in handling, and some receivers reject overhanging loads outright.
• Pallet pattern. Your box footprint should tile cleanly on a 48" × 40" pallet. A box that is an inch too wide to fit four across wastes a full column of pallet space on every load you ship, forever. Check the pattern before you approve a custom size, not after.
• Trailer and container cube. Box height determines how many layers fit under the trailer ceiling. Shaving an inch off a box height sometimes adds an entire layer per pallet.
• Ordering outside dimensions. Covered above, but it belongs here too, because the freight math you did on the outside dimensions is wrong if you then order those numbers as inside dimensions.

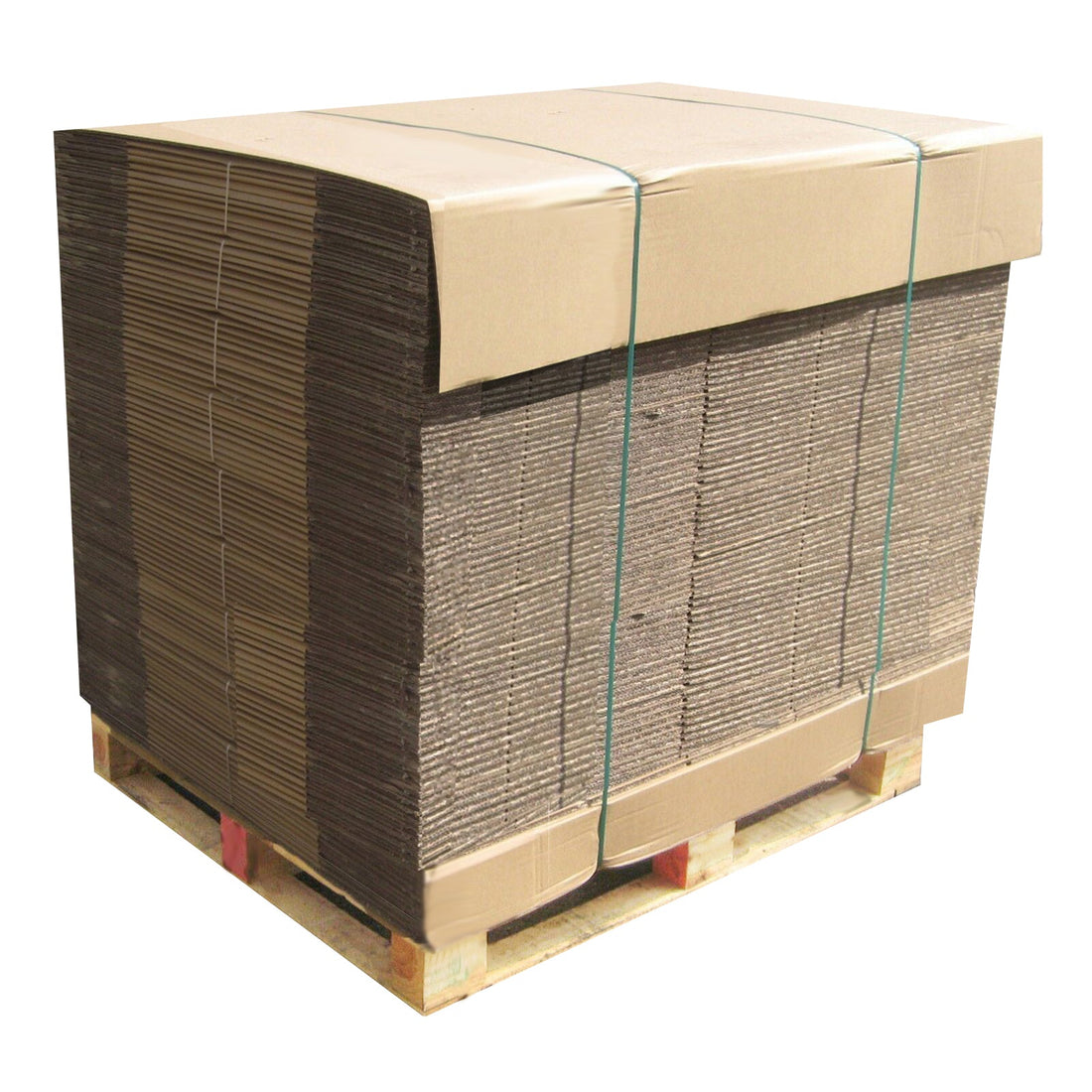

• Ignoring the flat-pack cube of the boxes themselves. Boxes ship flat, but A flute and triple wall take real space. If you are ordering a truckload, ask how many bundles are on a pallet and how many pallets are on the truck before you commit to a board grade.

Void fill and edge protection — where hexacomb fits

A right-sized box removes most of the need for void fill, which is the cheapest way to solve the problem. Where you still need to fill space, brace a load or protect an edge, honeycomb kraft is worth knowing about.

Hexacomb is paper expanded into a honeycomb core, faced or unfaced. It is rigid, strong in compression for its weight, recyclable in the paper stream, and it comes as blocks, boards, layer pads, edge protectors and corner posts. Compared with foam it disposes cleanly and does not have the storage footprint of expanded plastics. Compared with loose fill it actually braces the product instead of just occupying space, which matters on anything heavy enough to shift.

It is the usual answer for bracing appliances and furniture in a carton, protecting the edges of panels and doors, building layer separation on a pallet, and replacing wood blocking where weight is a concern.

The hexacomb request-a-quote page takes the dimensions and the application directly.

What to have ready when you ask for a box quote

• Inside dimensions, length × width × depth, or the product dimensions and weight if you want us to size it.
• Board grade if you know it, or the weight and fragility of the contents if you do not.
• Style — RSC, die-cut, telescoping, tray.
• Annual quantity and how you want it released. A quantity you take in four releases prices differently from one you take at once.
• Printing: number of colors, or none.
• How it ships and how it is stored — parcel, LTL, palletized, stack height, how long it sits.
• Anything regulated: food contact, export, ISPM-15 concerns on the pallet, customer-mandated specs.
