2501-LLL Series – MJIC to Male Pipe Extra Extra Long Elbow in steel. 9 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 90-deg Elbow
Connection Type: MJIC|MPT
Operating Temperature: 375 °F
Series: 2501-LLL
Configuration: 2501-LLL Series – MJIC to Male Pipe Extra Extra Long Elbow
Product line: Steel JIC Adapters
Stocked part numbers: 9
Part numbers & options
Part #
Size
Pack quantities

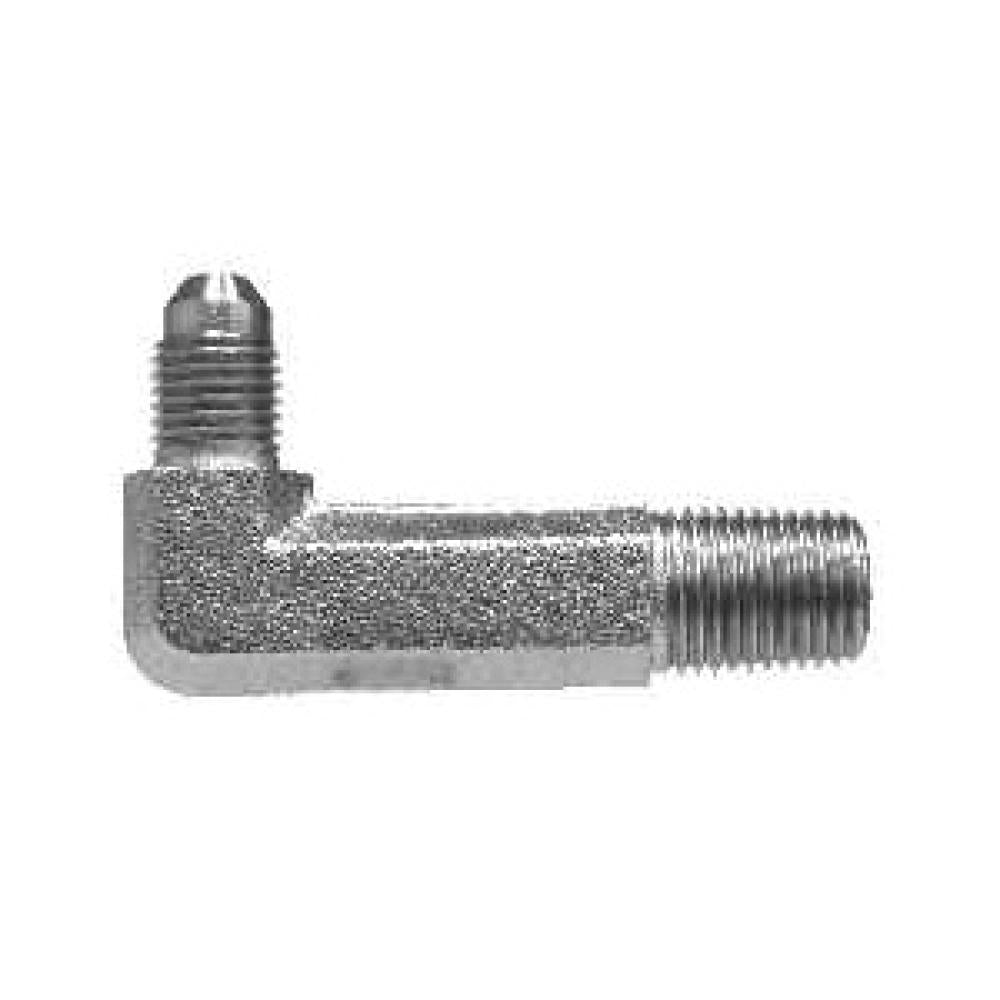

2501-LLL-05-02
5/16" Male JIC × 1/8" Male NPT
—
2501LLL108
7/8" Male JIC × 1/2" Male NPT
—
2501LLL1212
3/4" Male JIC × 3/4" Male NPT
Box 46, Case 46
2501LLL42
1/4" Male JIC × 1/8" Male NPT
Case 430
2501LLL44
7/16" Male JIC × 1/4" Male NPT
—
2501LLL64
9/16" Male JIC × 1/4" Male NPT
—
2501LLL66
9/16" Male JIC × 3/8" Male NPT
—
2501LLL86
3/4" Male JIC × 3/8" Male NPT
—
2501LLL88
3/4" Male JIC × 1/2" Male NPT
Box 65, Case 65
