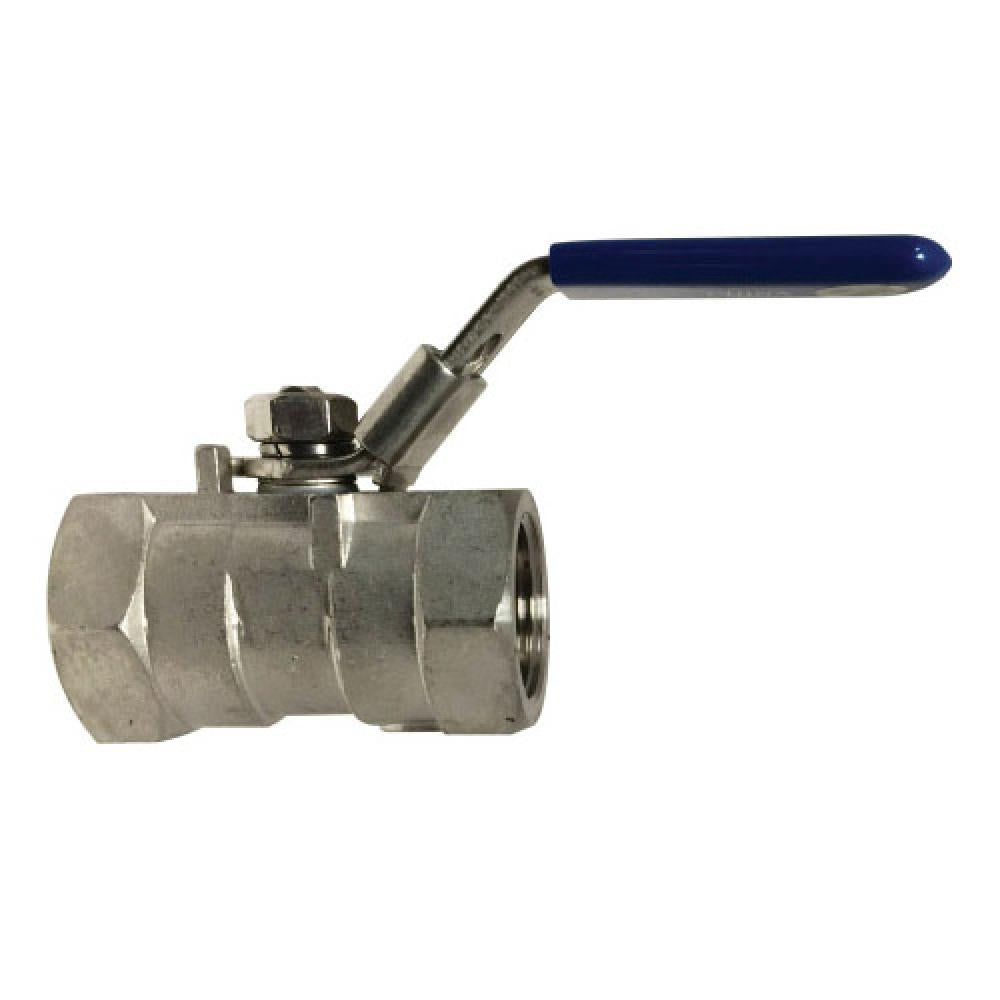

One-Piece Standard Port Ball Valve in 316 stainless steel. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Body Material: 316 Stainless Steel
Connection Type: FPT x FPT
Pressure Rating: 1000 psi WOG
Temperature Rating: -14 to 300 °F
Seal Material: PTFE
Operator Type: 1/4-Turn Locking Handle
Configuration: One-Piece Standard Port Ball Valve
Product line: Stainless Steel Ball Valves
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
949101
1/4"
Case 150
949102
3/8"
Case 150
949103
1/2"
Case 100
949104
3/4"
Case 70
949105
1"
Case 50
949106
1-1/4"
Case 30
949107
1-1/2"
Case 25
949108
2"
Case 15
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
