MAF/USA Flare x MIP Elbows in brass. 15 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: 90 deg Elbow
Connection Type: Male SAE Flared|MPT
Temperature Rating: -65 to 250 deg F
Configuration: MAF/USA Flare x MIP Elbows
Product line: MAF/USA FLARE
Stocked part numbers: 15
Part numbers & options
Part #
Size
Pack quantities

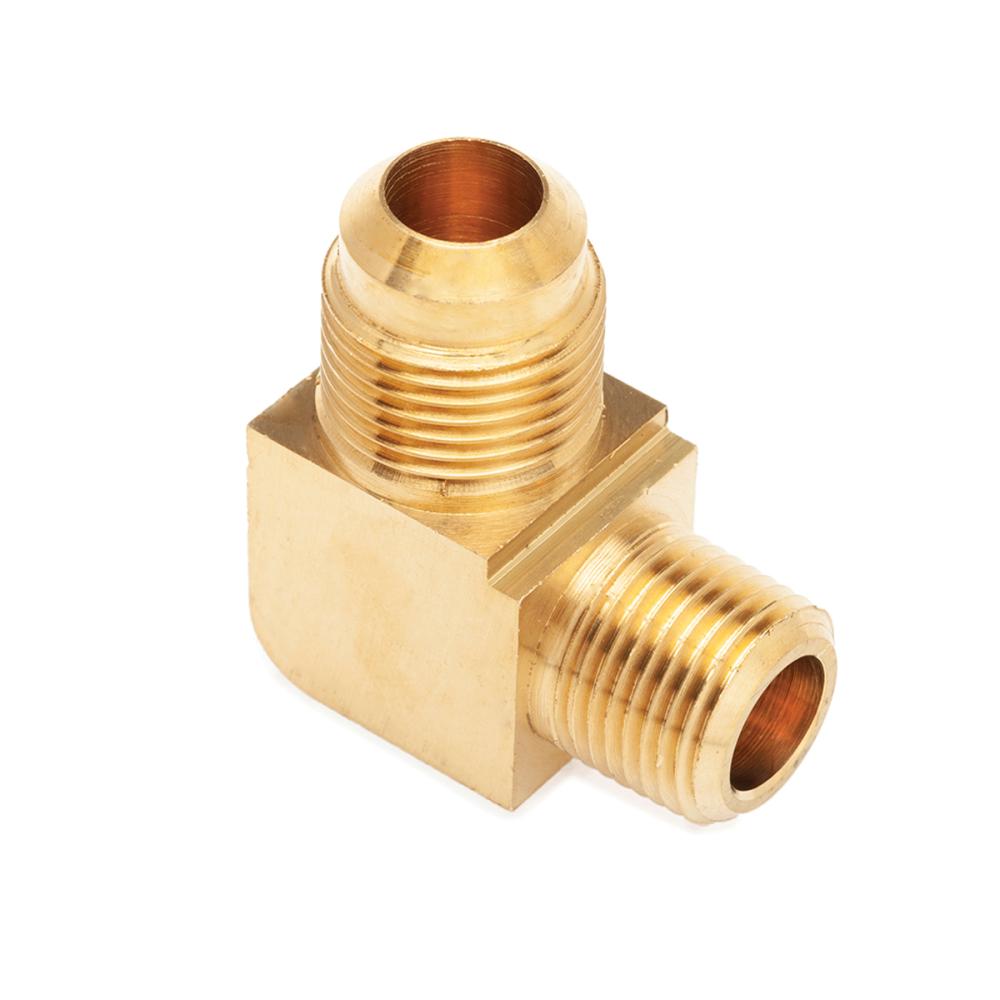

249X10X6
5/8" SAE 45 deg Male Flared × 3/8" MPT
Box 105
249X12X12
3/4" SAE 45 deg Male Flared × 3/4" MPT
Box 64
249X2
1/8" SAE 45 deg Male Flared × 1/8" MPT
—
249X3
3/16" SAE 45 deg Male Flared × 1/8" MPT
Box 900
249X4
1/4" SAE 45 deg Male Flared × 1/8" MPT
Box 800
249X4X4
1/4" SAE 45 deg Male Flared × 1/4" MPT
Box 475
249X4X6
1/4" SAE 45 deg Male Flared × 3/8" MPT
—
249X5X4
5/16" SAE 45 deg Male Flared × 1/4" MPT
Box 400
249X6
3/8" SAE 45 deg Male Flared × 1/4" MPT
Box 300
249X6X6
3/8" SAE 45 deg Male Flared × 3/8" MPT
—
249X6X8
3/8" SAE 45 deg Male Flared × 1/2" MPT
Box 130
249X7
7/16" SAE 45 deg Male Flared × 1/4" MPT
—
249X8
1/2" SAE 45 deg Male Flared × 3/8" MPT
Box 150
249X8X4
1/2" SAE 45 deg Male Flared × 1/4" MPT
Box 132
249X8X8
1/2" SAE 45 deg Male Flared × 1/2" MPT
Box 100
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
