Save-ty Yellow Lite Duty Guard Rail
Lighter-gauge drop-in steel guardrail with 42" posts. Quoted by post type and rail length.
| Material | 14-gage Steel |
|---|---|
| Finish | Powder Coated Safety Yellow |
| Post Height | 42" |
| Posts | 4" posts mounted on 8" x 8" x 1/2" base plates |
| Rail Lengths | 2', 3', 4', 5', 6', 7', 8', 9', 10' |

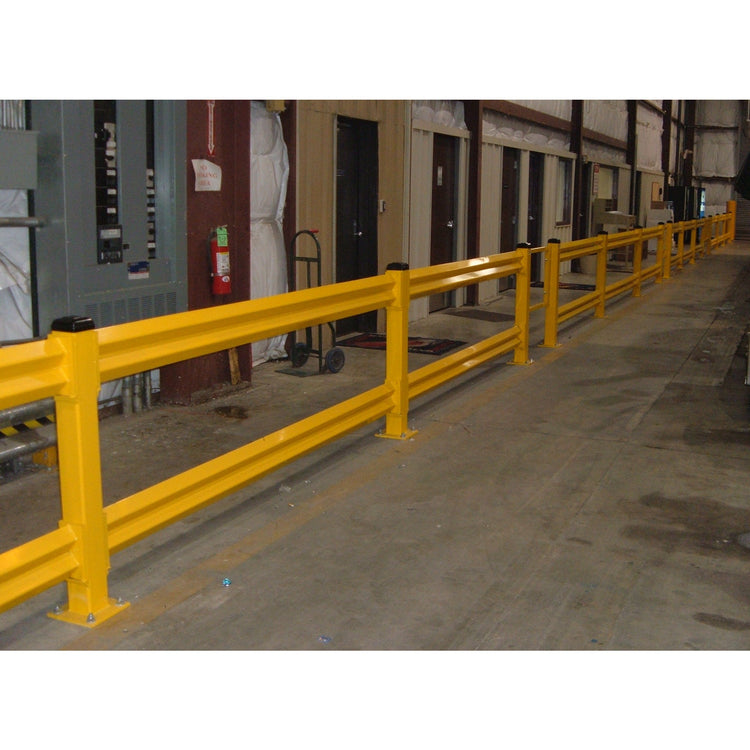

The lighter-gauge version of the Save-ty Yellow "Stand Guard" guardrail, meant for areas that see pallet jacks, walkie stackers and carts rather than full-size forklifts. Rails drop into sleeves welded to 42" posts and can be lifted out individually when a section needs to change. Choose posts and rail lengths on the quote form, or give us the part numbers from the table below.
Features
- Modular lift-out/drop-in rail system
- Steel rail and post construction
- High-visibility powder coated safety yellow finish
- Multiple rail lengths available with 42" tall posts
- Flexible configurations for straight runs and custom layouts
- Simplified installation and maintenance
- American-made steel construction
Specifications
| Material | 14-gage Steel |
| Finish | Powder Coated Safety Yellow |
| Rails | 14-gauge high-tensile steel rails with ribbed reinforcement |
| Post Height | 42" |
| Posts | 4" posts mounted on 8" x 8" x 1/2" base plates |
| Rail Lengths | 2', 3', 4', 5', 6', 7', 8', 9', 10' |
| Rail measurement | Rail lengths measured center-to-center of posts |
| Impact rating | Rated for 6,000 lbs impact at 5 mph |
| Hardware | No rail bolts or bracket hardware required |
| Anchors | 5/8" x 4.75" anchors available for installation |
| Applications | Areas of Traffic for: Electric Pallet Trucks, Powered Stackers, Manual Pallet Trucks, Push Carts, High-Lift Scissor Trucks |
Part numbers
| Part # | Type | Dimensions | Baseplate |
|---|---|---|---|
| 4-LITE-END-42-DBL | End Post | 4" x 4" x 42" | 8" x 8" x 1/2" |
| 4-LITE-INLINE-42-DBL | Inline Post | 4" x 4" x 42" | 8" x 8" x 1/2" |
| 4-LITE-CORNER-42-DBL | Corner Post | 4" x 4" x 42" | 8" x 8" x 1/2" |
| 4-LITE-RAIL | Lite Guardrail | 4' Length | |
| 5-LITE-RAIL | Lite Guardrail | 5' Length | |
| 6-LITE-RAIL | Lite Guardrail | 6' Length | |
| 7-LITE-RAIL | Lite Guardrail | 7' Length | |
| 8-LITE-RAIL | Lite Guardrail | 8' Length | |
| 9-LITE-RAIL | Lite Guardrail | 9' Length | |
| 10-LITE-RAIL | Lite Guardrail | 10' Length |
Specifications from the manufacturer. Freight quoted with your price.
