Female 45 Deg Flare Swivel in brass. 12 options stocked. Select the type you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Fitting Type: Adapter
Connection Type: HB|FFLRD
Maximum Operating Pressure: 150 psi
Operating Temperature: -40 to 160 °F
Configuration: Female 45 Deg Flare Swivel
Product line: Hose Barb
Stocked part numbers: 12
Part numbers & options
Part #
Type
Pack quantities

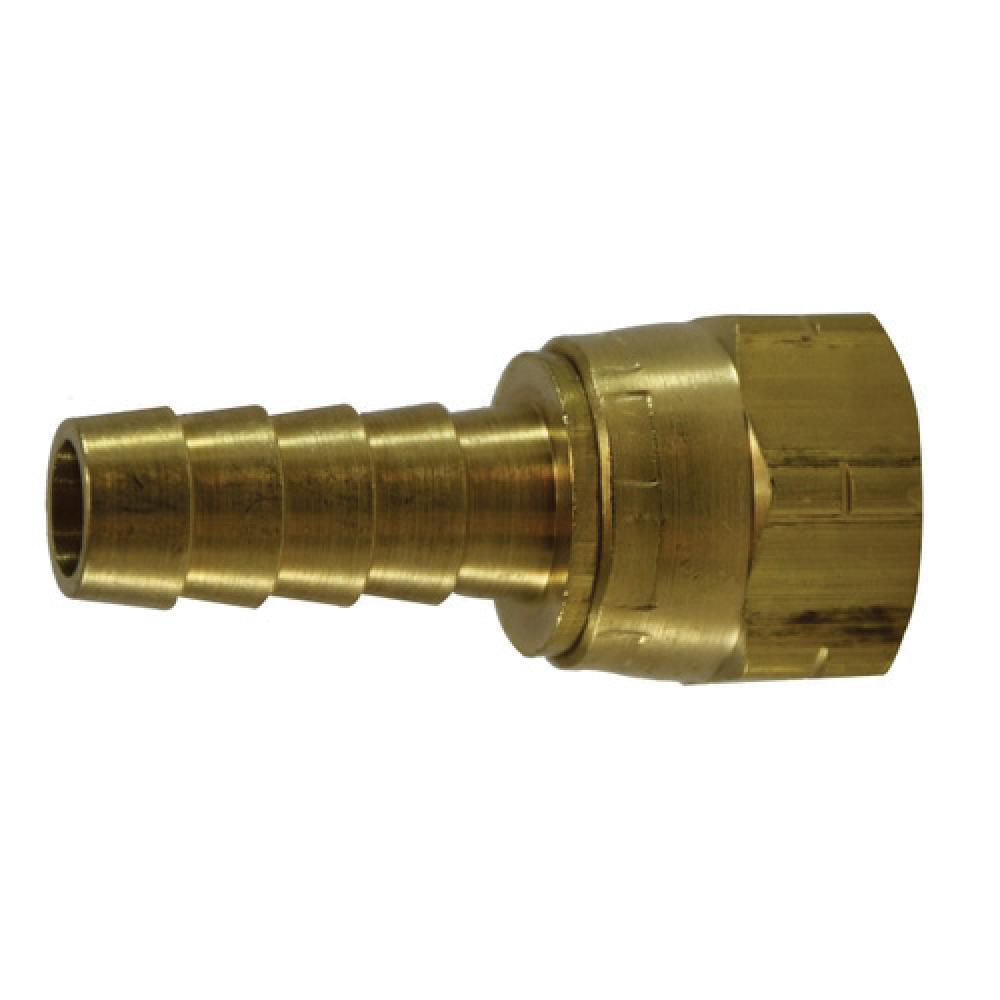

30295
3/16 Barb x 5/8-18 Female Svl 45 Fl
Bag 25, Case 700

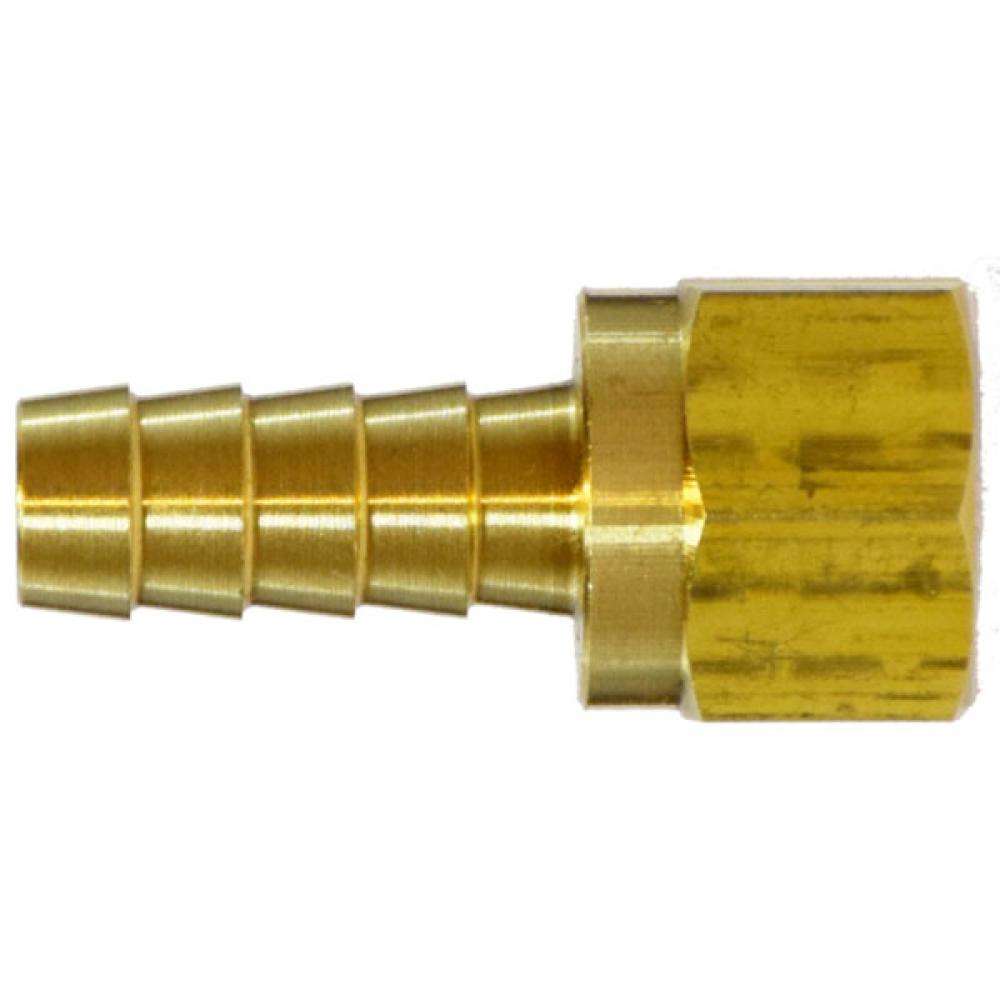

32100
1/2 x 1/2 Hb x Female Flare Swivl
Bag 25, Case 600
32101
1/4 x 1/4 Hb x Female Flare Swivl
Bag 50, Case 1000
32103
1/4 x 3/8 Hb x Female Flare Swivl
Bag 50, Case 500
32104
5/16 x 5/16 Hb x Female Flare Swivl
Case 800
32105
3/8 x 3/8 Hb x Female Flare Swivl
Bag 25, Case 1000
32105C
3/8 Barb x 3/8 SAE Crimp Style
Case 600

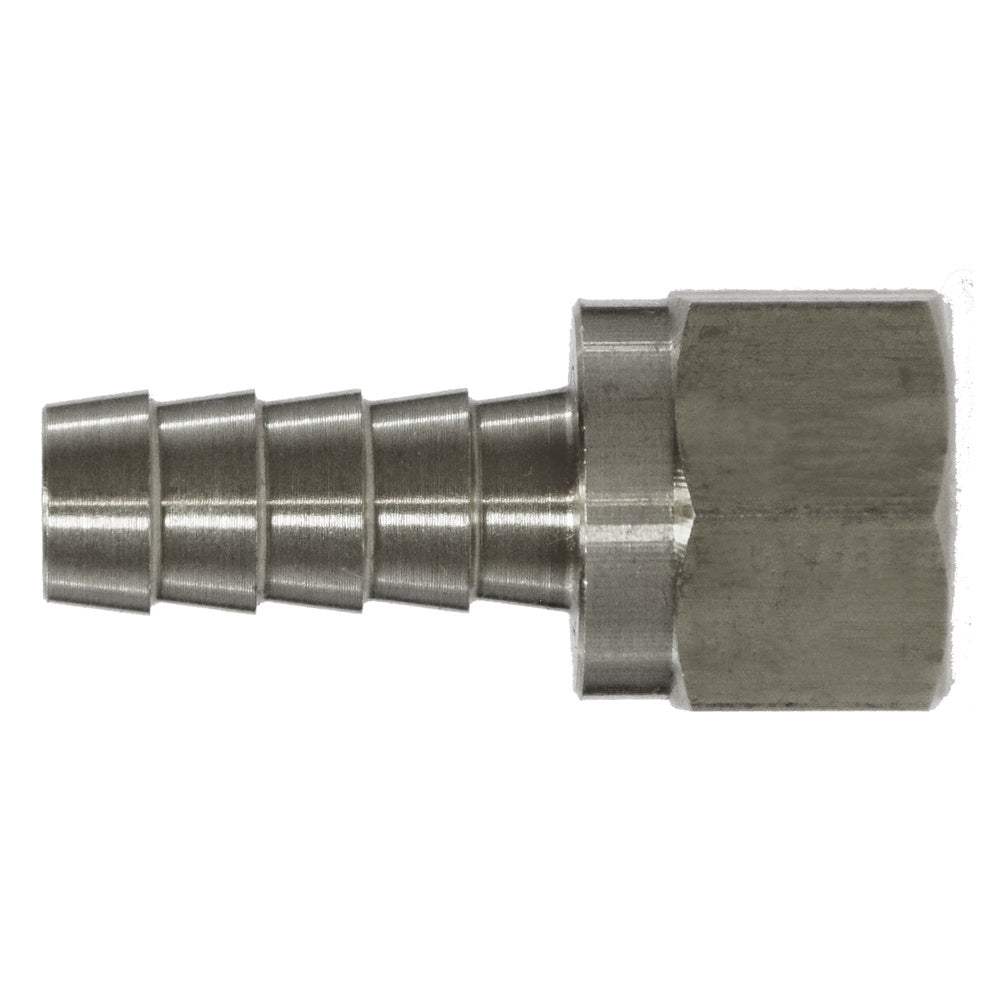

32105N
3/8 x 3/8 Hb x Fe Fl Swivel Nickel Plated
—
32106
3/8 x 1/2 Hb x Female Flare Swivl
Bag 25, Case 300
32326
3/16 x 3/16 Hb x Female Flare Swivl
—
32327
5/16 x 3/8 Hb x Female Flare Swivl
Case 500
32328
3/4 x 3/4 Hb x Female Flare Swivel
Bag 25, Case 125
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
