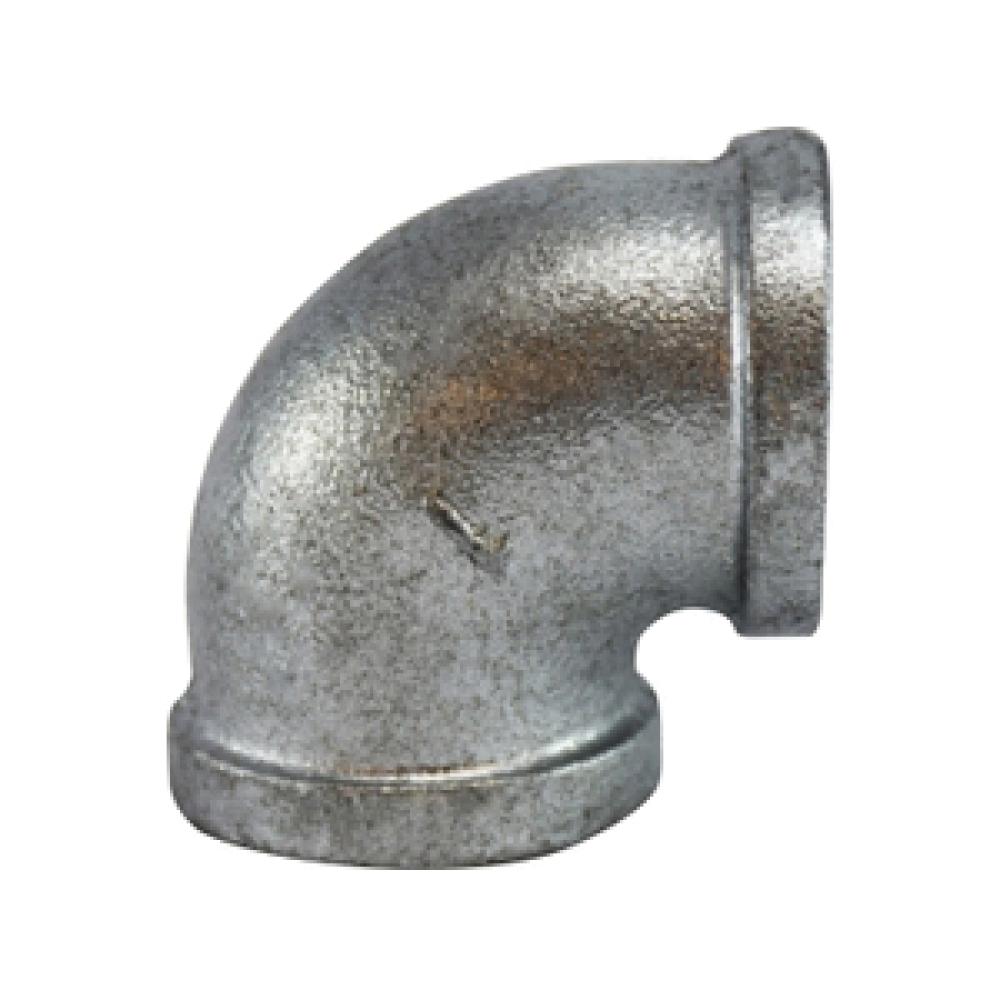

90 Degree Elbow in iron. 14 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Iron
Material Construction: Malleable Iron
Fitting Type: 90 deg Elbow
Connection Type: FPT|FPT
Temperature Rating: -20 to 350 deg F
Dimension Standards: ANSI B 16.3
Finish: Galvanized
Pressure Class: 150 lb
Configuration: 90 Degree Elbow
Product line: Galvanized 150# Malleable Fittings
Stocked part numbers: 14
Part numbers & options
Part #
Size
Pack quantities
64100
1/8" FPT × 1/8" FPT
Box 50, Case 600
64101
1/4" FPT × 1/4" FPT
Box 35, Case 420
64102
3/8" FPT × 3/8" FPT
Box 90, Case 360
64103
1/2" FPT × 1/2" FPT
Box 50, Case 200
64104
3/4" FPT × 3/4" FPT
Box 35, Case 105
64105
1" FPT × 1" FPT
Box 20, Case 60
64106
1-1/4" FPT × 1-1/4" FPT
Box 20, Case 40
64107
1-1/2" FPT × 1-1/2" FPT
Box 15, Case 30
64108
2" FPT × 2" FPT
Box 8, Case 16
64109
2-1/2" FPT × 2-1/2" FPT
Box 8, Case 12
64110
3" FPT × 3" FPT
Box 8, Case 8
64112
4" FPT × 4" FPT
Case 2
64113
5" FPT × 5" FPT
—
64114
6" FPT × 6" FPT
Case 1
