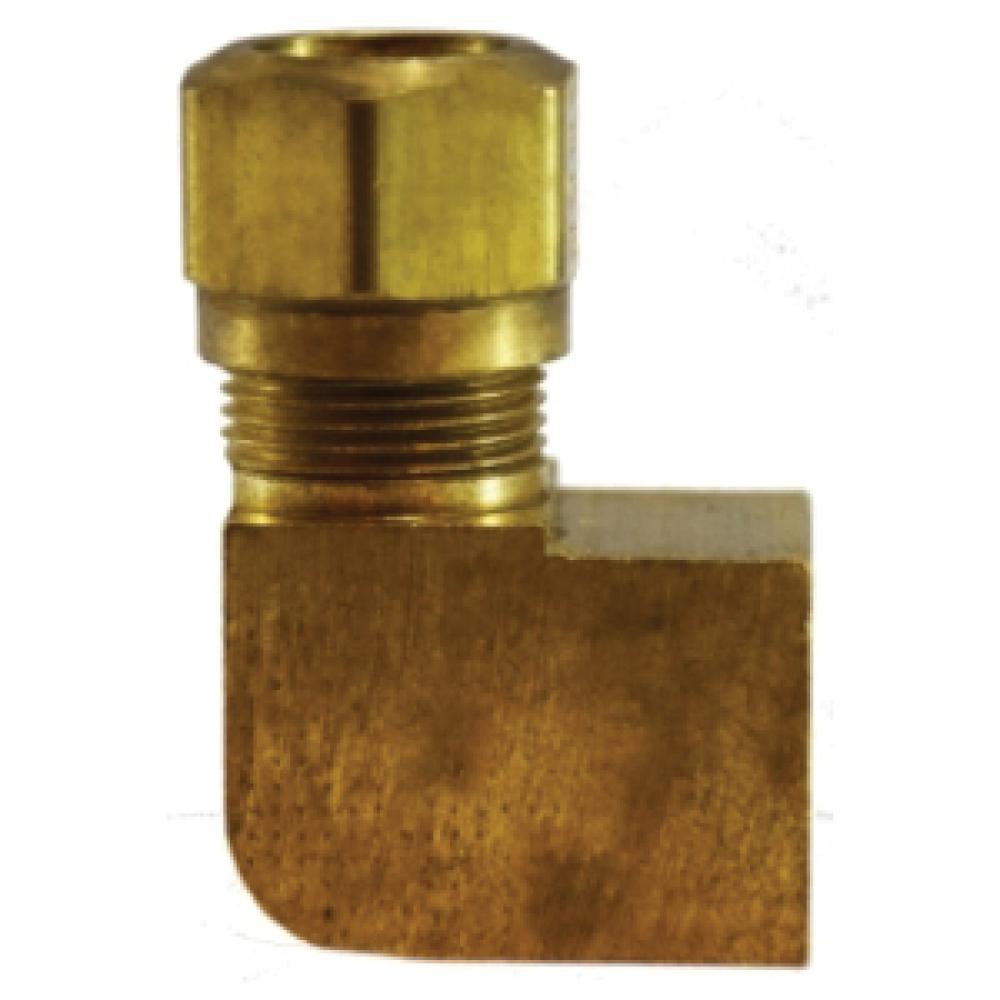

NAB Female Elbow in brass. 8 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: 90 deg Elbow
Connection Type: Tube|FNPT
Pressure Rating: 150 psi
Temperature Rating: -40 to 200 deg F
Configuration: NAB Female Elbow
Product line: D.O.T. Air Brake Nylon Tubing
Stocked part numbers: 8
Part numbers & options
Part #
Size
Pack quantities
38113
1/4" Tube OD × 1/8" Female NPT
Bag 50, Case 500
38114
1/4" Tube OD × 1/4" Female NPT
Bag 25, Box 20, Case 250
38115
3/8" Tube OD × 1/8" Female NPT
—
38116
3/8" Tube OD × 1/4" Female NPT
Bag 25, Case 250
38117
3/8" Tube OD × 3/8" Female NPT
Bag 10
38118
1/2" Tube OD × 3/8" Female NPT
—
38119
1/2" Tube OD × 1/2" Female NPT
Box 10
38120
5/8" Tube OD × 1/2" Female NPT
Bag 10, Case 100
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
