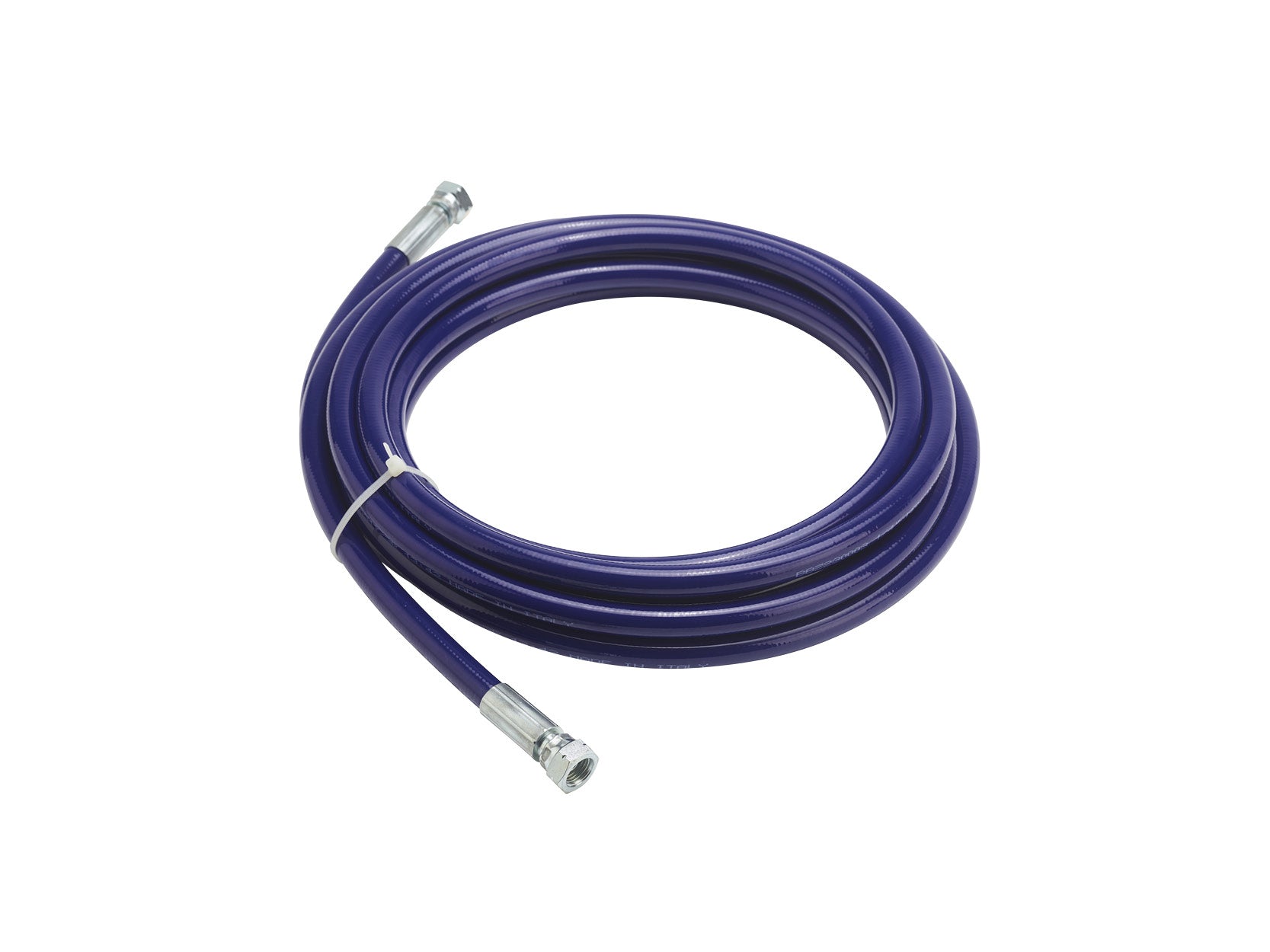

High-pressure PTFE hose with stainless steel double metal braid (AISI 304). Inner core in PTFE with double AISI 304 stainless steel reinforcement braid. Sold per linear meter — contact us for custom lengths and fittings.
Product Code
PTFE1102
Inner Diameter
9.5 mm (3/8")
Outer Diameter
14.4 mm
Max Working Pressure
285 bar
Min Bend Radius
50 mm
Weight
260 g/m
Working Temperature
-60°C to +260°C (-76°F to +500°F)
Applications: High-pressure conduction of paints, oils, air, food, and steam.
Compliance: Reg. EU 1935/2004, Reg. EU 10/2011. FDA 21 CFR 177.1550. Italian D.M. 174 for use in drinking water supply chain.
