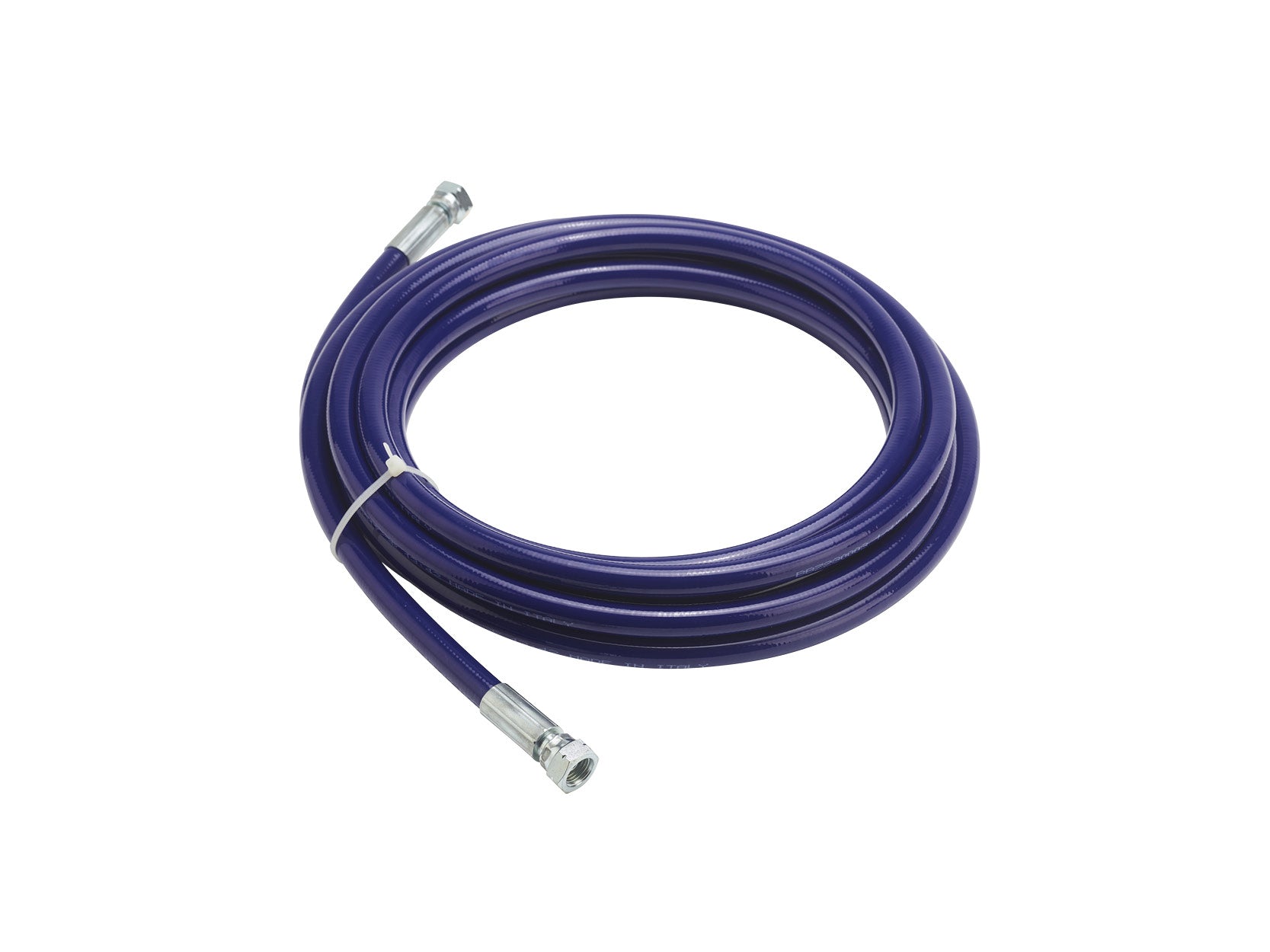

High-pressure PTFE hose with stainless steel double metal braid (AISI 304). Inner core in PTFE with double AISI 304 stainless steel reinforcement braid. Sold per linear meter — contact us for custom lengths and fittings.
Product Code
PTFE1042
Inner Diameter
4.8 mm (3/16")
Outer Diameter
9.0 mm
Max Working Pressure
365 bar
Min Bend Radius
30 mm
Weight
130 g/m
Working Temperature
-60°C to +260°C (-76°F to +500°F)
Applications: High-pressure conduction of paints, oils, air, food, and steam.
Compliance: Reg. EU 1935/2004, Reg. EU 10/2011. FDA 21 CFR 177.1550. Italian D.M. 174 for use in drinking water supply chain.
