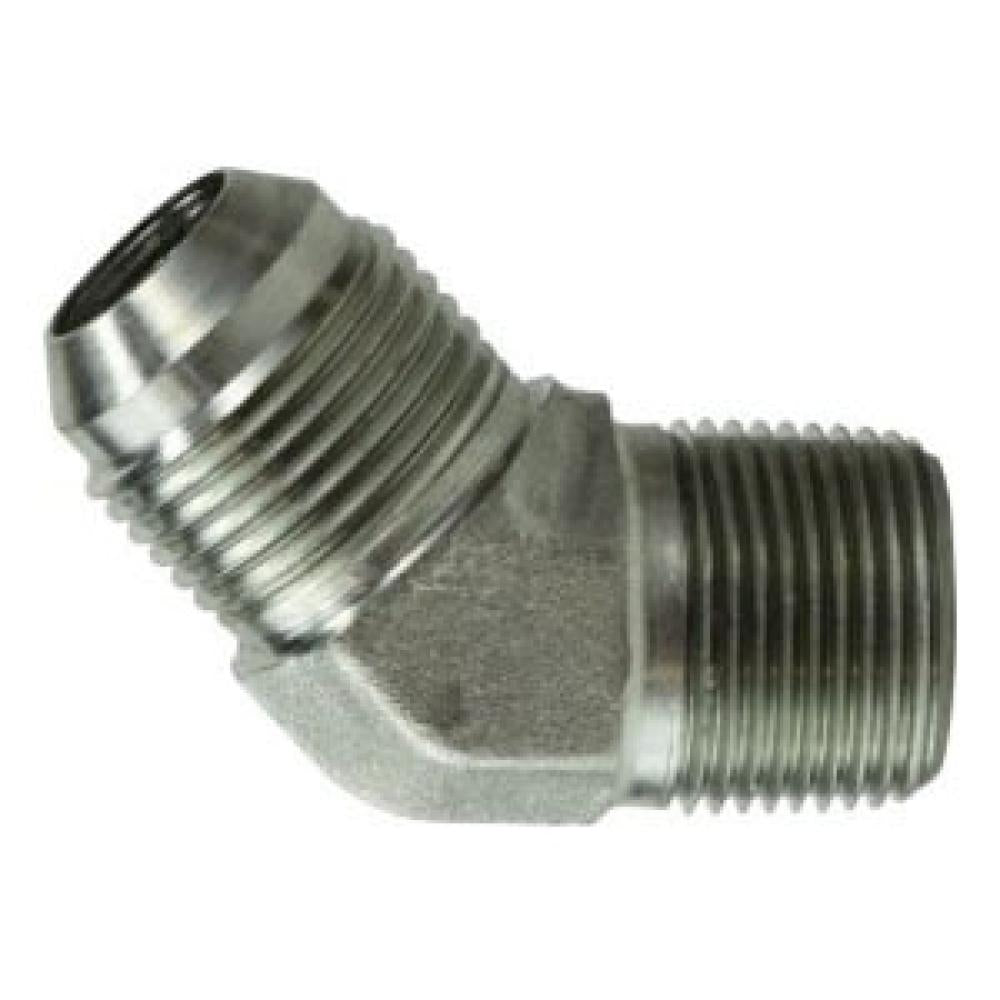

2503 Series – MJIC to Male Pipe 45-Deg Elbow in steel. 24 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Steel
Fitting Type: 45-deg Elbow
Series: 2503
Configuration: 2503 Series – MJIC to Male Pipe 45-Deg Elbow
Product line: Steel JIC Adapters
Stocked part numbers: 24
Part numbers & options
Part #
Size
Pack quantities
2503-04-08
1/4" Male JIC × 1/2" Male NPT
—
2503-20-24
1-1/4" Male JIC × 1-1/2" Male NPT
Box 25, Case 25
25031012
5/8" Male JIC × 3/4" Male NPT
Case 110
2503106
5/8" Male JIC × 3/8" Male NPT
Case 200
2503108
5/8" Male JIC × 1/2" Male NPT
Case 160
25031212
3/4" Male JIC × 3/4" Male NPT
Case 100
25031216
3/4" Male JIC × 1" Male NPT
Case 60
25031612
1" Male JIC × 3/4" Male NPT
Case 70
25031616
1" Male JIC × 1" Male NPT
Case 72
25031620
1" Male JIC × 1-1/4" Male NPT
—
25032016
1-1/4" Male JIC × 1" Male NPT
Case 25
25032020
1-1/4" Male JIC × 1-1/4" Male NPT
Case 38
250332
3/16" Male JIC × 1/8" Male NPT
Case 1100
25033232
2" Male JIC × 2" Male NPT
Case 12
250342
1/4" Male JIC × 1/8" Male NPT
—
250344
1/4" Male JIC × 1/4" Male NPT
Case 550
250354
5/16" Male JIC × 1/4" Male NPT
Case 550
2503612
3/8" Male JIC × 3/4" Male NPT
Box 140, Case 140
250364
3/8" Male JIC × 1/4" Male NPT
Case 600
250366
3/8" Male JIC × 3/8" Male NPT
Case 350
250368
3/8" Male JIC × 1/2" Male NPT
Case 245
250384
1/2" Male JIC × 1/4" Male NPT
Case 650
250386
1/2" Male JIC × 3/8" Male NPT
Case 300
250388
1/2" Male JIC × 1/2" Male NPT
Case 190
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
