NAB Female Adapter in brass. 10 options stocked. Select the size you need from the dropdown — each option is a separate stocked part number.
Specifications
Material: Brass
Material Construction: Brass
Fitting Type: Adapter
Pressure Rating: 150 psi
Temperature Rating: -40 to 200 deg F
Configuration: NAB Female Adapter
Product line: D.O.T. Air Brake Nylon Tubing
Stocked part numbers: 10
Part numbers & options
Part #
Size
Pack quantities

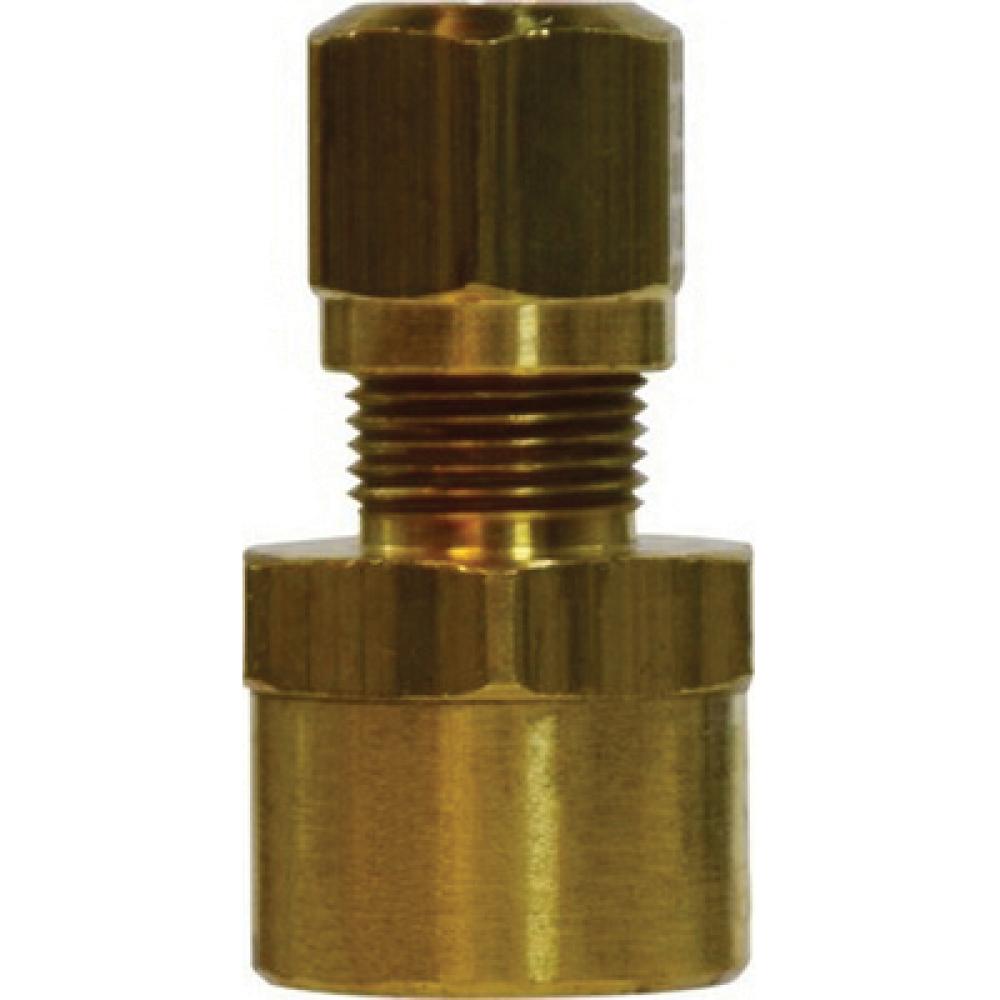

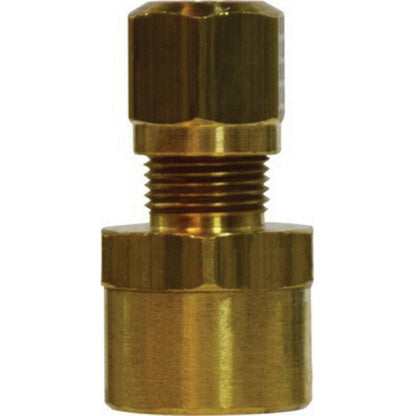

38059
3/4" Tube OD × 1/2" FPT
—

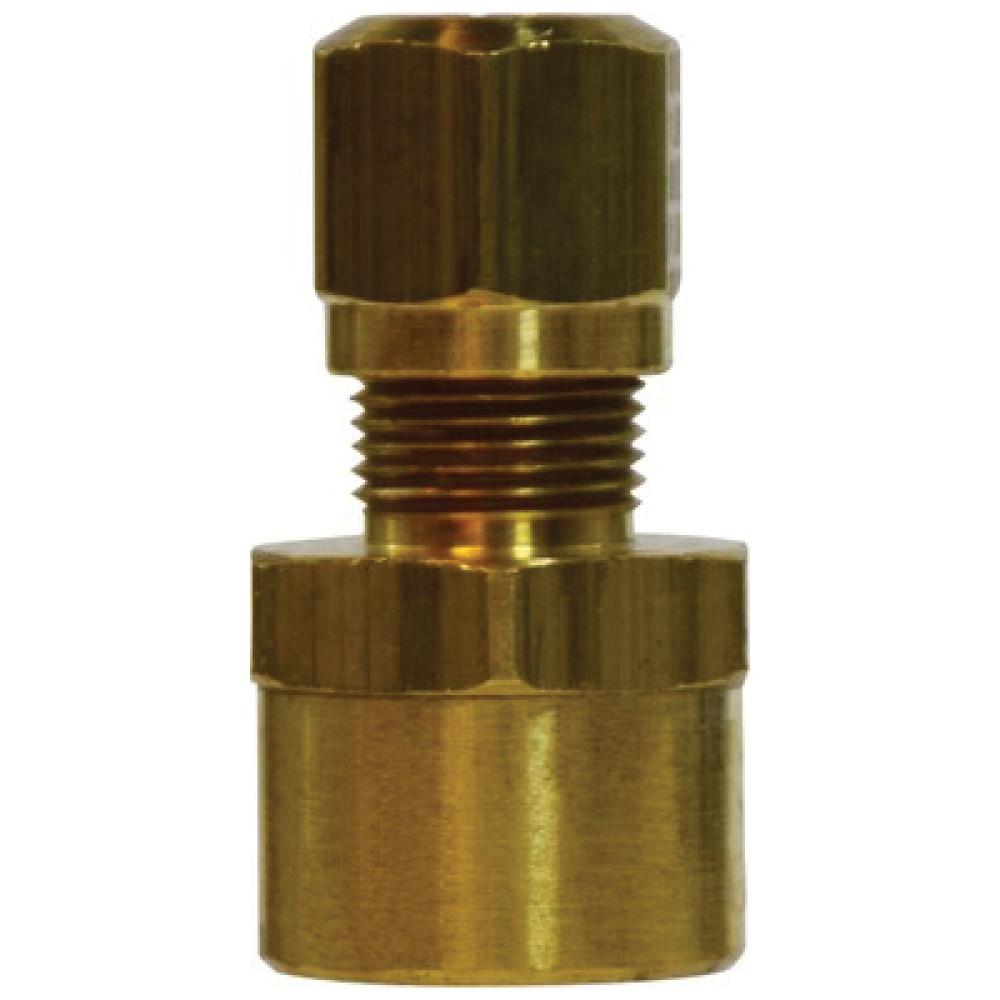

38060
1/4" Tube OD × 1/8" Female NPT
Bag 50, Case 500
38061
1/4" Tube OD × 1/4" Female NPT
Bag 50, Case 400
38062
3/8" Tube OD × 1/8" Female NPT
Bag 50, Case 500
38063
3/8" Tube OD × 1/4" Female NPT
Bag 25, Case 300
38064
3/8" Tube OD × 3/8" Female NPT
Bag 25, Case 250
38065
1/2" Tube OD × 3/8" Female NPT
Bag 10, Case 200
38066
1/2" Tube OD × 1/2" Female NPT
Bag 10, Case 100
38067
5/8" Tube OD × 3/8" Female NPT
Box 12
38068
5/8" Tube OD × 1/2" Female NPT
Bag 10, Case 100
Ships from SupplyTie Fittings & Hydraulics. Free freight on every order. $75 minimum order per shipment from this location — the cart will tell you if you are short.
